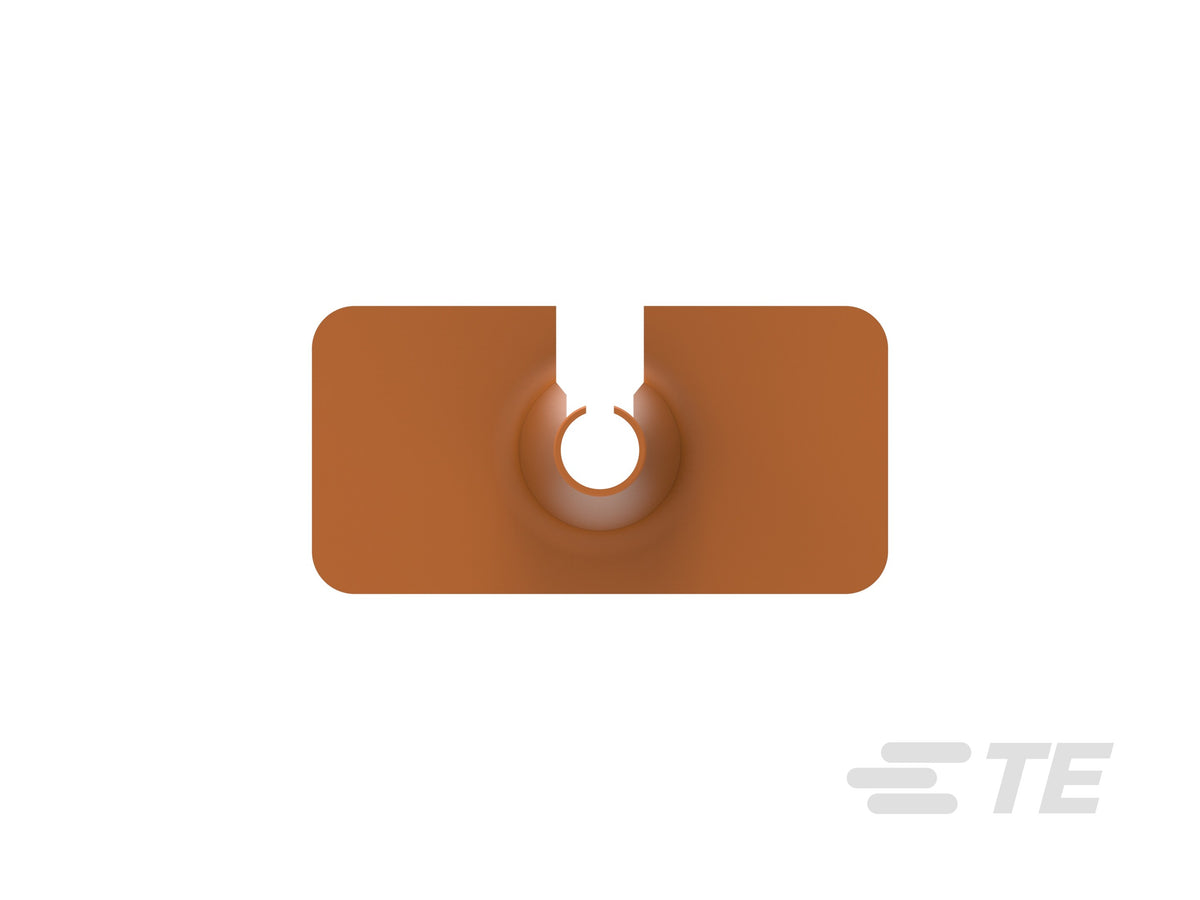

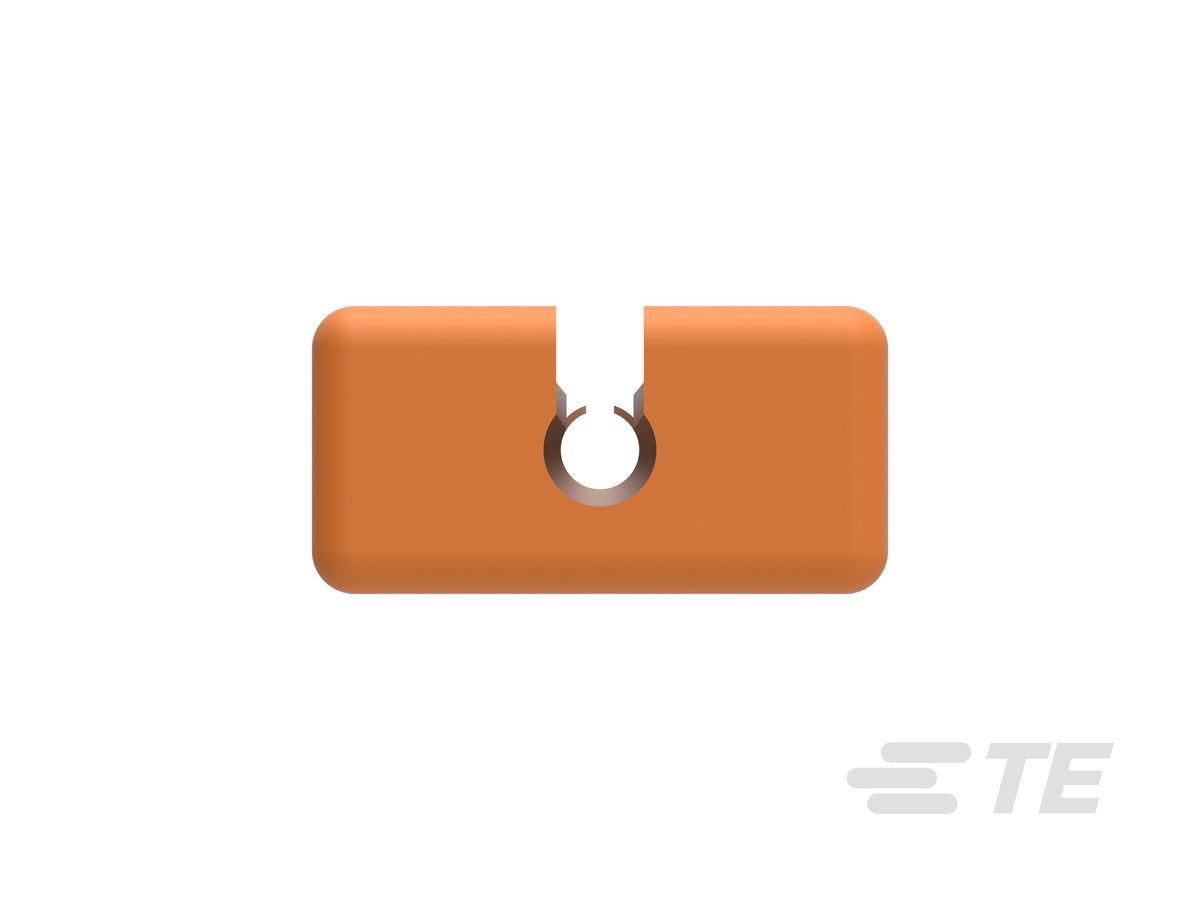

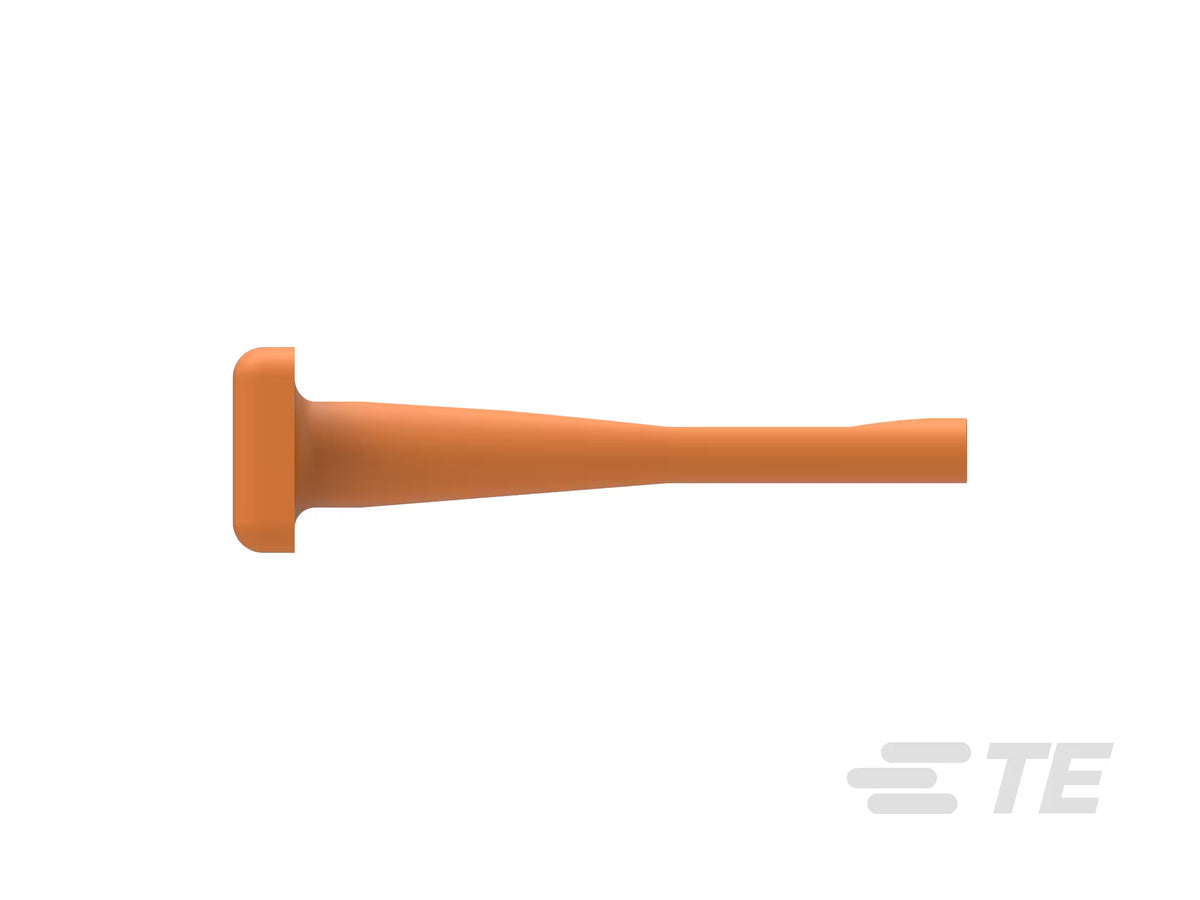

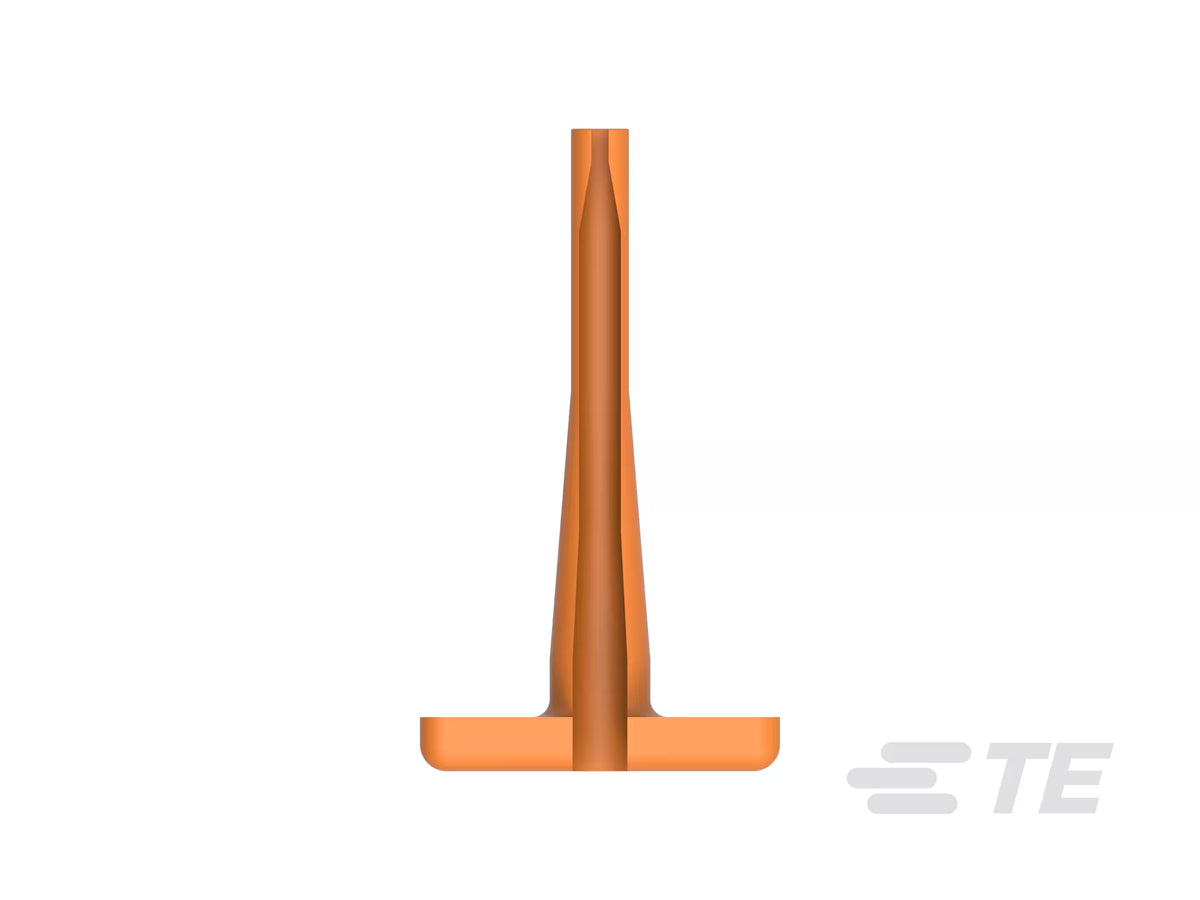

0411-337-1205 Deutsch Size 12 Contact Removal Tool - Orange

0411-337-1205 Deutsch Size 12 Contact Removal Tool is an orange contact-to-housing extraction tool for compatible Size 12 terminals. It is identified for 12-14 AWG extra-thin-wall / E-seal applications.

The tool is intended to release the contact-retention feature during repinning and repair without prying against the connector body or pulling the terminal out by the wire. It is associated with Deutsch systems including DTP, HDP, HD30, HD and DRC applications that use the corresponding Size 12 contact arrangement.

Choose 0411-337-1205 when the assembly uses a compatible Size 12 contact in the specified 12-14 AWG extra-thin-wall / E-seal configuration rather than a standard Size 12 tool application.

Typical applications include heavy-duty vehicles, agricultural equipment, construction machinery, power-distribution harnesses and industrial connector service work.

• Tool type: Contact removal / extraction tool
• Application: Contact-to-housing extraction
• Contact size: Size 12
• Wire size reference: 12-14 AWG
• Configuration: Extra thin wall / E-seal application
• Colour: Orange

Compatible connector systems

DTP Connectors, HD Series Connectors, HD30 Connectors, DRC/DRB Connectors
