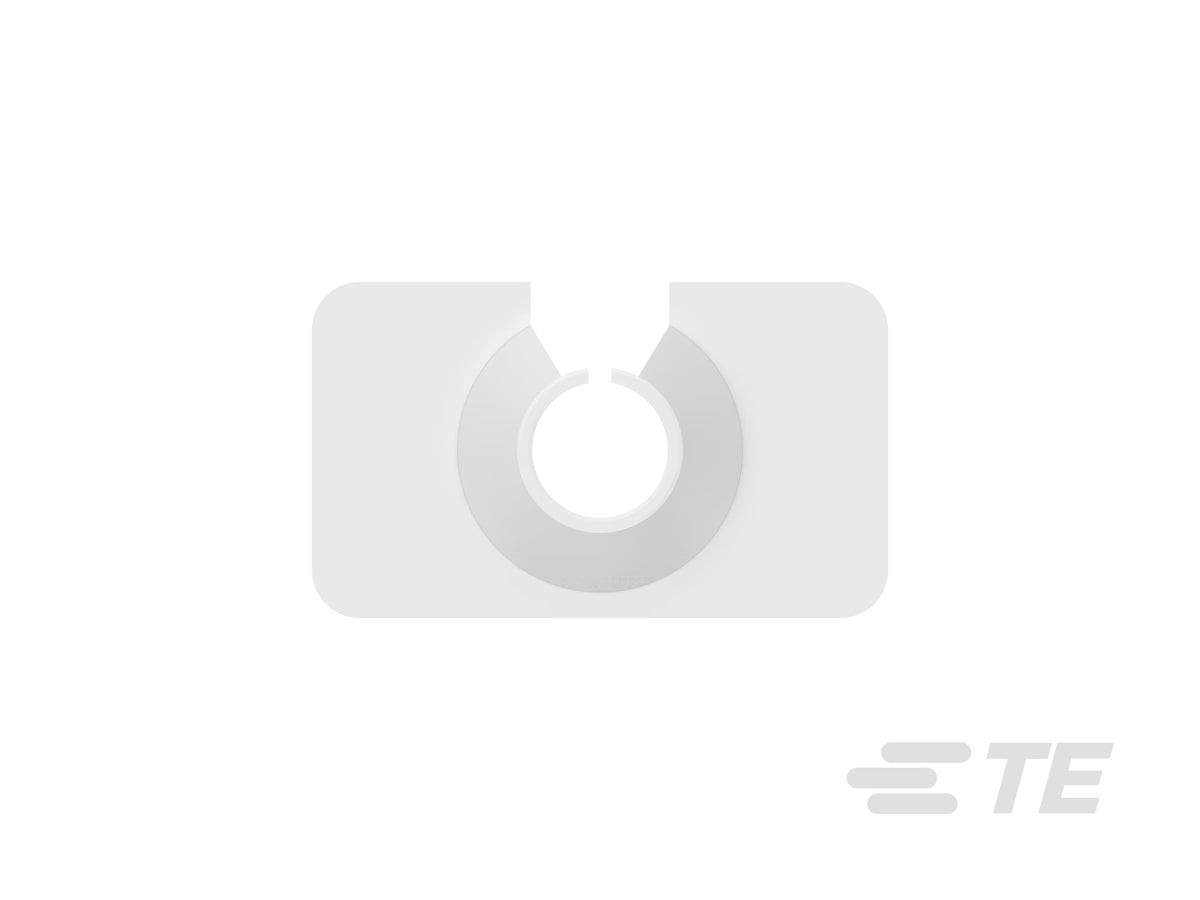

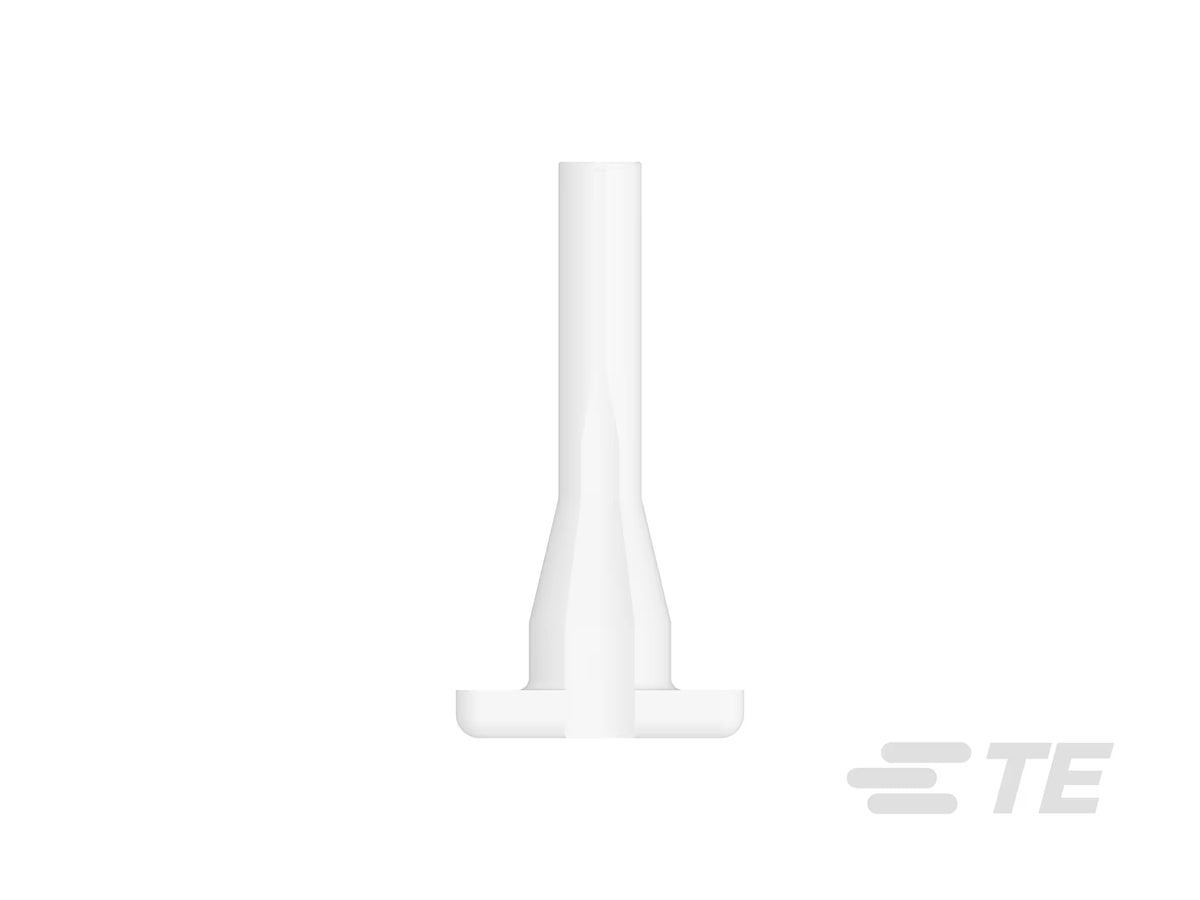

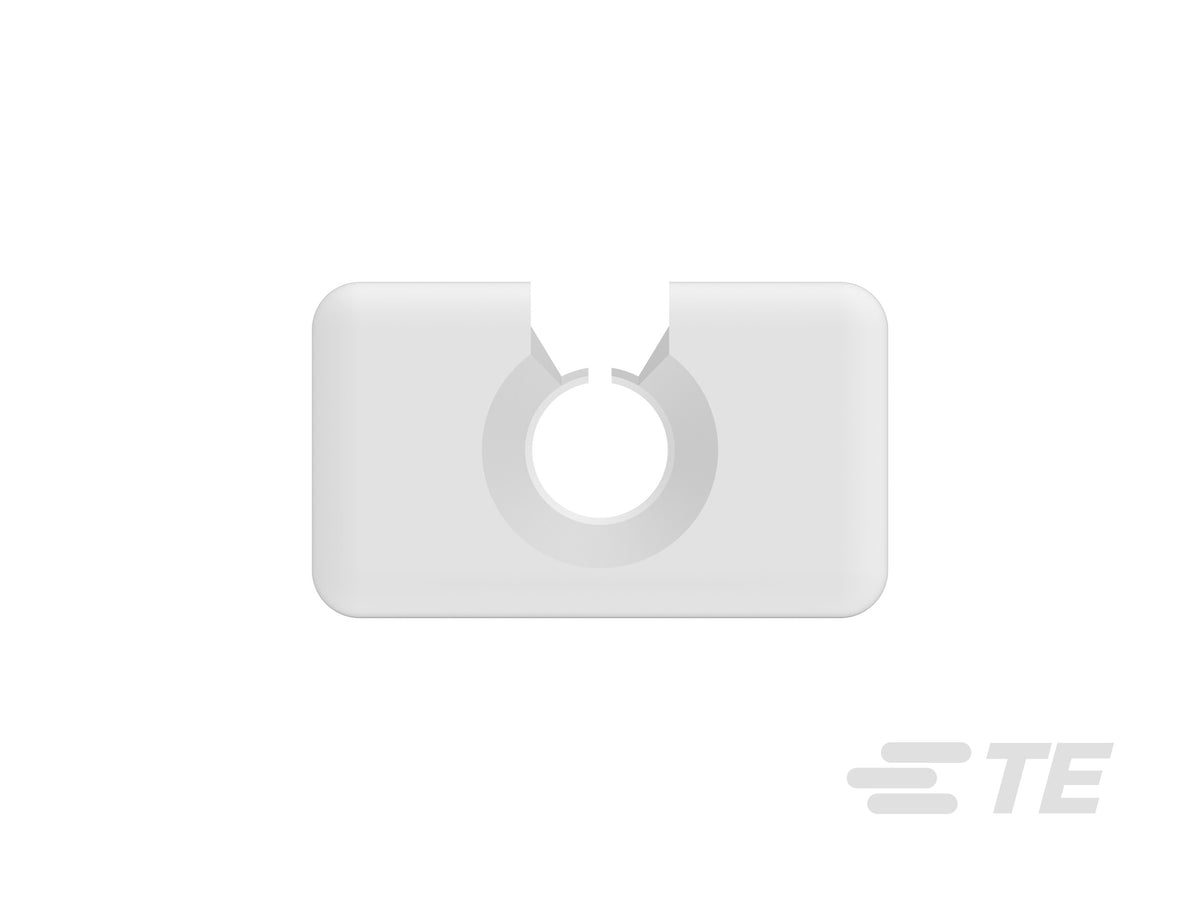

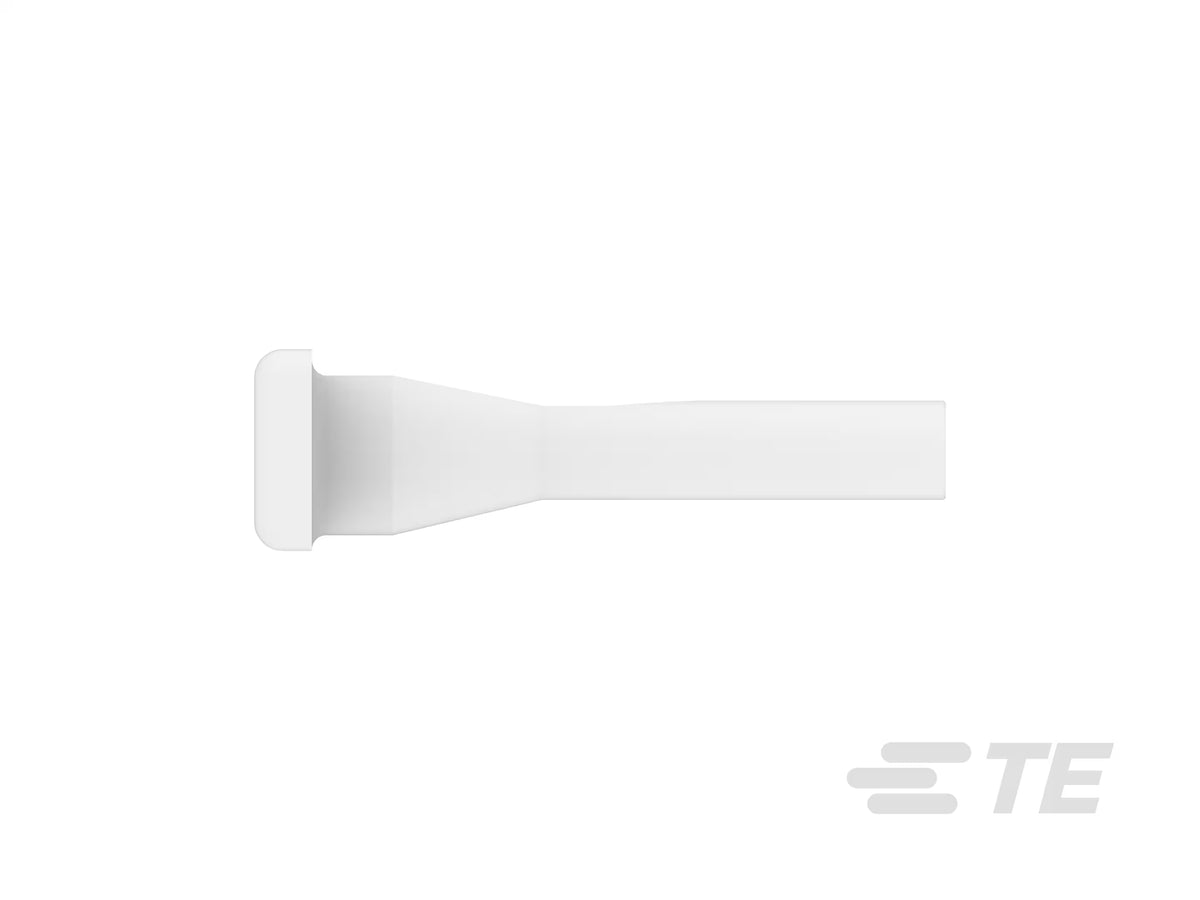

114009-ZZ Deutsch Size 4 Contact Removal Tool - White

114009-ZZ Deutsch Size 4 Contact Removal Tool is a white contact-to-housing extraction tool for compatible Size 4 terminals and is identified for 6 AWG applications.

The tool is intended for removal of large contacts during connector repair and repinning, helping release the retention system without pulling directly on the wire or levering against the housing. It is listed for DT, HDP, HD, HD30 and Common Contact applications that use the corresponding Size 4 contact arrangement.

Choose 114009-ZZ when the installed terminal is a compatible Size 4 contact in a 6 AWG application; the black Size 4 tool is specified for a different wire application and should not be treated as interchangeable by colour alone.

Typical applications include heavy-duty vehicle wiring, agricultural and construction equipment, industrial power connections and high-current harness service work.

• Tool type: Contact removal / extraction tool
• Application: Contact-to-housing extraction
• Contact size: Size 4
• Wire size reference: 6 AWG
• Colour: White

Compatible connector systems

Deutsch DT Connectors, Deutsch HD Connectors, Deutsch HD30 Connectors

View all Deutsch Connector Tools →

Need help confirming the correct extraction tool for your contact and connector? Speak to our team and we'll help you select the correct Deutsch tooling.
