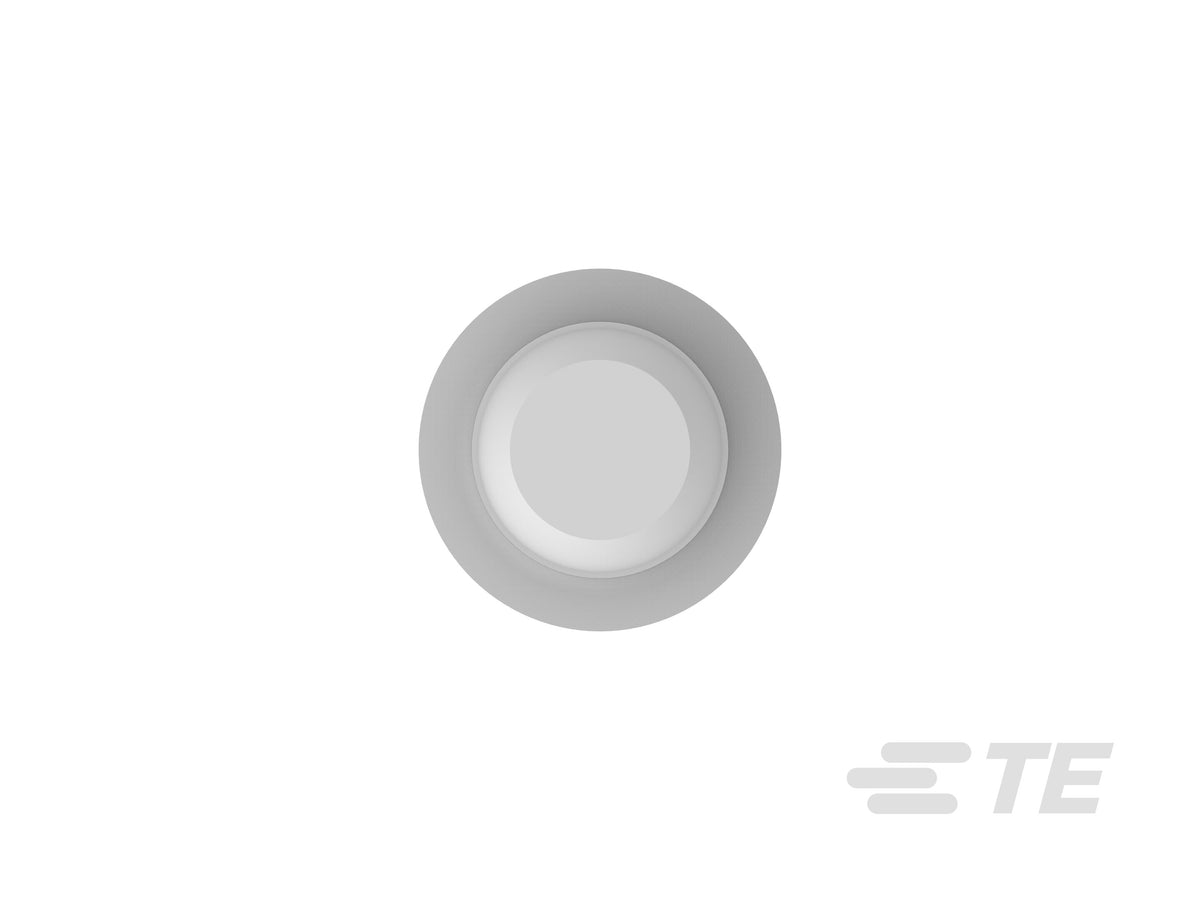

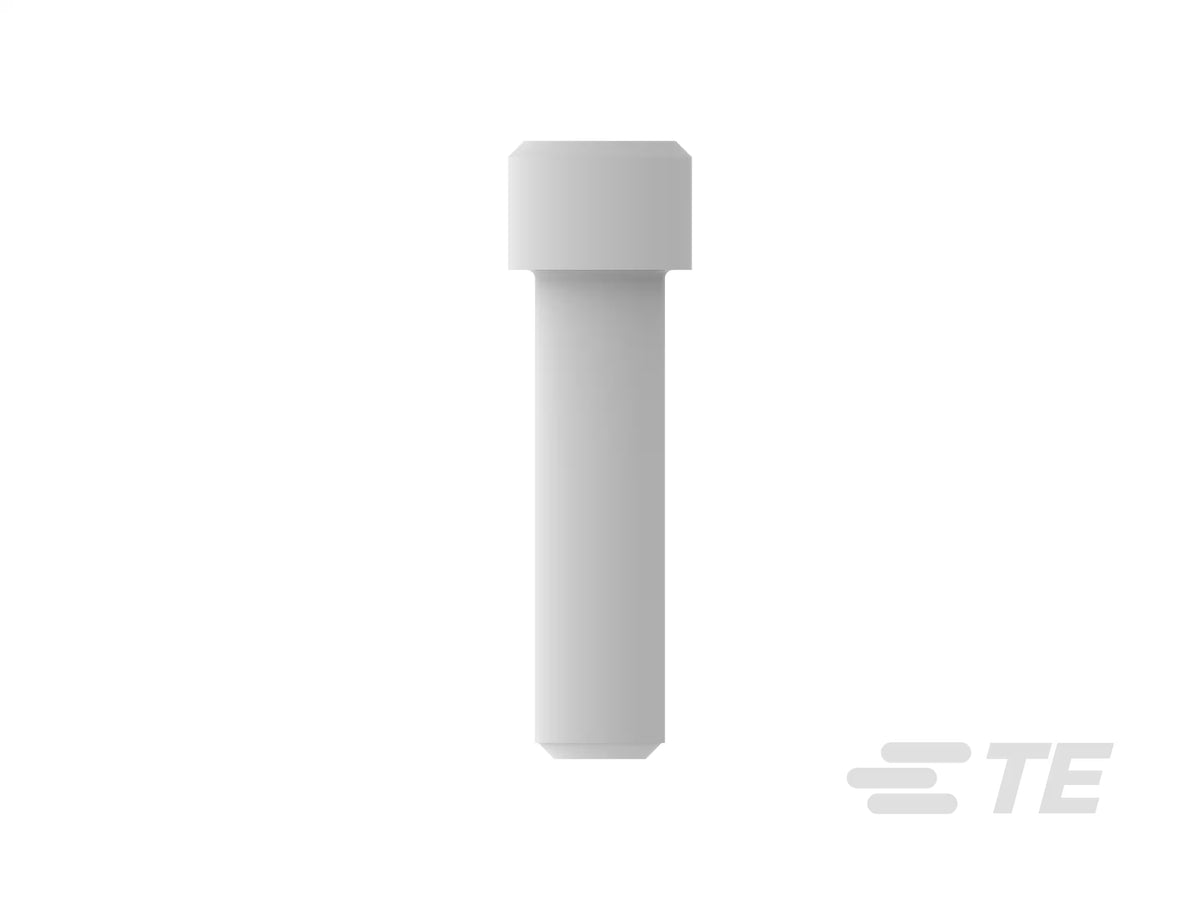

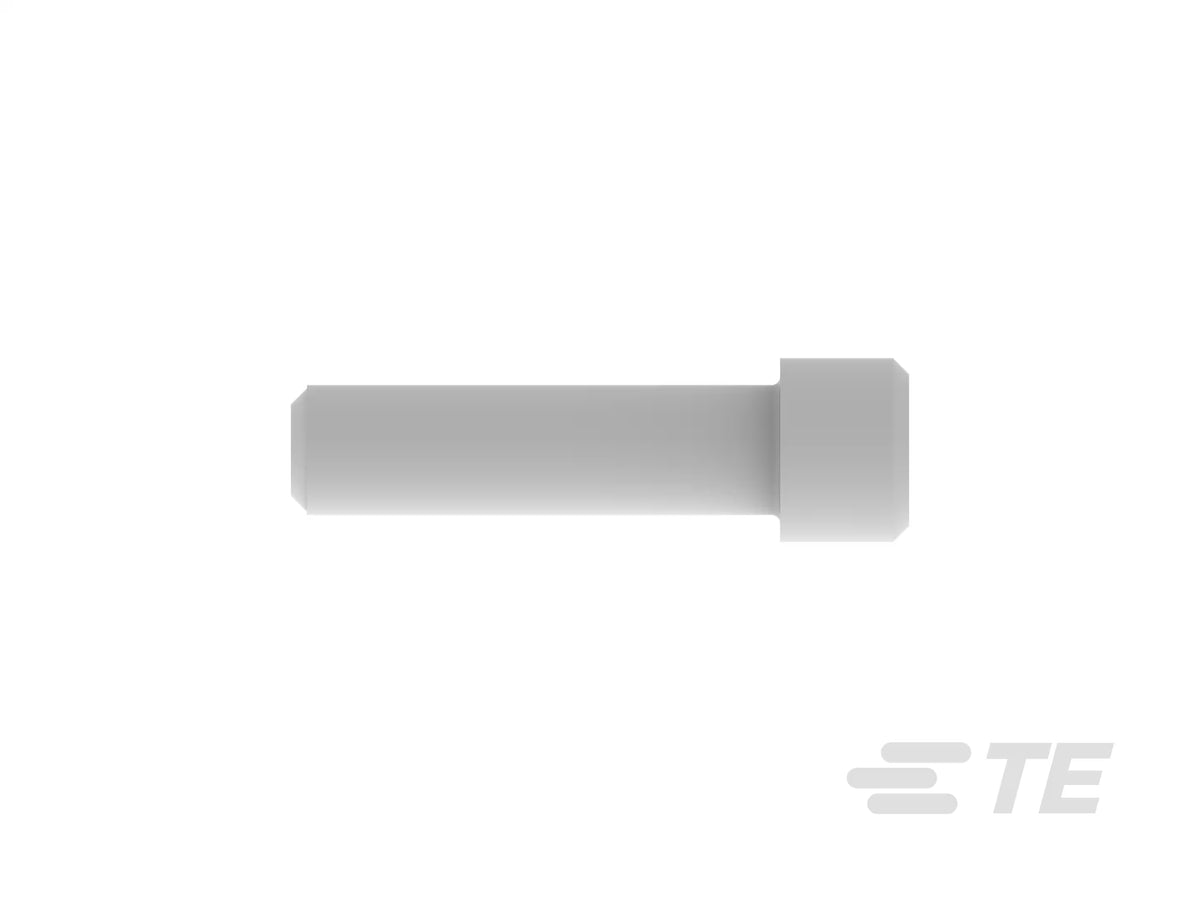

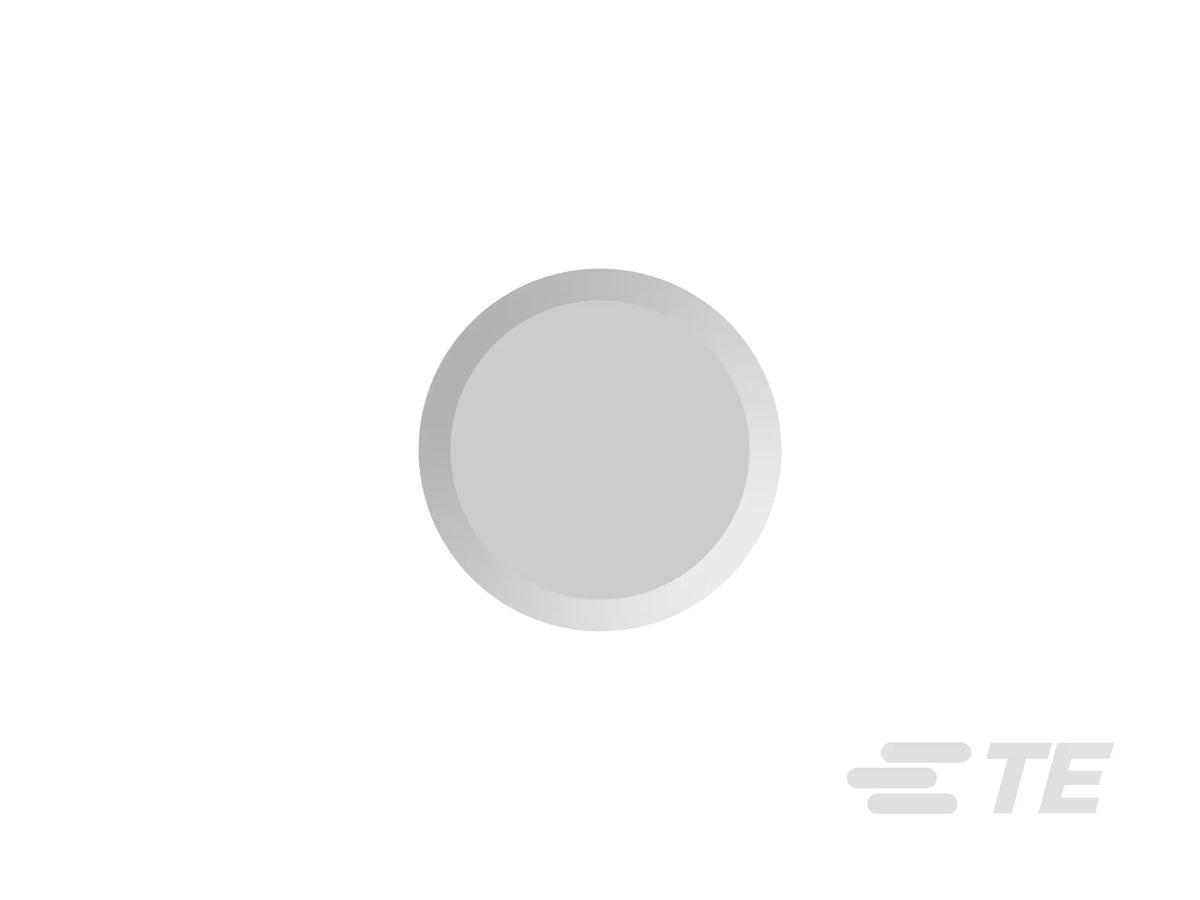

114017 Deutsch Size 12/16 Sealing Plug - White

114017 Deutsch Size 12/16 Sealing Plug - White is a white cavity sealing plug for unused Size 12 and Size 16 positions in compatible DEUTSCH heavy-duty connector assemblies.

Unused wire-entry cavities can create a path for dirt, moisture and other contaminants if they are left open. 114017 fills an unused cavity so the rear sealing system can maintain a properly closed interface when the connector is assembled as specified.

Choose 114017 when the connector build contains an unused Size 12 or Size 16 cavity that requires a sealing plug. It is a cavity-management component, not an electrical contact or mechanical keying plug.

Typical applications include heavy-equipment, agricultural, commercial-vehicle, marine and industrial harness builds or repairs where only part of a connector's available cavity count is populated.

• Component: Sealing plug
• Cavity size: Size 12 / Size 16
• Color: White
• Material: PBT GF30
• Contains lubricant: No
• Operating temperature: -55 to 125°C (-67 to 257°F)
• UL flammability rating: UL 94V-0
• TE alias: 114017-ZZ

Need help confirming the correct sealing plug for an unused cavity? Speak to our team and we'll help you match the plug to the connector and cavity size.
