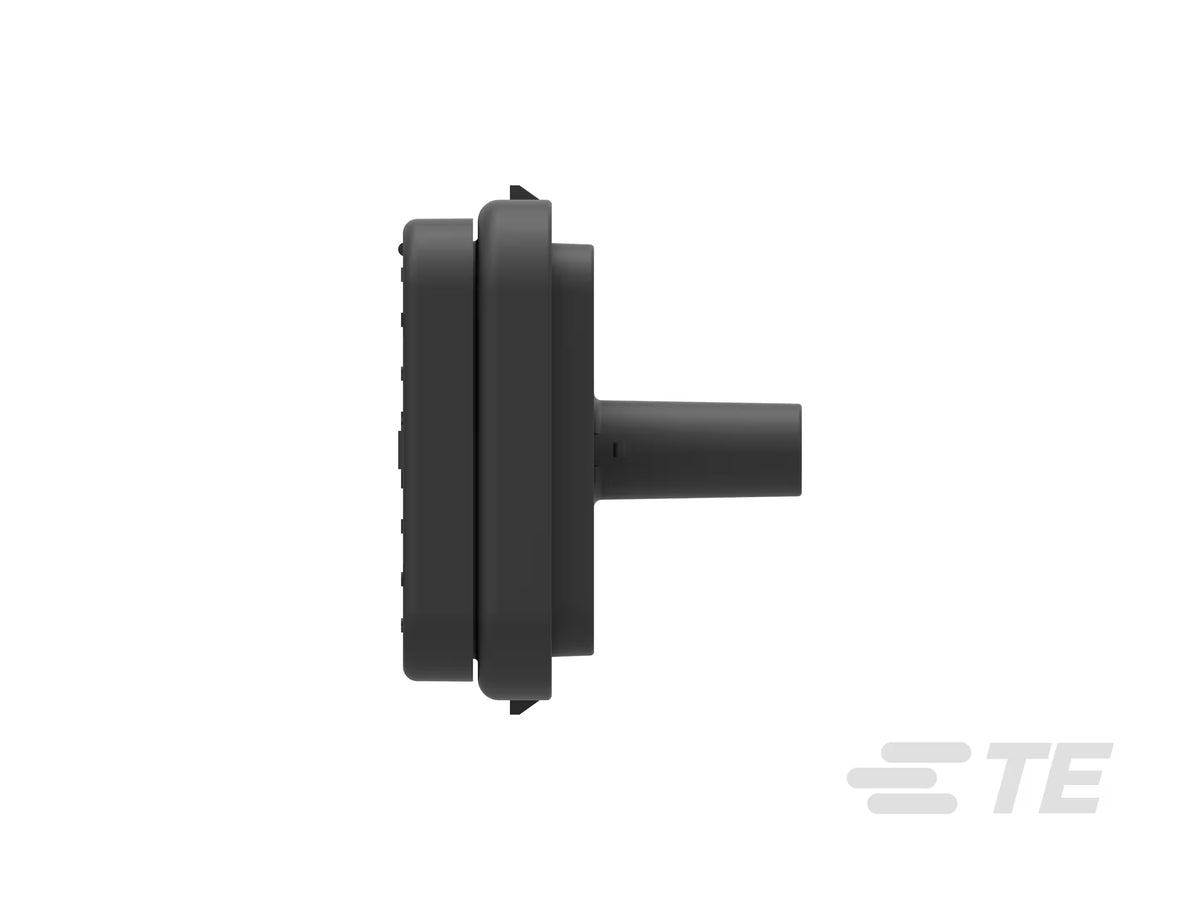

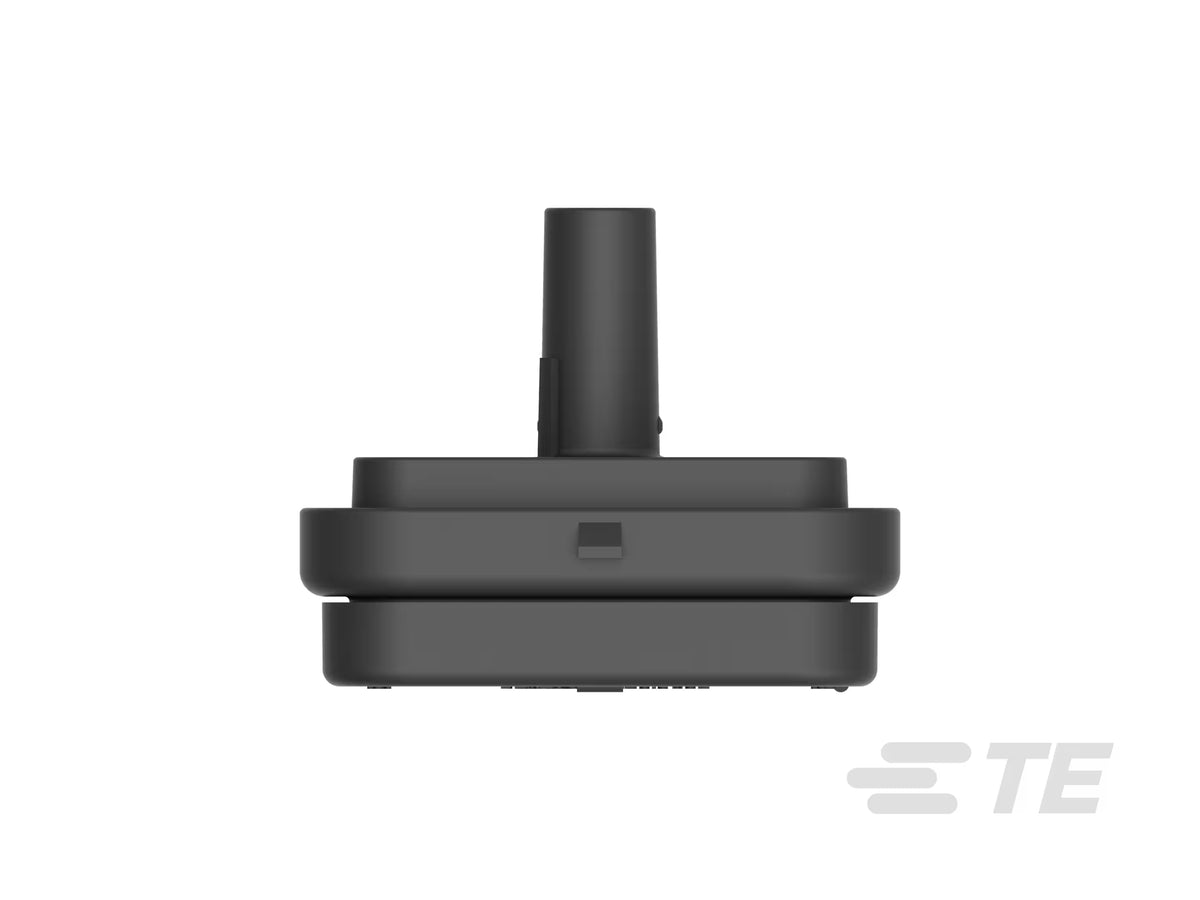

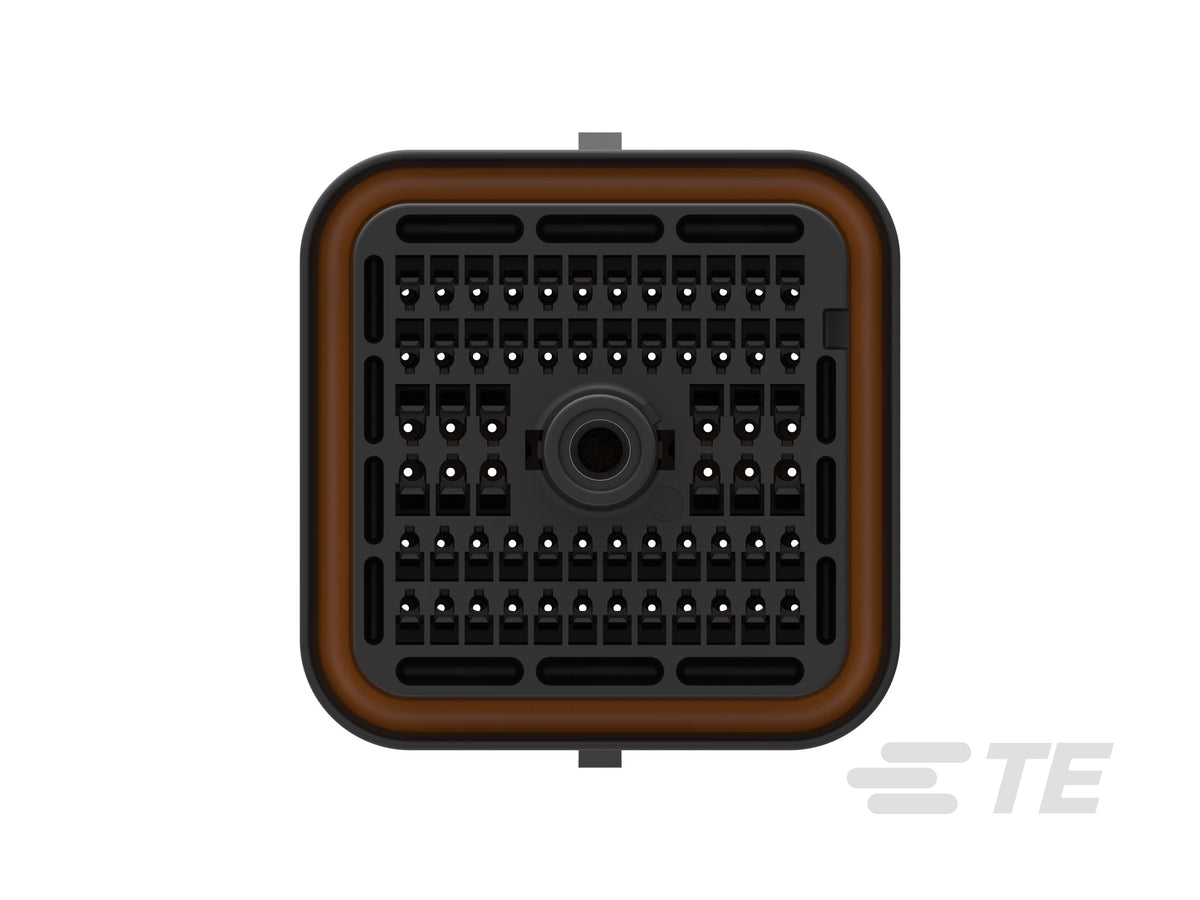

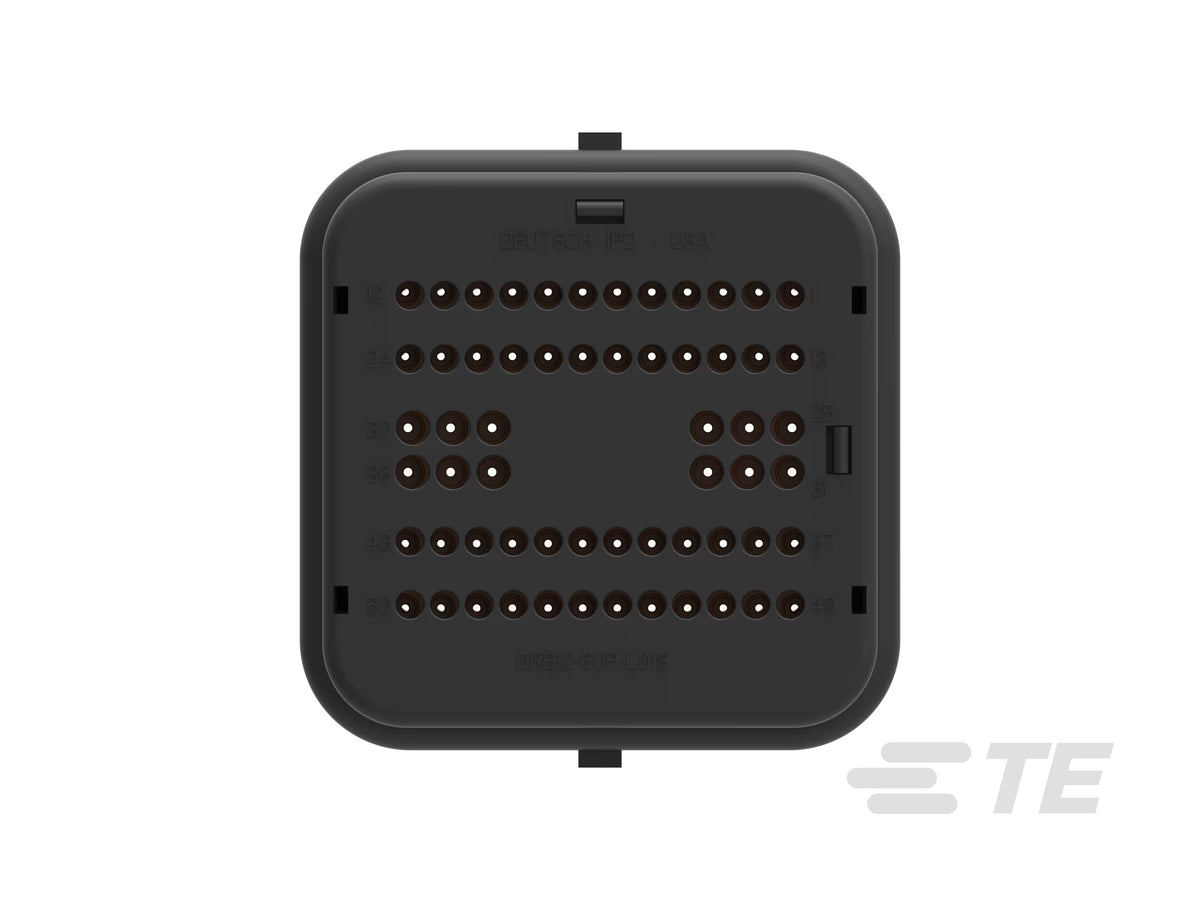

DRB12-60PAE-L018 Deutsch DRB 60-Way Receptacle Housing - Pin, Key A is a black, high-density Deutsch DRB connector housing for size 16 and size 20 pin contacts, with Key A coding, an E-seal and the L018 wire-router configuration.
The 60-position wire-to-wire interface is rated to 250 V AC/DC and supports up to 13 a (size 16) / 7.5 a (size 20). When assembled correctly it provides IP68/IP6K9K protection across a -55 to 125°C (-67 to 257°F) operating range. TE classifies the housing as free-hanging/in-line; the wider DRB Series is designed for high-density applications including bulkhead-style harness interfaces.
Choose DRB12-60PAE-L018 when the harness requires a 60-way Key A Deutsch DRB receptacle with pin contacts, E-seal and L018 wire routing. Confirm the mating half and contact-size schedule before assembly, particularly on mixed power-and-signal builds.
Typical applications include heavy equipment, agricultural and construction machinery, commercial vehicles, industrial control systems and other high-density harness or bulkhead interfaces.
-
Series: DEUTSCH DRB
-
Connector: Receptacle housing
-
Positions: 60
-
Contact type: Pin
-
Contact sizes: Size 16 and Size 20
-
Keying: A
-
Seal: E-Seal
-
Modification: L018 wire router
-
Mounting: Free-hanging / in-line
-
Contact current rating: Up to 13 A (Size 16) / 7.5 A (Size 20)
-
Operating voltage: 250 V AC/DC
-
IP rating: IP68 / IP6K9K
-
Operating temperature: -55 to 125°C (-67 to 257°F)
-
Compatible With Agency/Standards Products: SAE J2030
Dimensions
-
Connector Height: 66.19 mm (2.606 in)
-
Product Length: 52.76 mm (2.077 in)
-
Product Width: 66.19 mm (2.606 in)
-
Compatible Insulation Diameter: 1.02–2.41 mm / 1.35–3.05 mm (0.040–0.095 in / 0.053–0.120 in)
Mating Parts
Compatible Parts
Connector family: View all Deutsch DRC/DRB Series Connectors
Need help confirming the mating half, contact sizes or parts required to complete the assembly? Speak to our team and we'll help you select the correct Deutsch DRB components.
