Deutsch | SKU:
DT16-18SA-K004

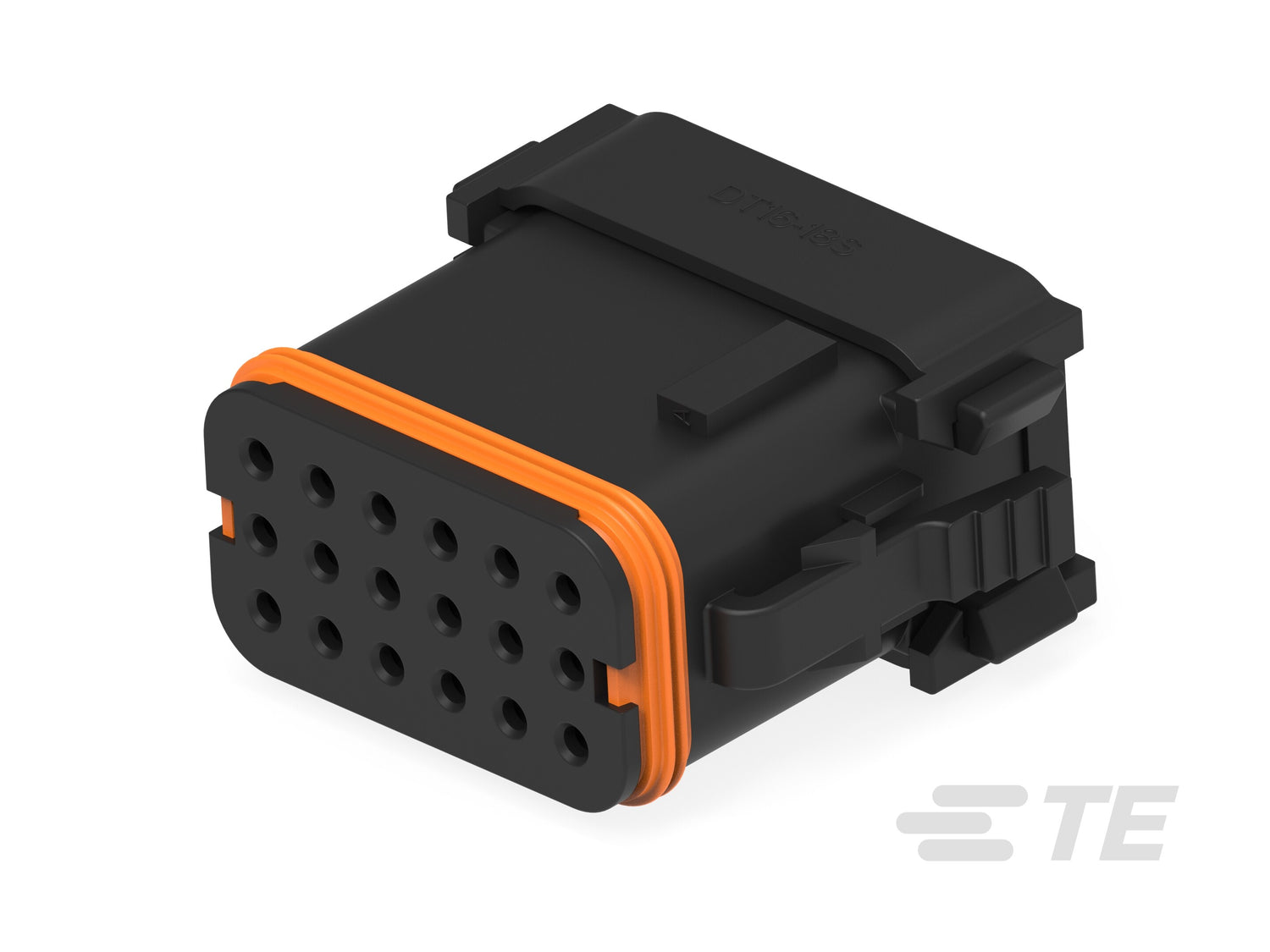

DT16-18SA-K004 Deutsch DT 18-Way Plug Housing – Key A
DT16-18SA-K004 Deutsch DT 18-Way Plug Housing is a black sealed housing for 18 Size 16 socket contacts, with Key A and the K004 enhanced seal-retention/end-cap configuration.
The three-row wire-to-wire housing is rated to 250 V and up to 13 A per Size 16 contact, with a -55 to 125°C operating range and straight 180-degree cable exit.
Choose DT16-18SA-K004 when the harness requires an 18-position DT socket plug with Key A and the K004 rear seal-retention feature rather than the standard 18-way plug configuration.
Specifications
- Series: DEUTSCH DT
- Connector: Plug housing
- Positions: 18
- Contact type: Socket
- Contact size: Size 16
- Keying: Key A
- Modification: K004 enhanced seal retention / end cap
- Operating voltage: 250 V
- Max contact current: 13 A
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$15.81/each
50+5% off
$15.06/each$15.81
100+9% off
$14.34/each$15.81
500+14% off
$13.66/each$15.81
DT16-18SA-K004 Deutsch DT 18-Way Plug Housing – Key A
Regular price
$15.81
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Connector modification | Enhanced Seal Retention, End Cap |
| Number of positions | 18 |
| Number of rows | 3 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.725 in |
| Product length | 1.393 in |
| Product width | .826 in |
| Row to row spacing | .19 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .184 in |
| Housing material | PA GF |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
