Deutsch | SKU:
DT16-18SC-K004

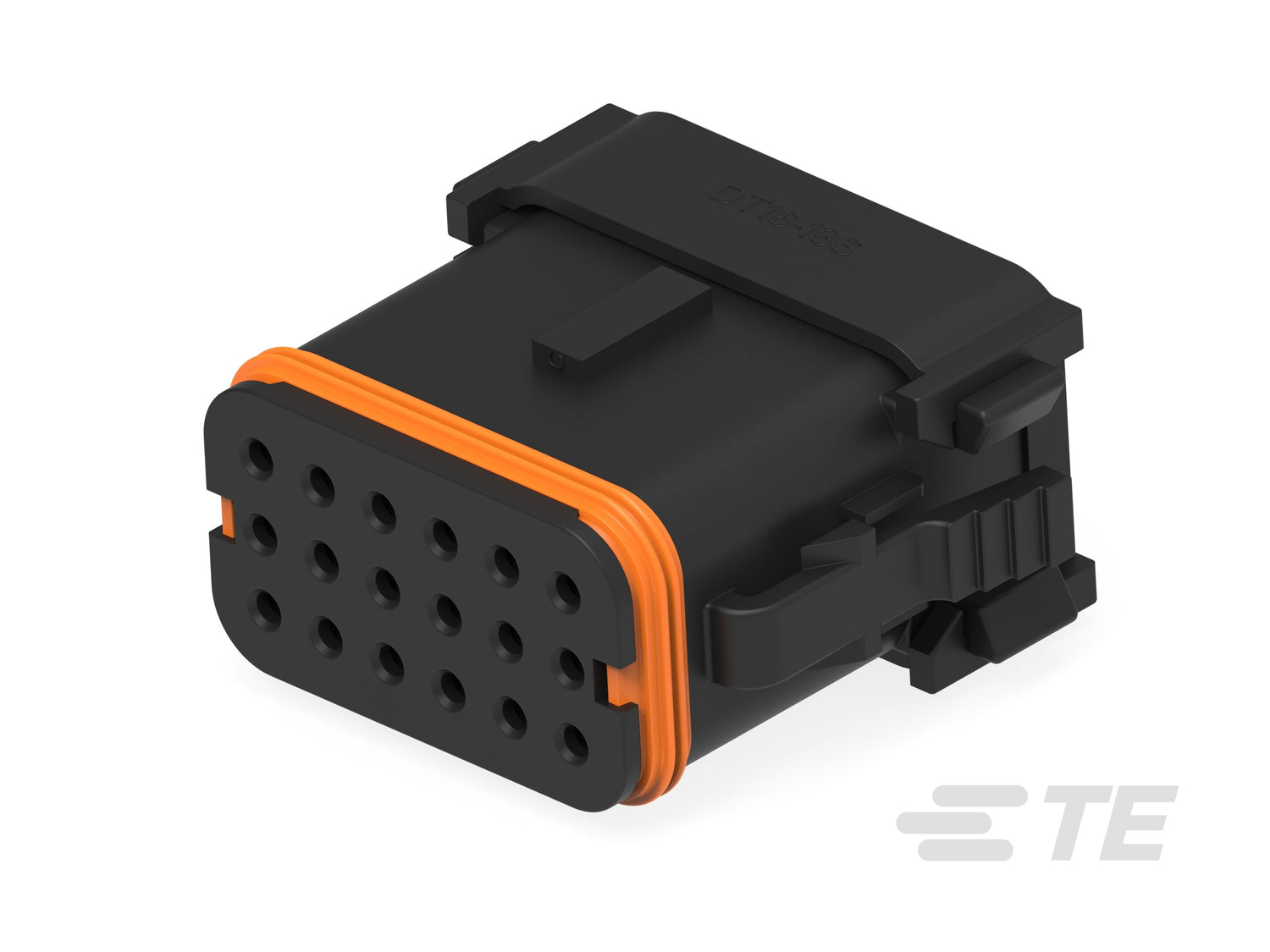

DT16-18SC-K004 - DT Series
PLG, 18P, BLK, E, C
DT16-18SC-K004 is a genuine Deutsch DT plug used in rugged wiring looms where reliability matters. It is designed for demanding on- and off-highway environments, with secure locking and dependable sealing.
- Series: Deutsch DT
- Positions: 18
- Colour: Black
- Operating temperature: -67 – 257 °F
- Sealable: Yes
- Serviceable: Yes
Typical applications
- Commercial vehicle, truck and bus
- Off-highway and agricultural machinery
- Construction and plant equipment
- Marine and industrial power systems
Why buy from Deutsch DT Connectors
- Specialist distributor support
- Quality-checked, genuine components
- Fast dispatch and reliable supply
Quantity price breaks
1+
$18.62/each
50+10% off
$16.76/each$18.62
100+19% off
$15.08/each$18.62
DT16-18SC-K004 - DT Series
Regular price
$18.62
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | C |
| Primary product color | Black |
| Connector modification | Enhanced Seal Retention, End Cap |
| Number of positions | 18 |
| Number of rows | 3 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.725 in |
| Product length | 1.393 in |
| Product width | .826 in |
| Row to row spacing | .19 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .184 in |
| Housing material | PA GF |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
