Deutsch | SKU:
0460-256-12233

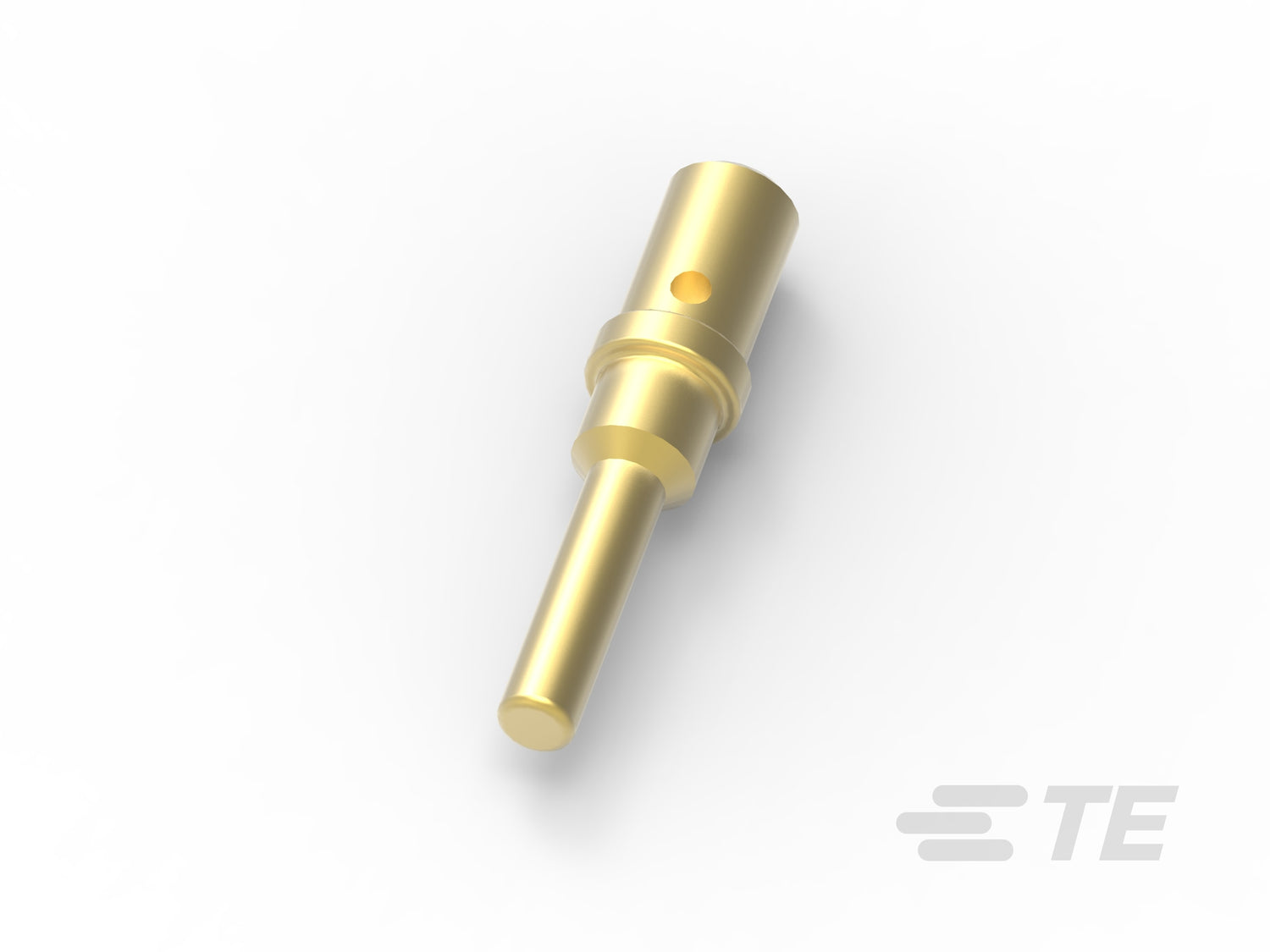

0460-256-12233 - Contacts and Terminals
0460-256-12233 is a genuine Deutsch connector configured as a Deutsch connector component (pin contact). Designed for harsh environments, it keeps connections stable and protected.
- Wire size: 16 – 18 AWG
- Series: Deutsch Connector Component
- Termination: Crimp
- Temperature range: -67 – 302 °F
- Contacts: Pin
Where it fits best: industrial equipment, heavy duty looms, field repairs.
It is engineered for consistent mating and long term durability. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$4.99/each
50+5% off
$4.74/each$4.99
100+10% off
$4.50/each$4.99
500+19% off
$4.05/each$4.99
1000+25% off
$3.75/each$4.99
0460-256-12233 - Contacts and Terminals
Regular price
$4.99
Unit price
Unavailable
Product Specifications
| Contact fabrication | Solid |
| Contact size | Size 12 |
| Crimp type | Indent Crimp |
| Interface plating | Palladium Nickel (PdNi) |
| Mating pin diameter | .094 in |
| Terminal type | Pin |
| Typical current rating | 25 A |
| Wire contact termination area | Gold |
| Wire size | 16 – 18 AWG |
| Wire size search | 1.5 mm² |
| Compatible with wire base mate | Copper |
| Packaging method | Crate |
| Packaging quantity | 1250 |
| Primary locking feature | Integrated in Housing |
| Receptacle style | 180° |
| Sealable | No |
| Product terminates to | Wire |
| Termination method to wire cab | Crimp |
| Insulation option | Uninsulated |
| Operating temperature max | 302 °F |
| Operating temperature range | -67 – 302 °F |
| Customer preferred contact | Yes |
| Terminal transmits | 25 – 40 A (Power) |
