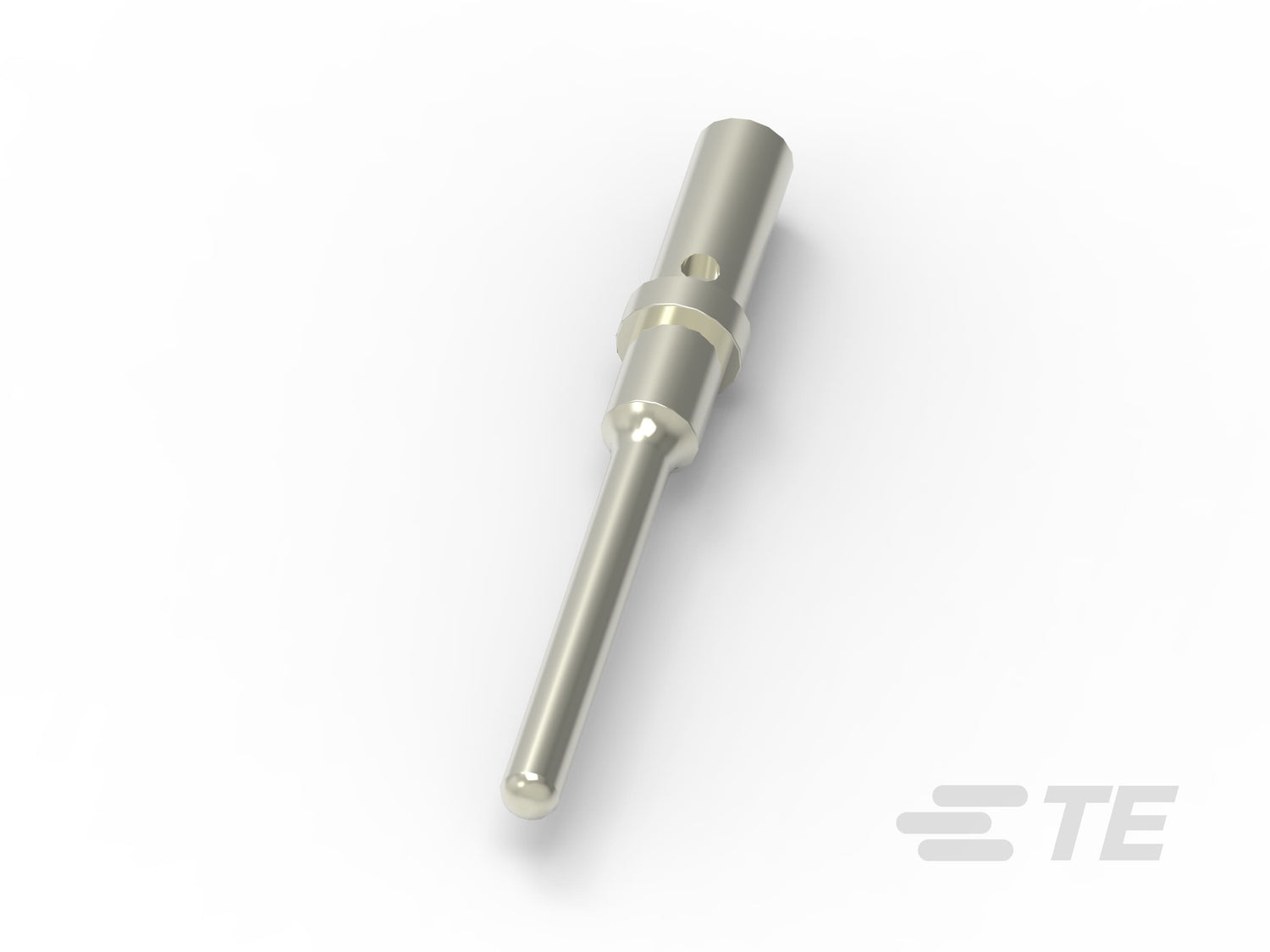

0460-264-16141 Deutsch Size 16 Extended Solid Pin Contact - 16-20 AWG Nickel
0460-264-16141 Deutsch Size 16 Extended Solid Pin Contact - 16-20 AWG Nickel is a solid Size 16 pin terminal for 16-20 AWG (0.5-1.5 mm²) copper wire, with a extended hd-series contact configuration. It uses Nickel at the mating interface and Nickel in the wire termination area.
The contact uses an indent crimp, carries a typical current rating of 13 A, and operates across -55 to 125°C (-67 to 257°F). The 1.5 mm (0.060 in) mating pin diameter and exact wire range are key checks when matching terminals to Deutsch connector housings.
Choose 0460-264-16141 when a Size 16 solid pin contact is required with the extended hd-series contact design for the specified wire range and plating configuration.
Typical applications include heavy-duty vehicles, agricultural and construction equipment, motorsport, marine and industrial wiring harnesses where a serviceable Deutsch terminal system is specified.
- Contact family: DEUTSCH Common Contact
- Terminal type: Pin
- Contact size: Size 16
- Contact fabrication: Solid
- Wire size: 16-20 AWG (0.5-1.5 mm²)
- Termination: Crimp
- Crimp type: Indent crimp
- Interface plating: Nickel
- Termination-area plating: Nickel
- Typical current rating: 13 A
- Operating temperature: -55 to 125°C (-67 to 257°F)
- Compatible connector systems: Deutsch HD10 Series Connectors, Deutsch HDP20 Connectors, Deutsch HD30 Series Connectors
Dimensions
- Mating pin diameter: 1.5 mm (0.060 in)
Compatible Parts
View all Deutsch Contacts & Terminals
Need help matching contacts, connector housings or tooling? Speak to our team and we'll help you select the correct Deutsch parts.
Quantity price breaks
0460-264-16141 Deutsch Size 16 Extended Solid Pin Contact - 16-20 A...
Product Specifications
| Contact fabrication | Solid |
| Contact size | Size 16 |
| Crimp type | Indent Crimp |
| Interface plating | Nickel (Ni) |
| Mating pin diameter | .06 in |
| Terminal type | Pin |
| Typical current rating | 13 A |
| Wire contact termination area | Nickel |
| Wire size | 16 – 20 AWG |
| Wire size search | 1.5 mm² |
| Compatible with wire base mate | Copper |
| Packaging method | Package |
| Packaging quantity | 1 |
| Primary locking feature | Integrated in Housing |
| Receptacle style | 180° |
| Sealable | No |
| Product terminates to | Wire |
| Termination method to wire cab | Crimp |
| Insulation option | Uninsulated |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Customer preferred contact | Yes |
| Terminal transmits | 0 – 24 A (Low Power) |
