Deutsch | SKU:
DRB12-102PAE-L018

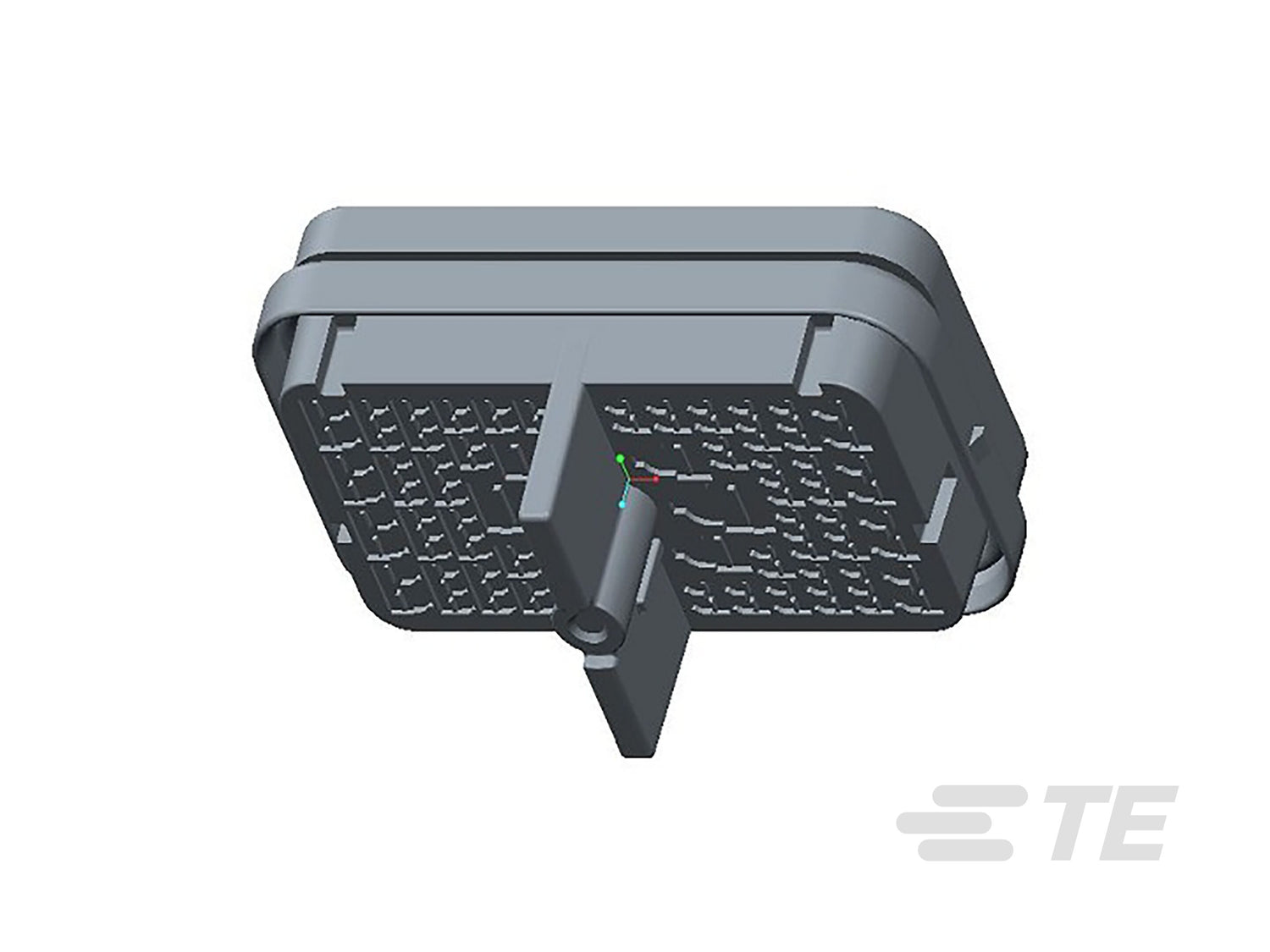

DRB12-102PAE-L018 - DRC DRB Series
The DRB12-102PAE-L018 is a rectangular connector assembly built for dependable performance in demanding electrical and automotive applications. Used in the DEUTSCH DRC/DRB family, it supports high density connector layouts for power and signal circuits while helping maintain a stable, serviceable interface.
- High position rectangular connector format for demanding layouts
- Supports organised bulkhead or interface style installations
- Helps keep large harness connections secure and serviceable
Quantity price breaks
1+
$55.25/each
50+10% off
$49.73/each$55.25
100+19% off
$44.76/each$55.25
DRB12-102PAE-L018 - DRC DRB Series
Regular price
$55.25
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Wire Router |
| Connector seal code | E Seal |
| Number of positions | 102 |
| Number of rows | 12 |
| Contact current rating max | 60 A |
| Contact size | Size 4 |
| Contact type | Pin |
| Mating pin diameter | .225 in |
| Compatible insulation diameter | .261 – .292 in |
| Connector height | 2.966 in |
| Product length | 2.291 in |
| Product width | 4.951 in |
| Row to row spacing | .339 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .886 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 72 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
