Deutsch | SKU:
DRB12-60PAE-L018

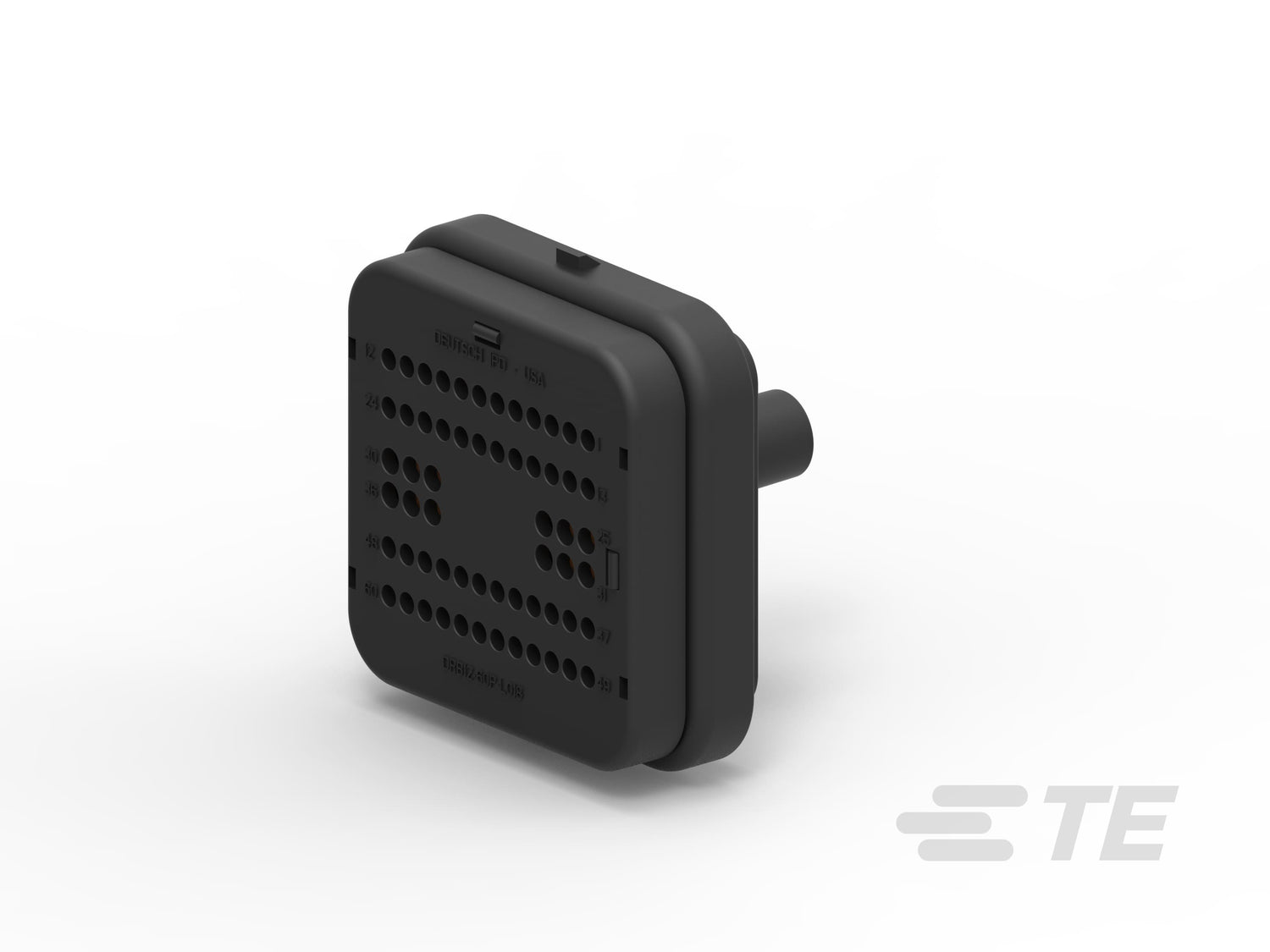

DRB12-60PAE-L018 - DRC DRB Series
The DRB12-60PAE-L018 is a professional grade 60 position rectangular connector assembly created for robust connector assemblies in equipment exposed to vibration, dirt and routine service work. For demanding harness and interface layouts, it brings the robust character of the DEUTSCH DRC/DRB range to installations that need secure mating and dependable retention.
- High position rectangular connector format for demanding layouts
- Supports organised bulkhead or interface style installations
- Helps keep large harness connections secure and serviceable
Quantity price breaks
1+
$21.16/each
50+10% off
$19.05/each$21.16
100+19% off
$17.14/each$21.16
DRB12-60PAE-L018 - DRC DRB Series
Regular price
$21.16
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Wire Router |
| Connector seal code | E Seal |
| Number of positions | 60 |
| Number of rows | 6 |
| Contact current rating max | 13 A |
| Contact size | Size 20 |
| Contact type | Pin |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 2.606 in |
| Product length | 2.077 in |
| Product width | 2.606 in |
| Row to row spacing | .275 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 36 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
