Deutsch | SKU:
DRB16-60SAE-L018

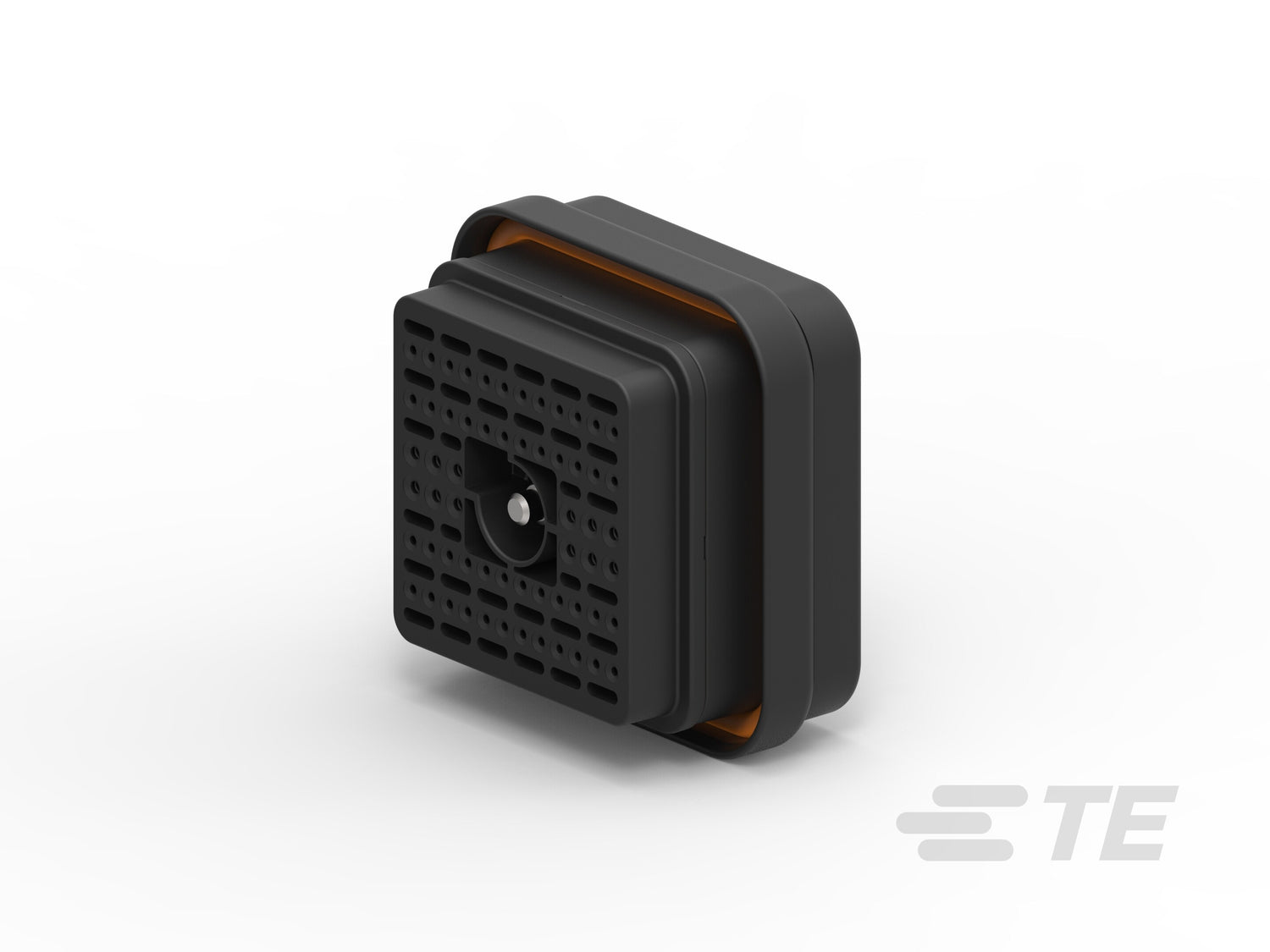

DRB16-60SAE-L018 Deutsch DRB 60-Way Plug Housing - Socket, Key A
DRB16-60SAE-L018 Deutsch DRB 60-Way Plug Housing is a sealed Key A housing for socket contacts, with an E-seal and L018 wire-router configuration.
The 60-position hybrid layout accepts Size 16 and Size 20 contacts, supports 12/24/48 V vehicle architectures and is rated IP68/IP6K9K when correctly assembled.
Choose DRB16-60SAE-L018 when the harness requires the 60-way DRB socket plug with Key A, E-seal and wire router; pair it with the matching Key A DRB receptacle and specified contact sizes.
Specifications
- Series: DEUTSCH DRB
- Connector: Plug housing
- Positions: 60
- Contact type: Socket
- Contact sizes: Size 16 and Size 20
- Seal: E-Seal
- Keying: Key A
- Mounting: Free-hanging / in-line
- Modification: L018 wire router
- IP rating: IP68 / IP6K9K
Quantity price breaks
1+
$20.78/each
50+5% off
$19.80/each$20.78
100+9% off
$18.85/each$20.78
DRB16-60SAE-L018 Deutsch DRB 60-Way Plug Housing - Socket, Key A
Regular price
$20.78
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Wire Router |
| Connector seal code | E Seal |
| Number of positions | 60 |
| Number of rows | 6 |
| Contact current rating max | 13 A |
| Contact size | Size 20 |
| Contact type | Socket |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 2.606 in |
| Product length | 1.406 in |
| Product width | 2.606 in |
| Row to row spacing | .275 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 36 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
