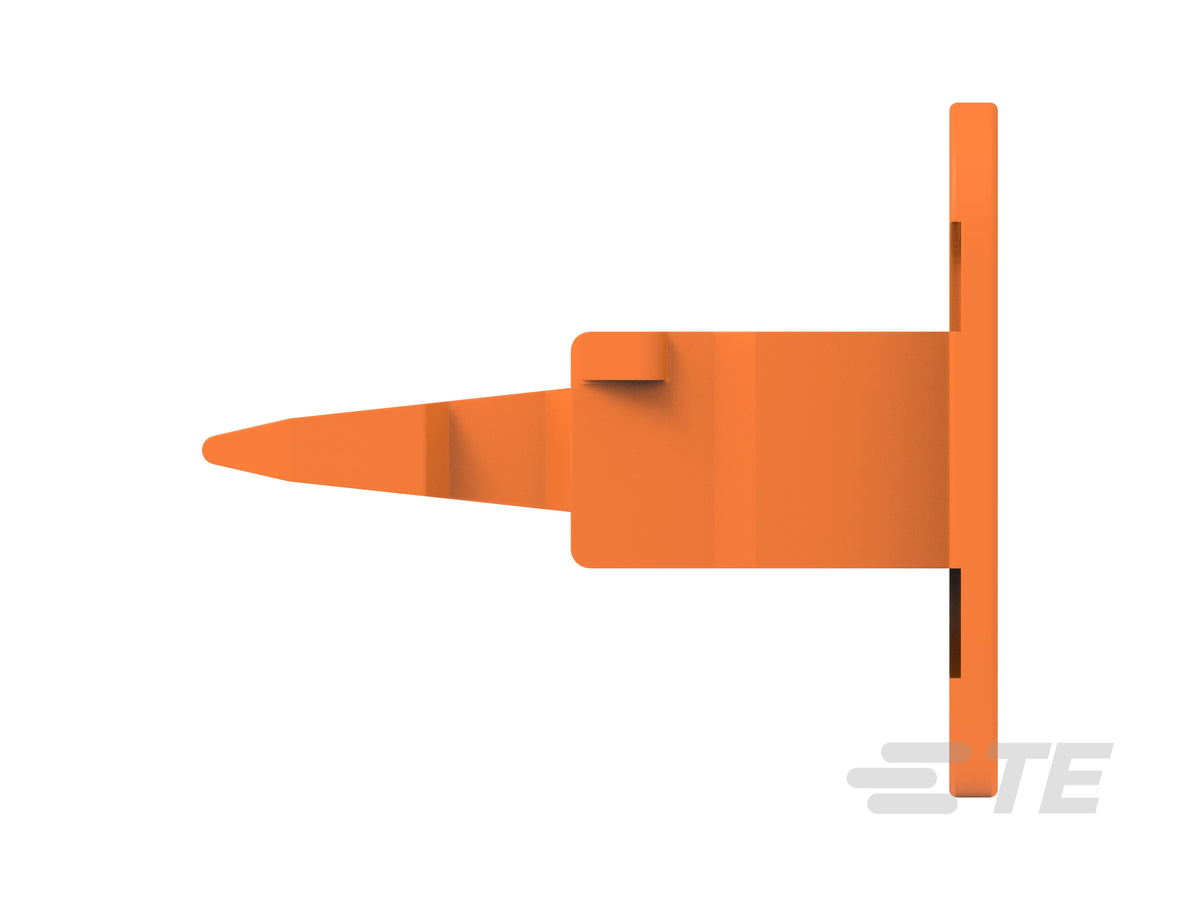

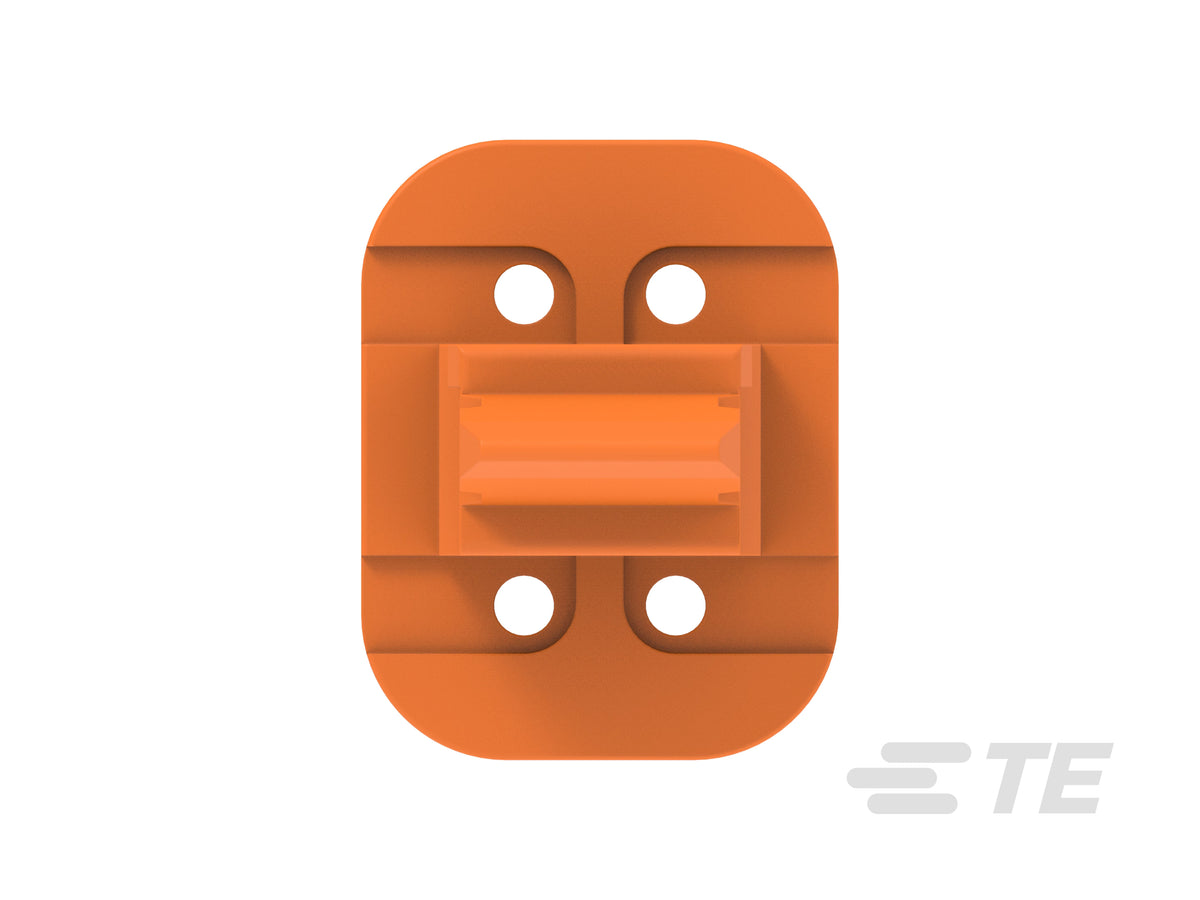

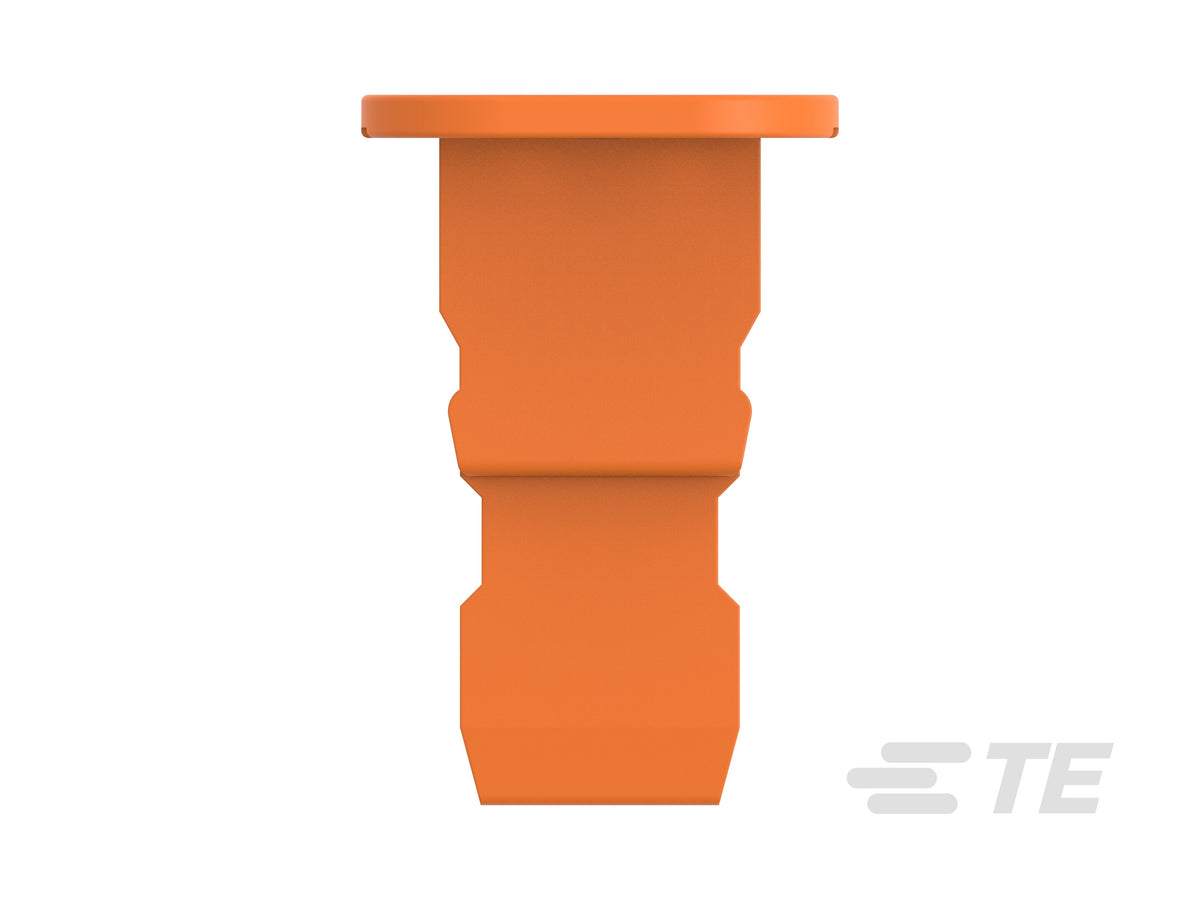

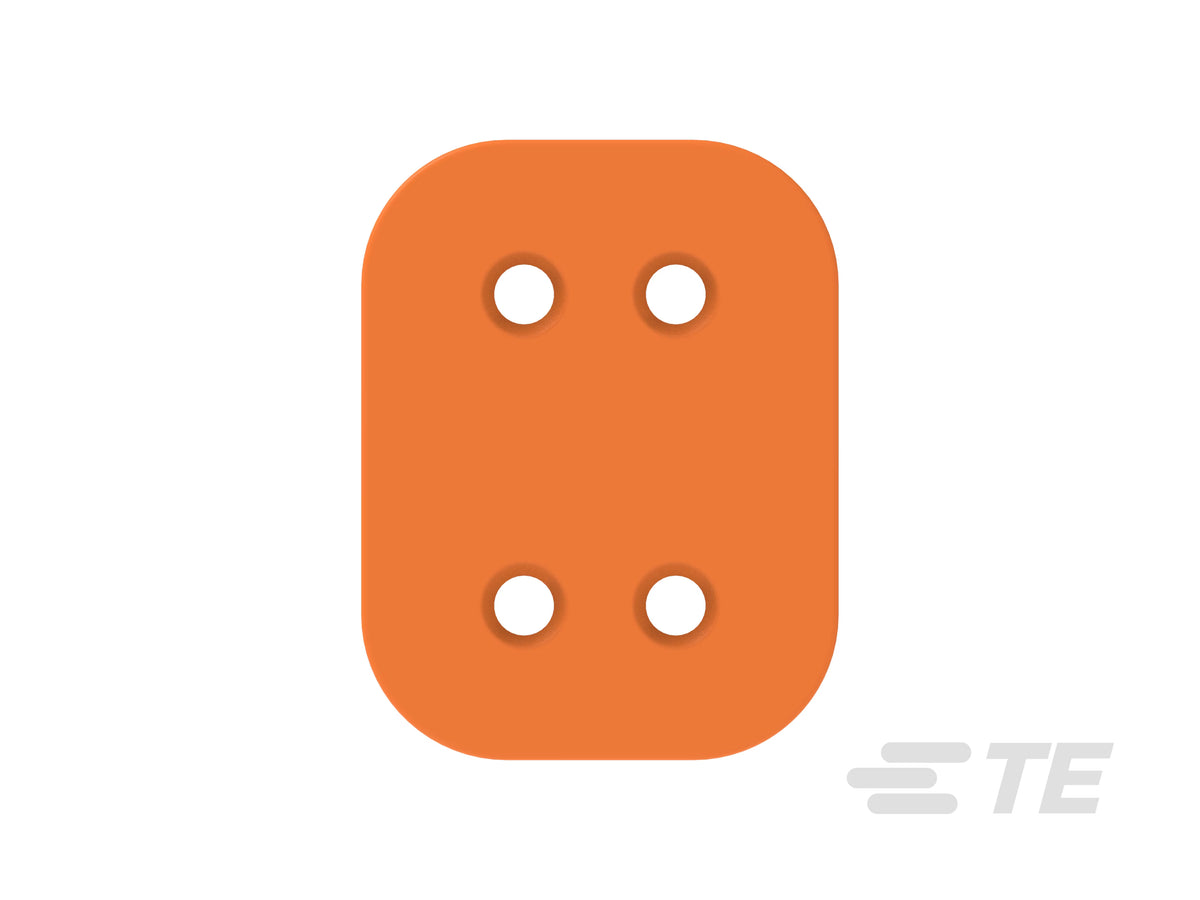

W4S Deutsch DT 4-Way Socket-Side Wedgelock

W4S Deutsch DT 4-Way Socket-Side Wedgelock is an orange 4-position secondary lock for standard 4-way DEUTSCH DT plug housings.

Installed at the mating face after the socket contacts are seated, the PBT wedgelock helps confirm terminal alignment and provides the secondary contact-retention function used in the DT connector system. It is serviceable and rated for -55 to 125°C operation.

Choose W4S for the standard 4-way DT plug configuration. If the plug housing uses the enhanced seal-retention P012 configuration, use W4S-P012 instead.

Typical applications include vehicle and machinery harness assembly, motorsport wiring, marine electrical systems and field repairs where a 4-way DT plug needs the correct secondary lock.

• Series: DEUTSCH DT
• Component: Wedgelock / secondary lock
• Positions: 4
• Side: Socket-side / plug housing
• For use with: Standard 4-way DT plug housings
• Color: Orange
• Material: PBT
• Sealable: No
• Serviceable: Yes
• Operating temperature: -55 to 125°C (-67 to 257°F)
• UL flammability rating: UL 94HB

Need help matching the correct wedgelock to your DT housing or contact side? Speak to our team and we'll help you select the correct Deutsch DT locking component.
