Deutsch | SKU:
DTCE04-1-12P-E003
DTCE04-1-12P-E003 - DtHD Series

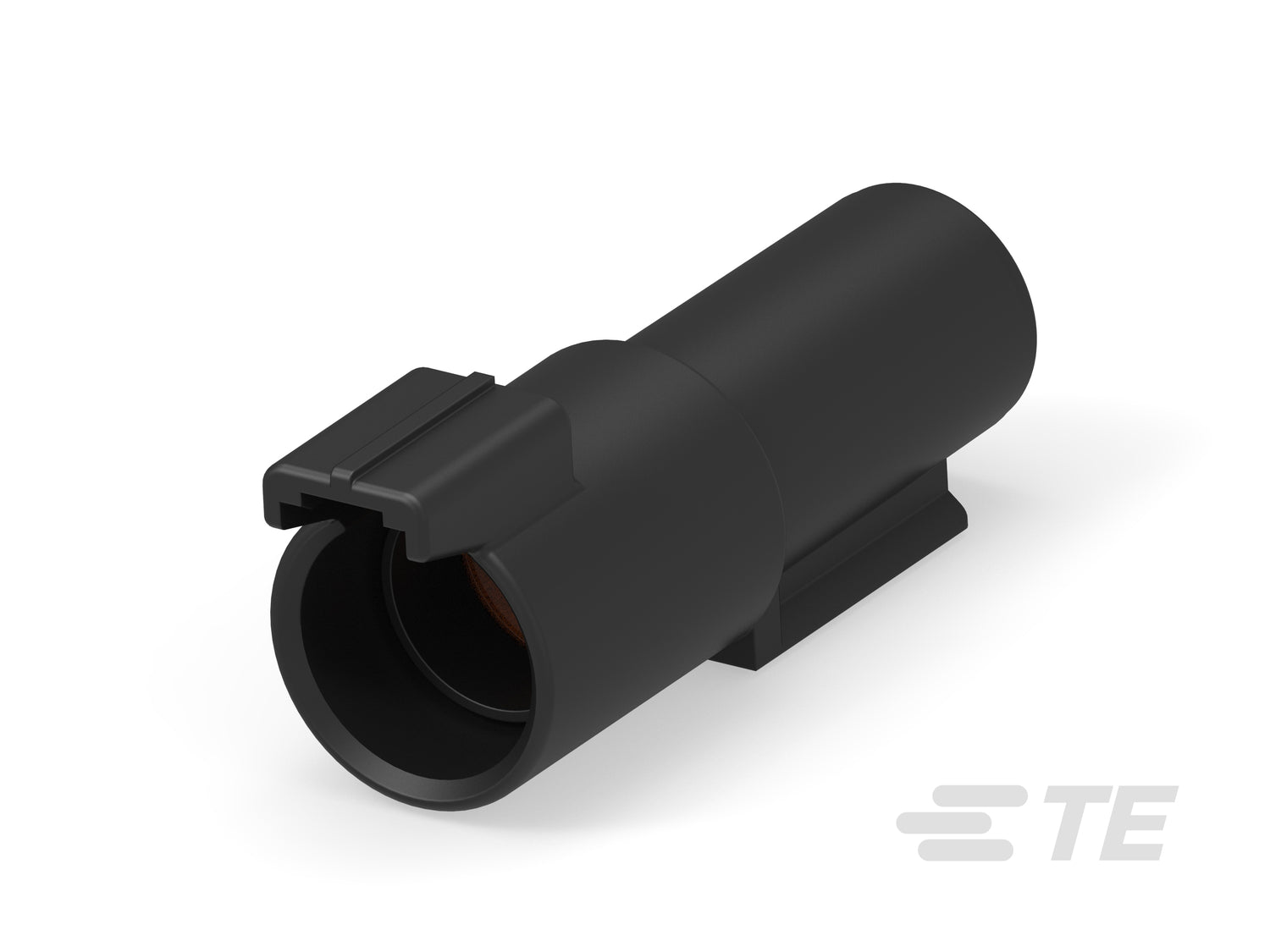

DTCE04-1-12P-E003 is a genuine Deutsch Deutsch DTHD series 1-way connector housing designed for dependable performance in harsh environment wiring looms.
Primary colour: Black. Operating temperature range: -67 – 257 °F.
Key features
- 1-way configuration
- Colour: Black
- UL flammability rating: UL 94V-0
- Operating temperature: -67 – 257 °F
- Compliance: EU RoHS Compliant
- Compliance: EU ELV Compliant
- Contact size: Size 12
Specifications
| Series | DEUTSCH DTHD |
|---|---|
| Connector type | Wire & Cable |
| Positions | 1 |
| Contact size | Size 12 |
| Contact type | Pin |
| Operating temperature | -67 – 257 °F |
| Primary colour | Black |
| UL flammability | UL 94V-0 |
| Terminal position assurance | No |
| Connector position assurance | No |
| RoHS | EU RoHS Compliant |
| ELV | EU ELV Compliant |
Typical applications include off-highway equipment, commercial vehicles, marine systems, motorsport, and industrial machinery where vibration, dust and moisture resistance matter.
Technical documents
Need help matching contacts, wedgelocks or compatible housings? Speak to our team and we’ll help you select the correct Deutsch DT parts.
Quantity price breaks
1+
$3.89/each
50+10% off
$3.50/each$3.89
100+19% off
$3.15/each$3.89
DTCE04-1-12P-E003 - DtHD Series
Regular price
$3.89
Unit price
Unavailable
Technical Documentation
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Number of positions | 1 |
| Number of rows | 1 |
| Contact current rating max | 25 A |
| Contact size | Size 12 |
| Contact type | Pin |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .134 – .17 in |
| Connector height | .85 in |
| Product length | 2.168 in |
| Product width | .71 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PEI (Polyetherimide) |
| Ip rating | Not Tested |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1000 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
