Deutsch | SKU:
DTMH04-2PD

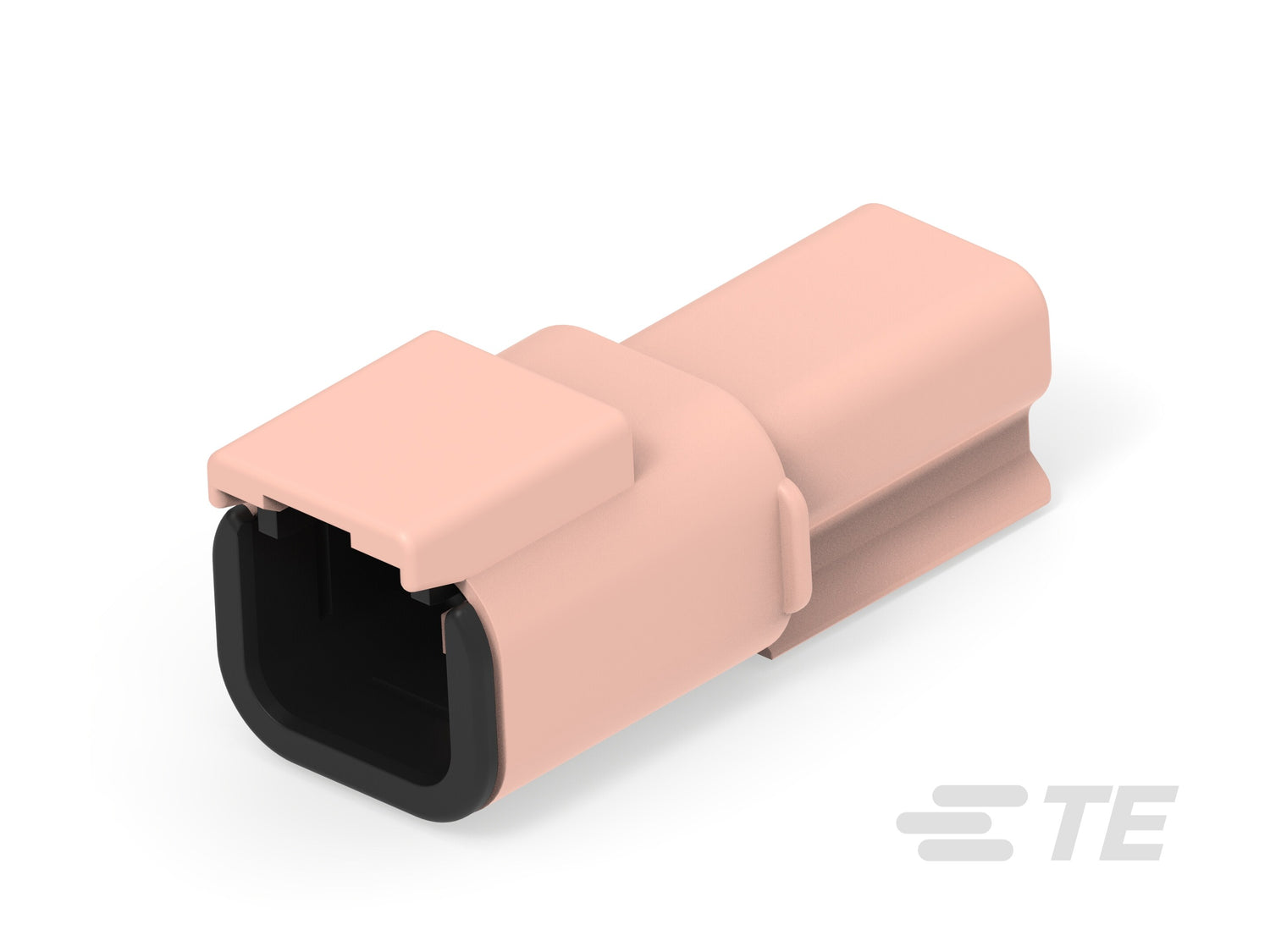

DTMH04-2PD - DTM Series
DTMH04-2PD delivers dependable connectivity within the DEUTSCH DT family, suited to harsh duty applications.
Used across heavy duty vehicles and exposed harness runs where durability matters. A straightforward solution when you need consistent performance without compromise.
Quantity price breaks
1+
$3.70/each
DTMH04-2PD - DTM Series
Regular price
$3.70
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | D |
| Primary product color | Black |
| Blank cavity position | 0 |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 7.5 A |
| Contact size | Size 20 |
| Contact type | Pin |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.62 in |
| Product length | .728 in |
| Product width | .638 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .165 in |
| Housing material | PA 46 GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Without |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 302 °F |
| Operating temperature range | -67 – 302 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
