Deutsch | SKU:
DTV06-18SC
DTV06-18SC - DTV Series

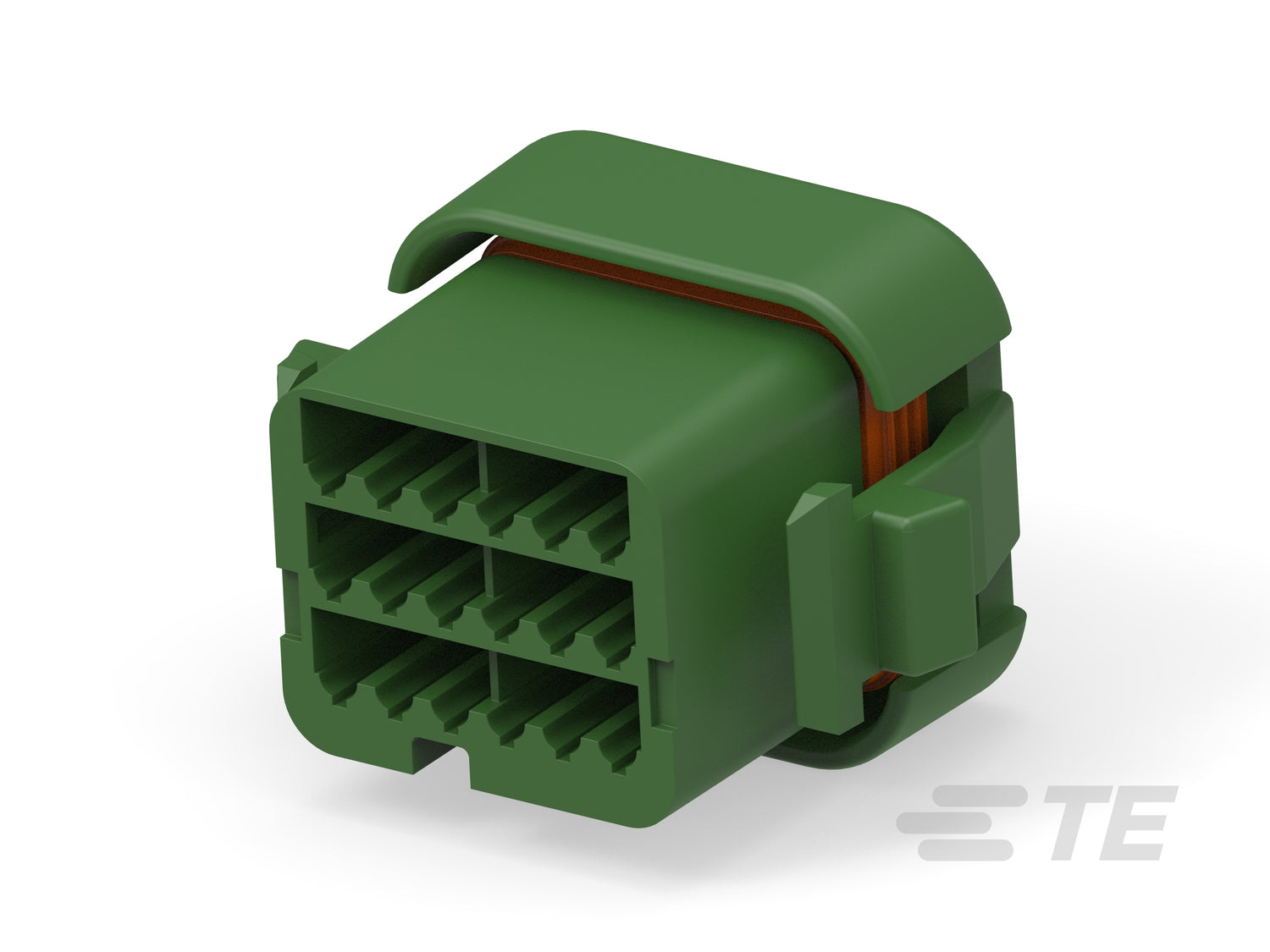

DTV06-18SC is a genuine Deutsch plug configured as DEUTSCH DTV, 18 way, keying C, green. When a loom has to survive real world abuse, this part earns its keep.
- Housing material: PA GF
- Keying code: C
- Temperature range: -67 – 257 °F
- IP rating: Not Tested
- Colour: Green
- Positions: 18
- Series: DEUTSCH DTV
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It is engineered for consistent mating and long term durability. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$25.16/each
50+10% off
$22.64/each$25.16
100+19% off
$20.38/each$25.16
DTV06-18SC - DTV Series
Regular price
$25.16
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | C |
| Primary product color | Green |
| Number of positions | 18 |
| Number of rows | 3 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.417 in |
| Product length | 1.405 in |
| Product width | 2.108 in |
| Row to row spacing | .3 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 200 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
