Deutsch | SKU:
0413-217-1605

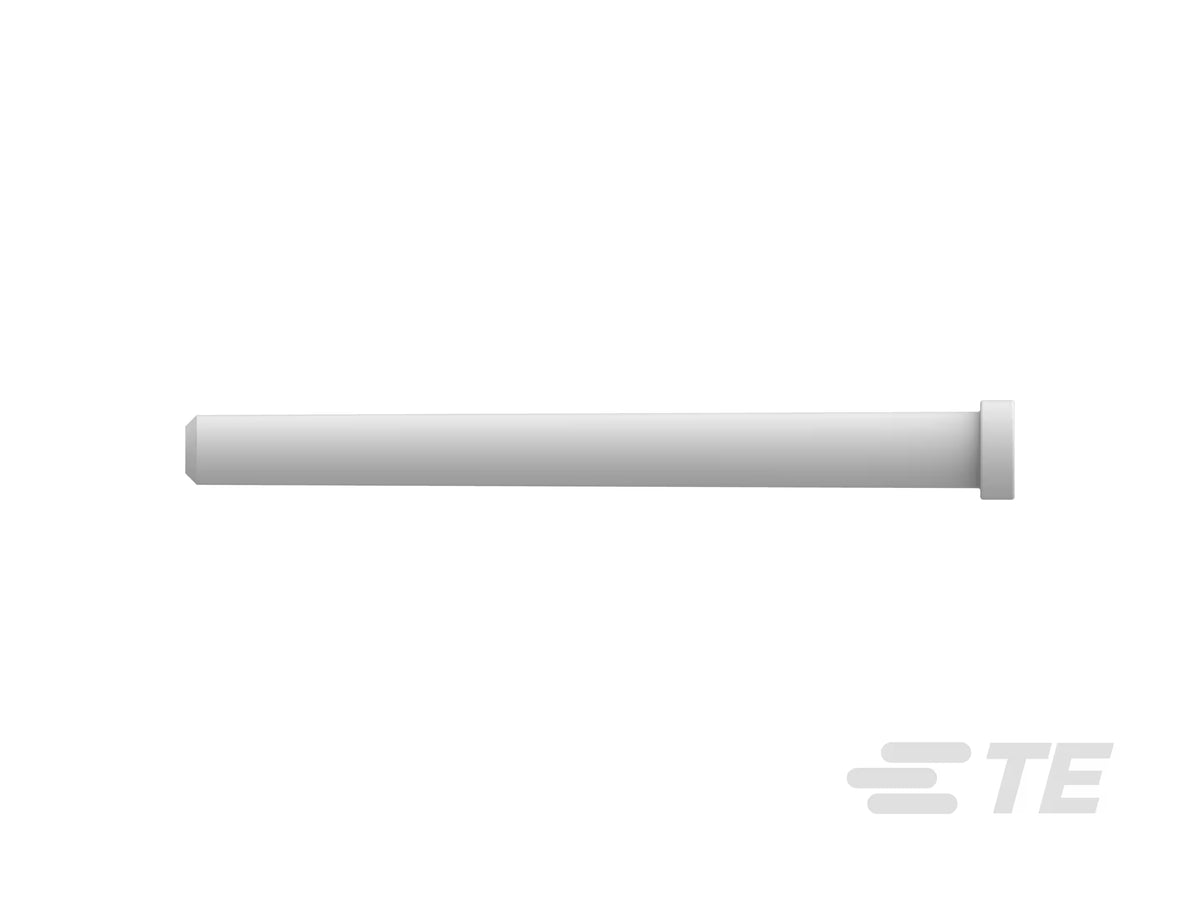

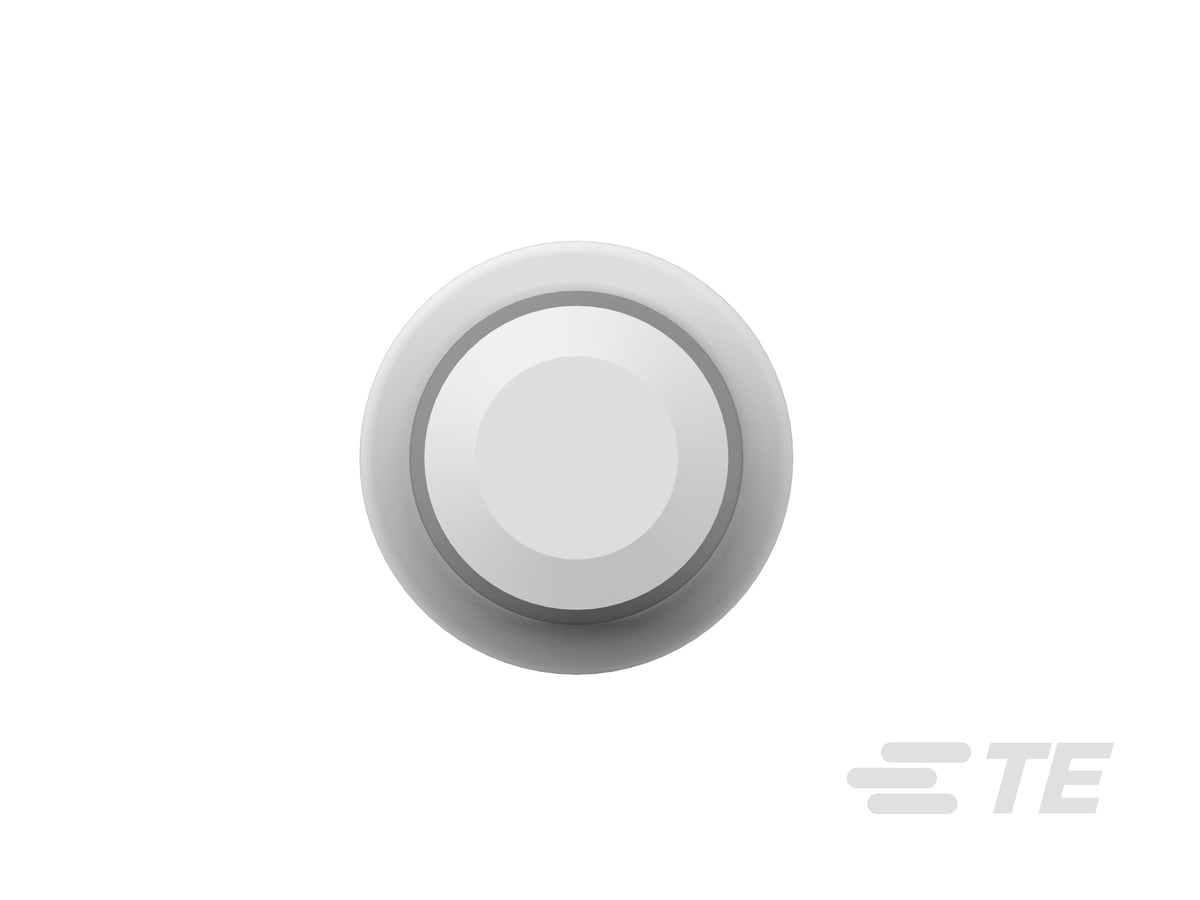

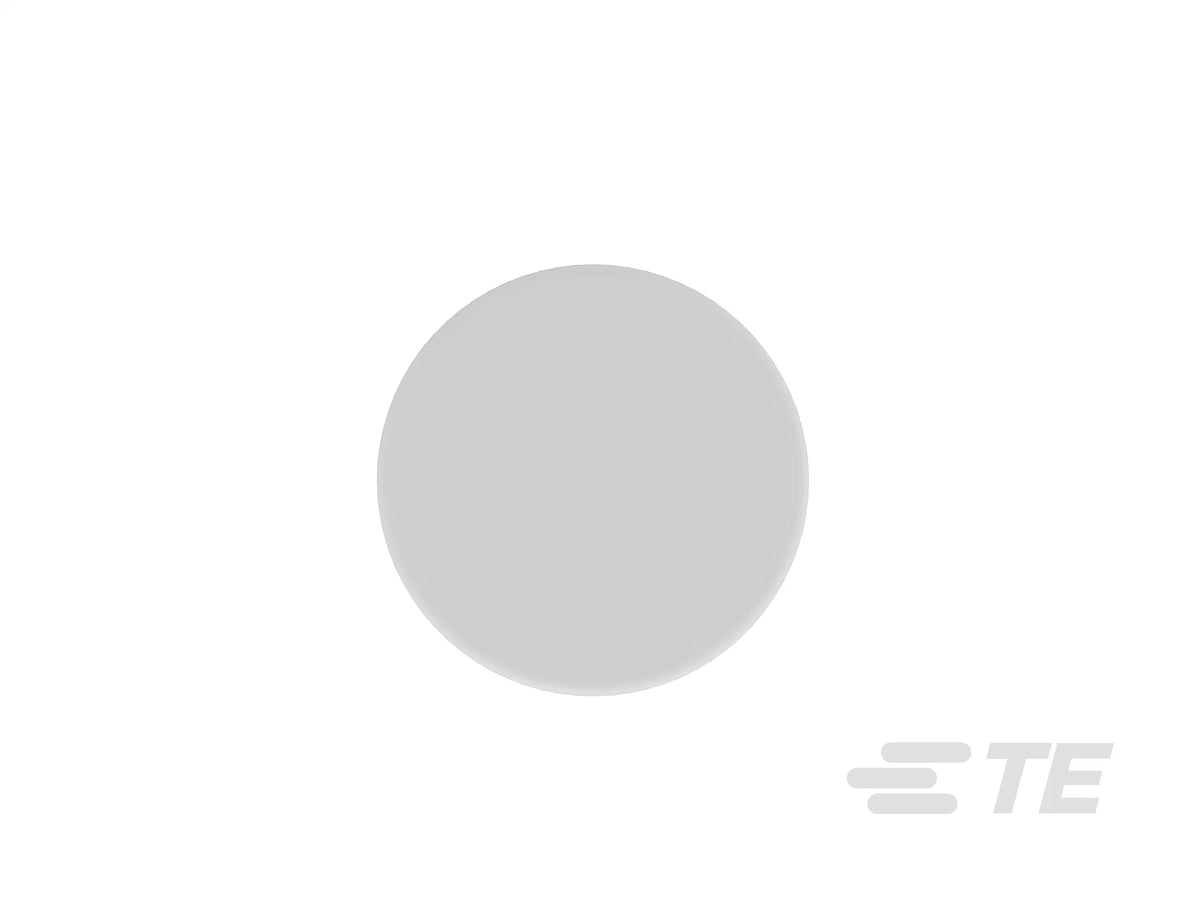

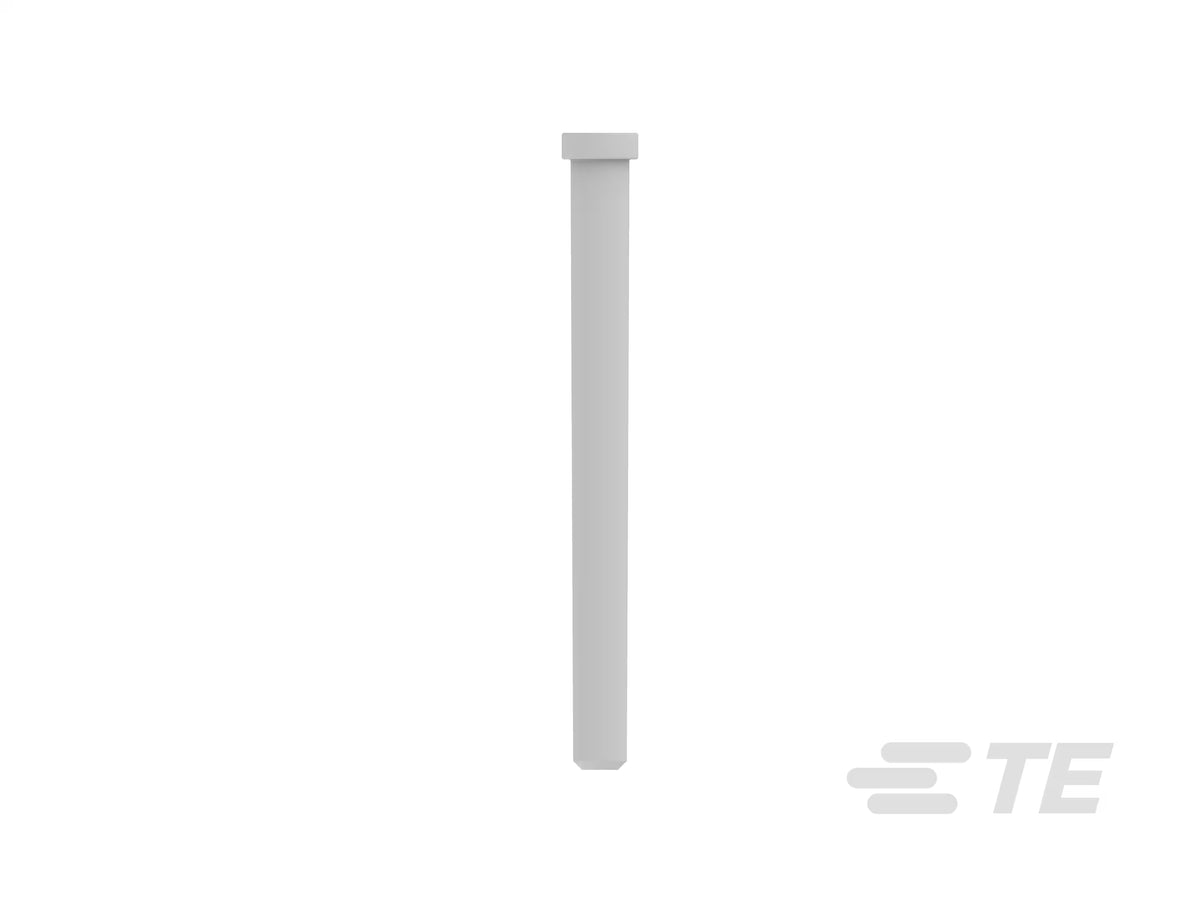

0413-217-1605 Deutsch HD30 Size 16 Locking Sealing Plug - White
0413-217-1605 Deutsch Size 16 Locking Sealing Plug is a white PBT GF30 cavity plug designed to close unused Size 16 contact positions and help preserve connector sealing.
The locking design is retained by locking fingers, making it suitable where an unused cavity needs a positive mechanical hold rather than a simple push-in seal; operating temperature is -55 to 125°C.
Choose 0413-217-1605 when a Size 16 cavity requires a locking sealing plug for a secure, serviceable closure in a compatible DEUTSCH connector assembly.
- Product type: Locking sealing plug
- Contact cavity size: Size 16
- Colour: White
- Material: PBT GF30
- Retention: Locking fingers
- Operating temperature: -55 to 125°C
- UL flammability rating: UL 94V-0
- Lubricant: None
Quantity price breaks
1+
$0.41/each
50+7% off
$0.38/each$0.41
100+7% off
$0.38/each$0.41
500+24% off
$0.31/each$0.41
1000+24% off
$0.31/each$0.41
5000+29% off
$0.29/each$0.41
0413-217-1605 Deutsch HD30 Size 16 Locking Sealing Plug - White
Regular price
$0.41
Unit price
Unavailable
Technical Documentation
Product Specifications
| Primary product color | White |
| Primary product material | PBT GF30 |
| Ul flammability rating | UL 94V-0 |
| Packaging method | Box |
| Packaging quantity | 1 |
| Connector seal plug type | Sealing Plug |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Contains lubricant | No |
