Deutsch | SKU:
CN21

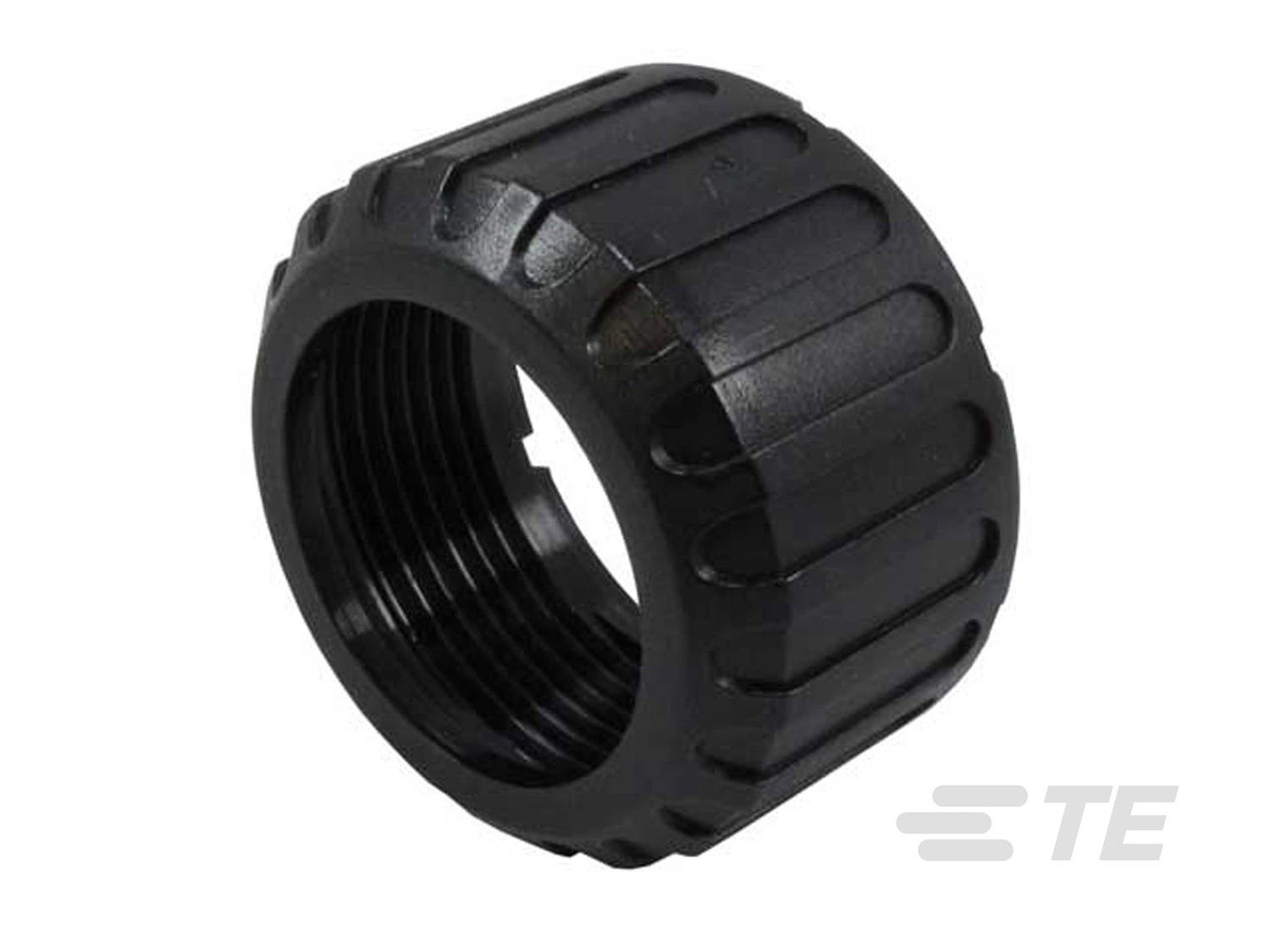

CN21 - HD Series
The CN21 is a professional grade heavy duty circular connector housing created for robust connector assemblies in equipment exposed to vibration, dirt and routine service work. Within the DEUTSCH HD family, it supports robust connector assembly for equipment that needs dependable mating stability, harness retention and long term serviceability.
- Built for rugged HD series connector installations
- Supports dependable cable mounted assembly work
- Helps deliver a secure fit in heavy duty service environments
Quantity price breaks
1+
$15.03/each
50+10% off
$13.53/each$15.03
100+19% off
$12.17/each$15.03
CN21 - HD Series
Regular price
$15.03
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Primary product material | PA GF |
| Compatible cable bundle diamet | 0 – .866 in |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Strain relief | With |
| Packaging method | Box |
| Protection strain relief acces | Cap |
| Sealable | No |
| Compatible with connector styl | Receptacle |
| Operating temperature max | 273 °F |
| Operating temperature range | -40 – 273 °F |
| Serviceable | Yes |
