Deutsch | SKU:
HDB36-24-91SN

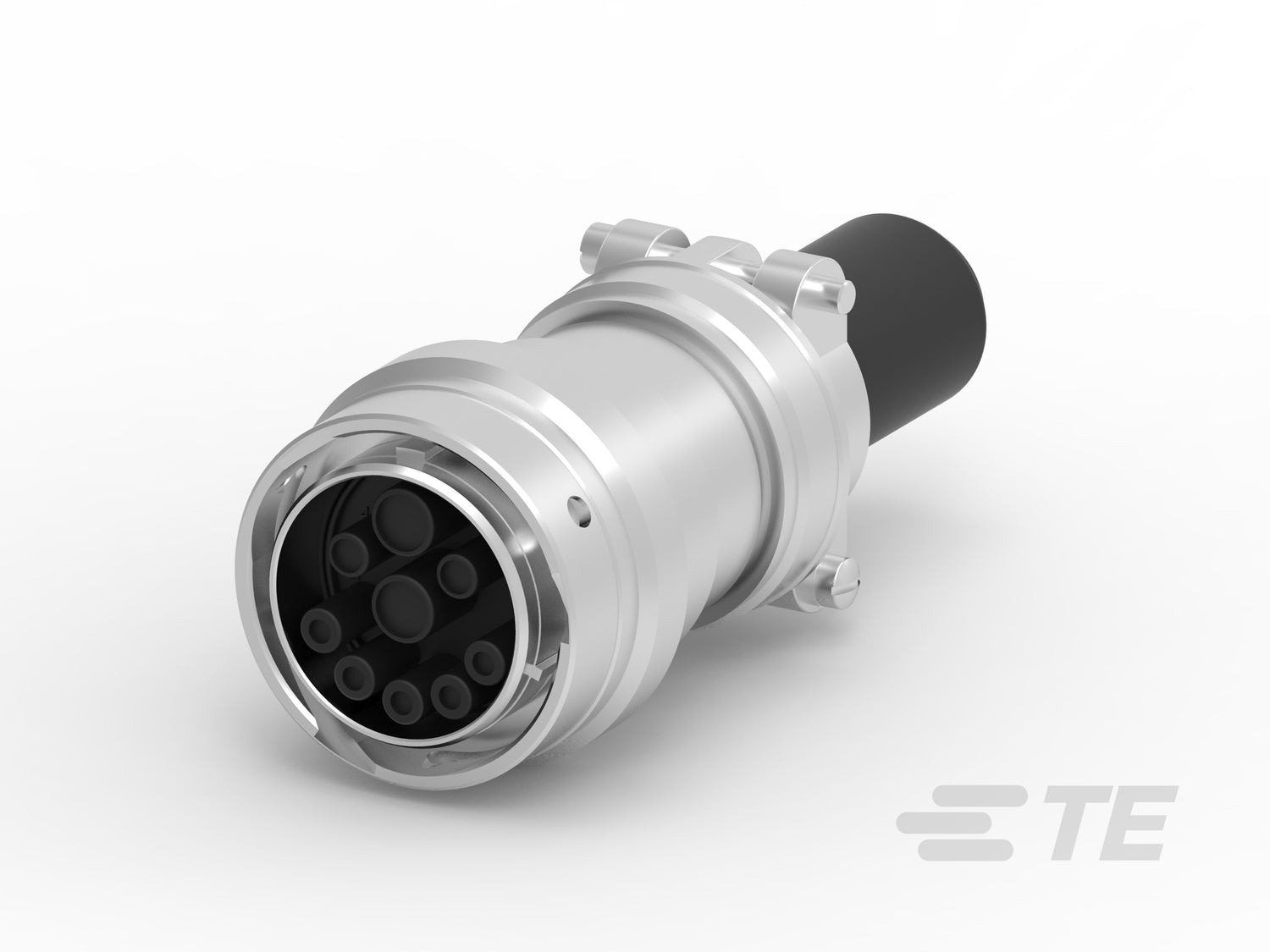

HDB36-24-91SN - HD Series
The HDB36-24-91SN is a professional grade 24 position heavy duty circular connector housing created for robust connector assemblies in equipment exposed to vibration, dirt and routine service work. For heavy duty circular connector builds in the DEUTSCH HDB range, it helps deliver secure cable mounted connections with the rugged feel expected in industrial and off highway use.
- Built for rugged HD series connector installations
- Supports dependable cable mounted assembly work
- Helps deliver a secure fit in heavy duty service environments
Quantity price breaks
1+
$52.10/each
50+10% off
$46.89/each$52.10
HDB36-24-91SN - HD Series
Regular price
$52.10
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector modification | Cable Clamp |
| Connector seal code | N Seal |
| Number of positions | 9 |
| Contact current rating max | 60 A |
| Contact size | Size 8 |
| Contact type | Socket |
| Mating pin diameter | .142 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 3.19 in |
| Product length | 1.94 in |
| Product width | 1.94 in |
| Nominal voltage architecture | 12 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Guide Slot |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
