HDP26-24-19PN-L017
HDP26-24-19PN-L017 - HD Series

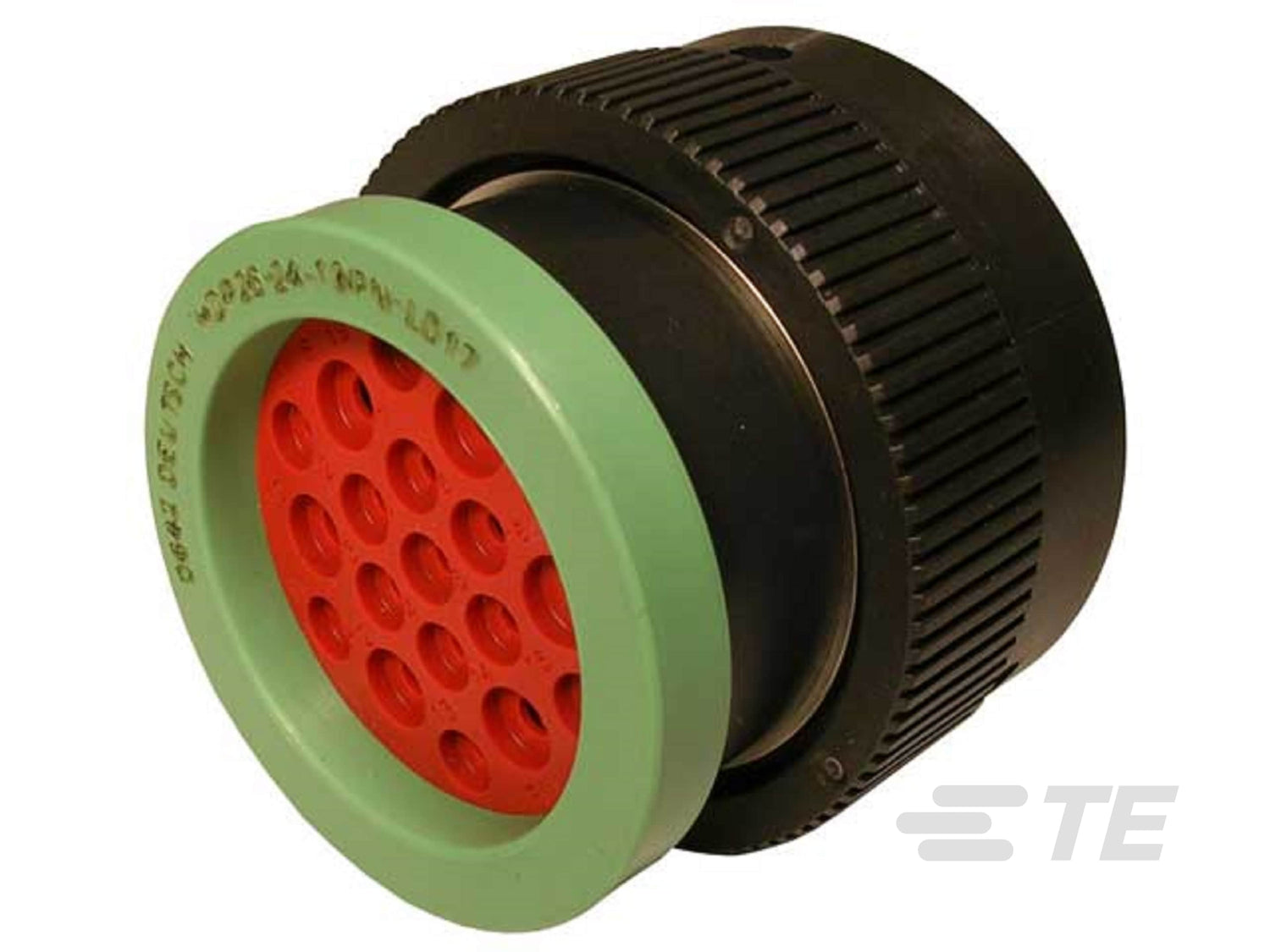

HDP26-24-19PN-L017 is a genuine Deutsch Deutsch HD series 19-way plug connector housing designed for dependable performance in harsh environment wiring looms.
Primary colour: Black. Operating temperature range: -67 – 257 °F.
Key features
- 19-way configuration
- Colour: Black
- UL flammability rating: UL 94V-0
- Operating temperature: -67 – 257 °F
- Compliance: EU RoHS Compliant
- Compliance: EU ELV Compliant
- Contact size: Size 16
Specifications
| Series | DEUTSCH HD |
|---|---|
| Connector type | Wire & Cable |
| Positions | 19 |
| Contact size | Size 16 |
| Contact type | Pin |
| Operating temperature | -67 – 257 °F |
| Primary colour | Black |
| UL flammability | UL 94V-0 |
| Terminal position assurance | No |
| Connector position assurance | No |
| RoHS | EU RoHS Compliant |
| ELV | EU ELV Compliant |
Typical applications include off-highway equipment, commercial vehicles, marine systems, motorsport, and industrial machinery where vibration, dust and moisture resistance matter.
Technical documents
- ARRANGEMENT OF CONTACT LOCATION OR HDP20 AND HD30 SERIES CONNECTORS SHELL SIZE 24
- PLUG, COUPLING RING SIZE 24, -L017 MOD HDP SERIES
- 3D PDF
Need help matching contacts, wedgelocks or compatible housings? Speak to our team and we’ll help you select the correct Deutsch DT parts.
Quantity price breaks
1+
$26.40/each
HDP26-24-19PN-L017 - HD Series
Regular price
$26.40
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Ring Adapter |
| Connector seal code | N Seal |
| Number of positions | 19 |
| Contact current rating max | 25 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 1.67 in |
| Product length | 1.95 in |
| Product width | 1.95 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Tray |
| Packaging quantity | 40 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
