Deutsch | SKU:
HDP24-24-14SN-L017

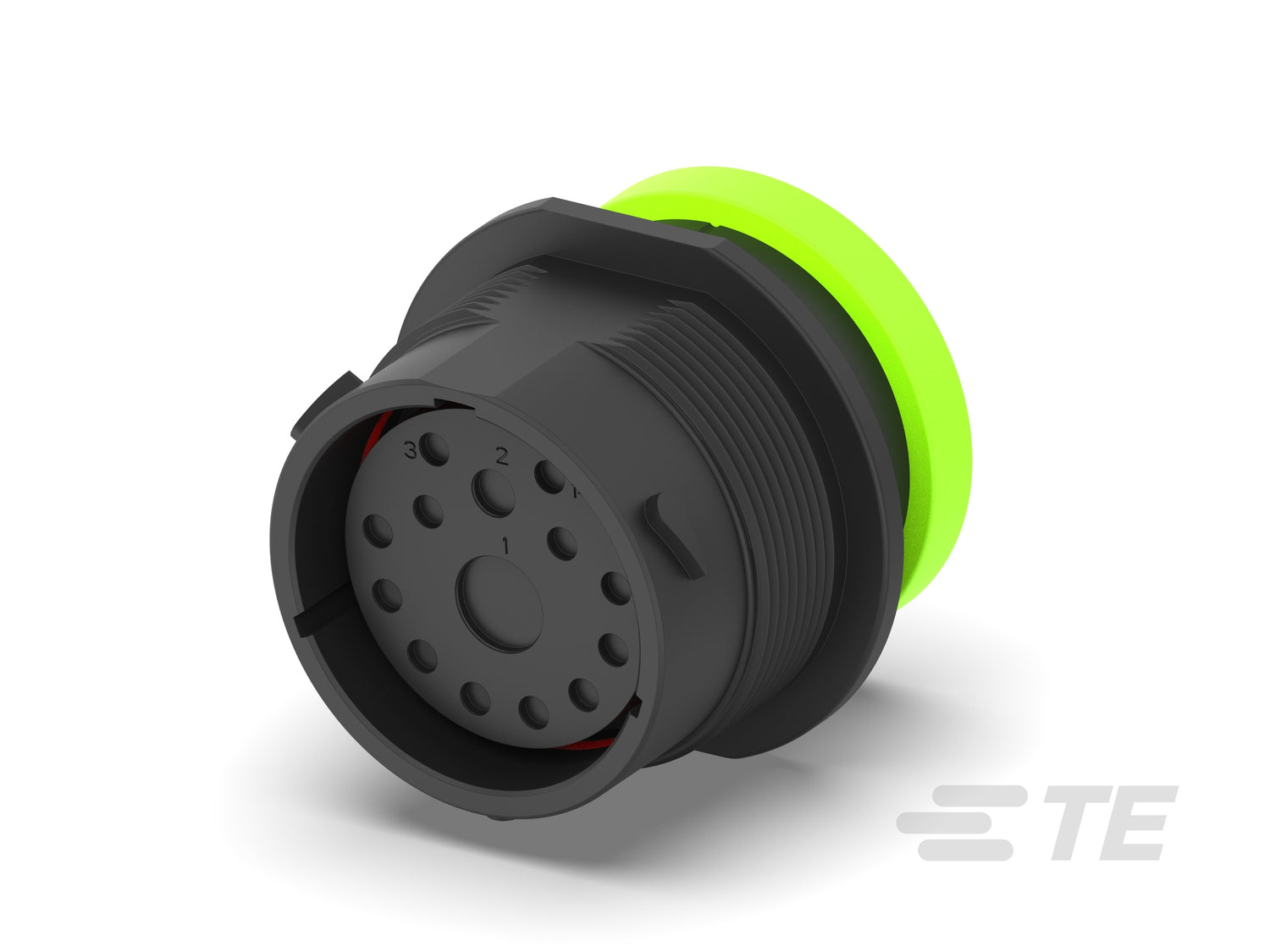

HDP24-24-14SN-L017 - HD30 Series
HDP24-24-14SN-L017 is a DEUTSCH DT connector built for reliable performance in demanding environments.
Designed for off highway equipment and industrial systems where sealing integrity and positive engagement are essential. Ideal for dependable OEM level repairs and new builds.
Quantity price breaks
1+
$23.94/each
50+10% off
$21.55/each$23.94
100+19% off
$19.39/each$23.94
HDP24-24-14SN-L017 - HD30 Series
Regular price
$23.94
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Ring Adapter |
| Connector seal code | N Seal |
| Number of positions | 14 |
| Contact current rating max | 100 A |
| Contact size | Size 4 |
| Contact type | Socket |
| Mating pin diameter | .225 in |
| Compatible insulation diameter | .28 – .292 in |
| Connector height | 1.875 in |
| Product length | 1.802 in |
| Product width | 2 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA GF |
| Ip rating | IP67 |
| Ul flammability rating | 20mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Guide Post |
| Strain relief | Add By Accessory |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
