Deutsch | SKU:
HDP24-24-23SN-L015

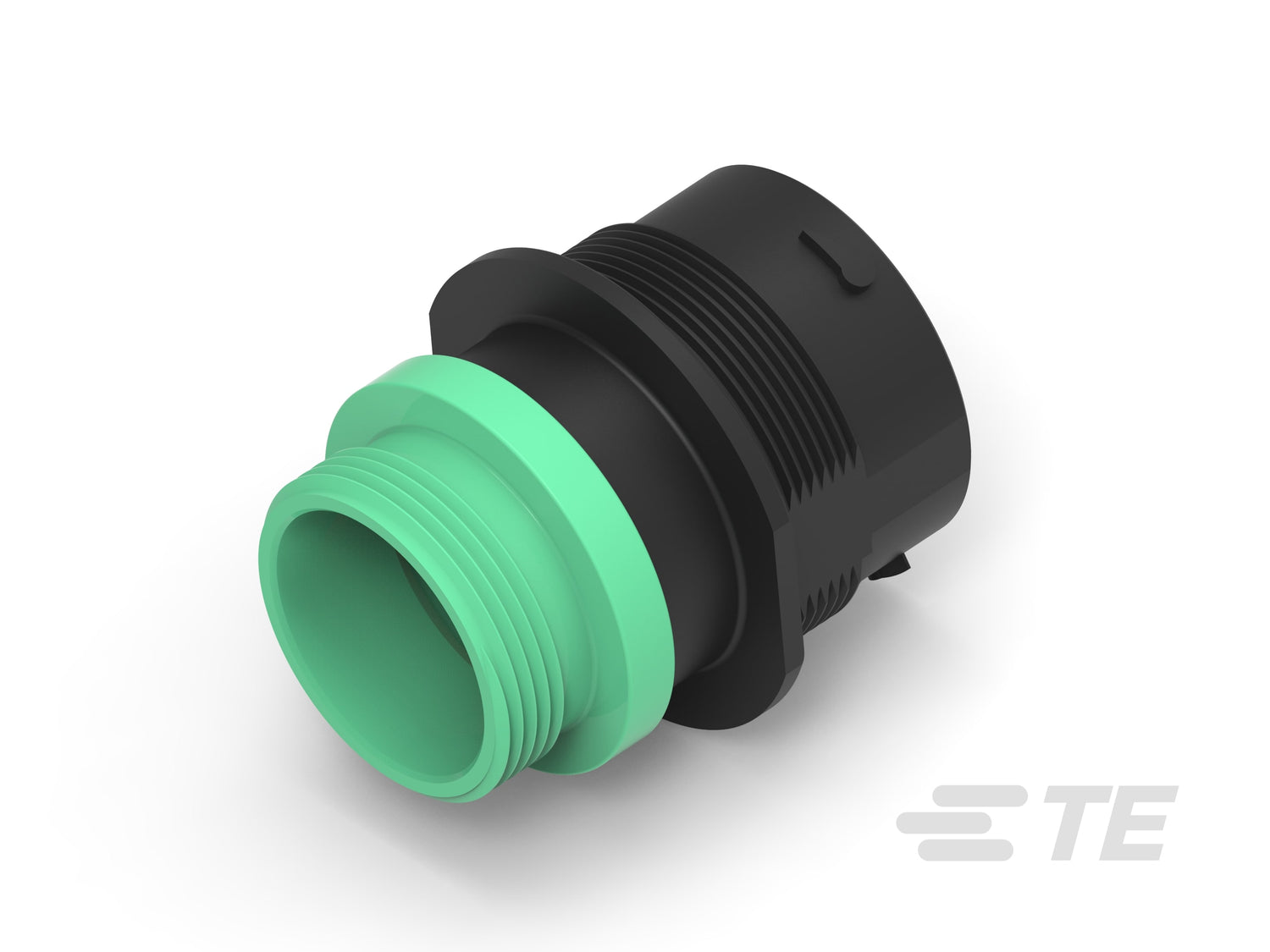

HDP24-24-23SN-L015 - HD30 Series
HDP24-24-23SN-L015 is a DEUTSCH DT connector built for reliable performance in demanding environments.
Well suited to commercial vehicles, agricultural machinery and plant equipment where vibration, moisture and dust are everyday challenges. A practical choice for professional harness builds.
Quantity price breaks
1+
$28.02/each
HDP24-24-23SN-L015 - HD30 Series
Regular price
$28.02
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Threaded Adapter |
| Connector seal code | N Seal |
| Number of positions | 23 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 2.31 in |
| Product length | 2 in |
| Product width | 1.87 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Tray |
| Packaging quantity | 150 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | No |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
