Deutsch | SKU:
HDP24-24-91PE-L015

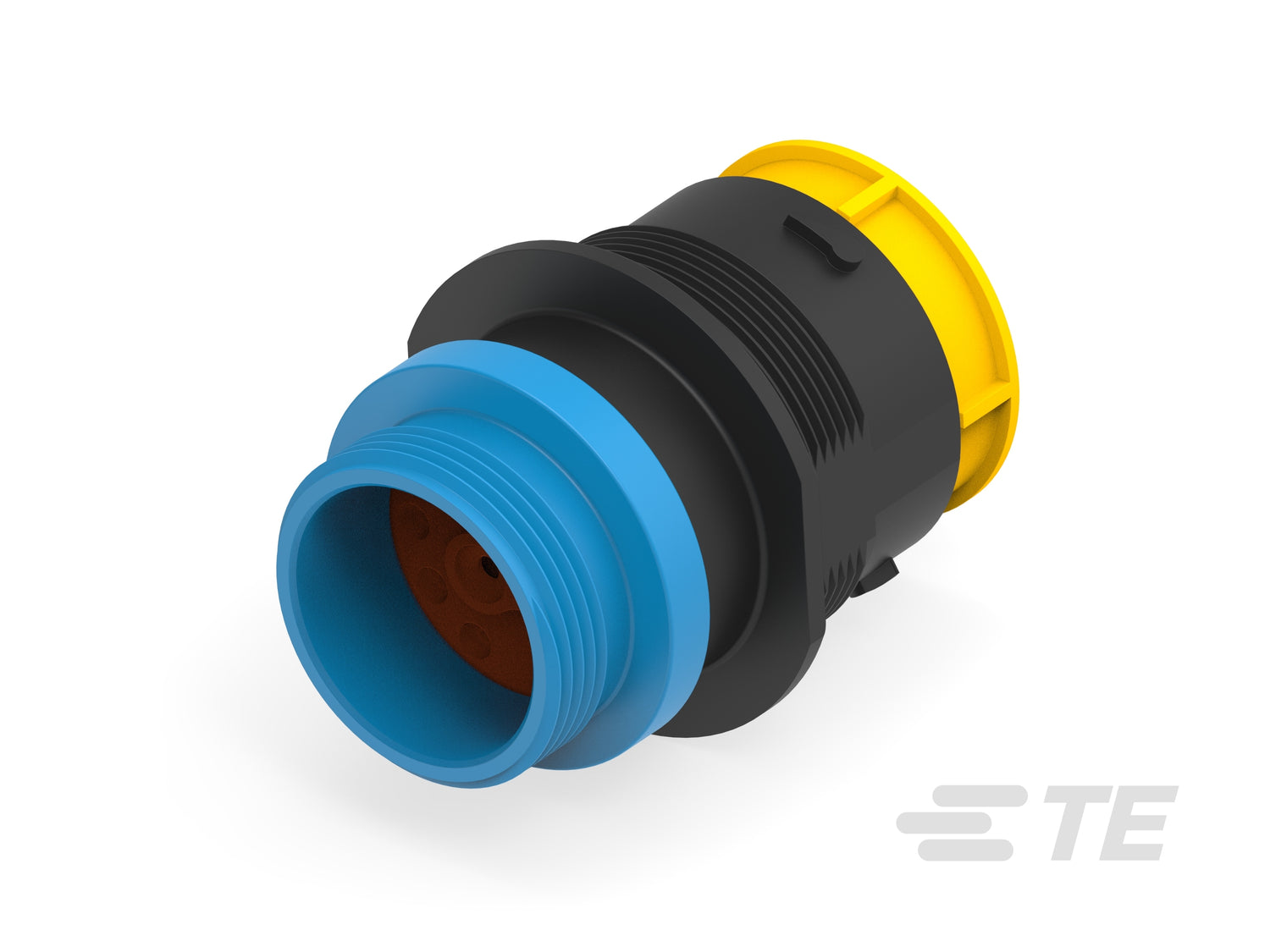

HDP24-24-91PE-L015 - HD30 Series
HDP24-24-91PE-L015 is a genuine Deutsch connector from the DEUTSCH HD30 range, built in a 9 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH HD30
- Positions: 9
- Coupling: Threaded
- Contact type: Pin
- Ingress protection: IP67
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$20.57/each
50+10% off
$18.51/each$20.57
100+19% off
$16.66/each$20.57
HDP24-24-91PE-L015 - HD30 Series
Regular price
$20.57
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Threaded Adapter |
| Connector seal code | E Seal |
| Number of positions | 9 |
| Contact current rating max | 60 A |
| Contact size | Size 8 |
| Contact type | Pin |
| Mating pin diameter | .142 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 2.31 in |
| Product length | 2 in |
| Product width | 1.87 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Tray |
| Packaging quantity | 30 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
