Deutsch | SKU:
HDP26-18-20SN-L017
Sold out

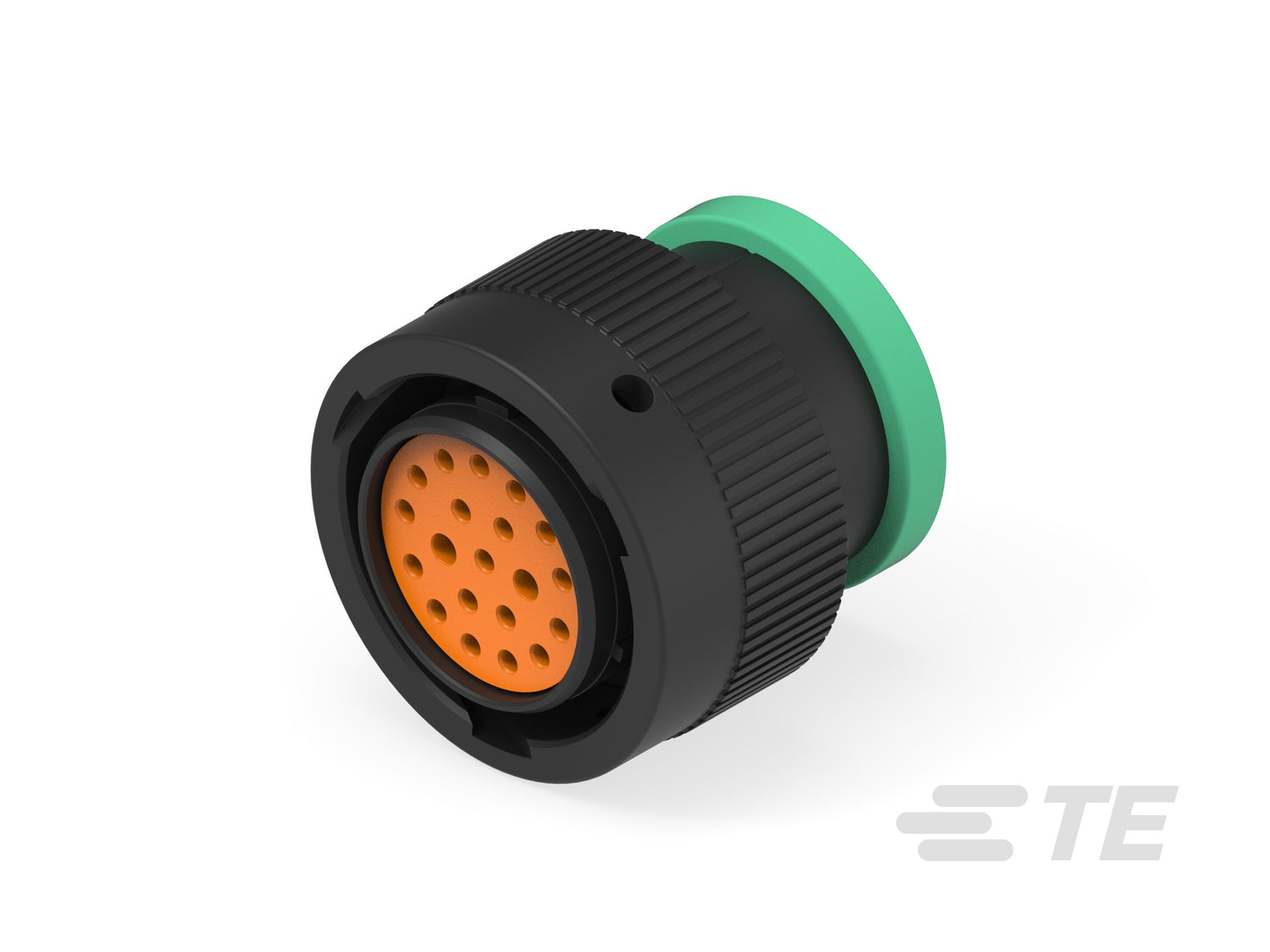

HDP26-18-20SN-L017 - HD30 Series
PLG, 20P, BLK, N, RNG, 16/20, S
HDP26-18-20SN-L017 is a genuine Deutsch HD30 plug used in rugged wiring looms where reliability matters. It is designed for demanding on- and off-highway environments, with secure locking and dependable sealing.
- Series: Deutsch HD30
- Positions: 20
- Colour: Black
- IP rating: IP67
- Operating temperature: -67 – 257 °F
- Sealable: Yes
- Serviceable: Yes
Typical applications
- Commercial vehicle, truck and bus
- Off-highway and agricultural machinery
- Construction and plant equipment
- Marine and industrial power systems
Why buy from Deutsch DT Connectors
- Specialist distributor support
- Quality-checked, genuine components
- Fast dispatch and reliable supply
Quantity price breaks
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector seal code | N Seal |
| Number of positions | 20 |
| Contact current rating max | 13 A |
| Contact size | Size 20 |
| Contact type | Socket |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 1.63 in |
| Product length | 1.7 in |
| Product width | 1.7 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
