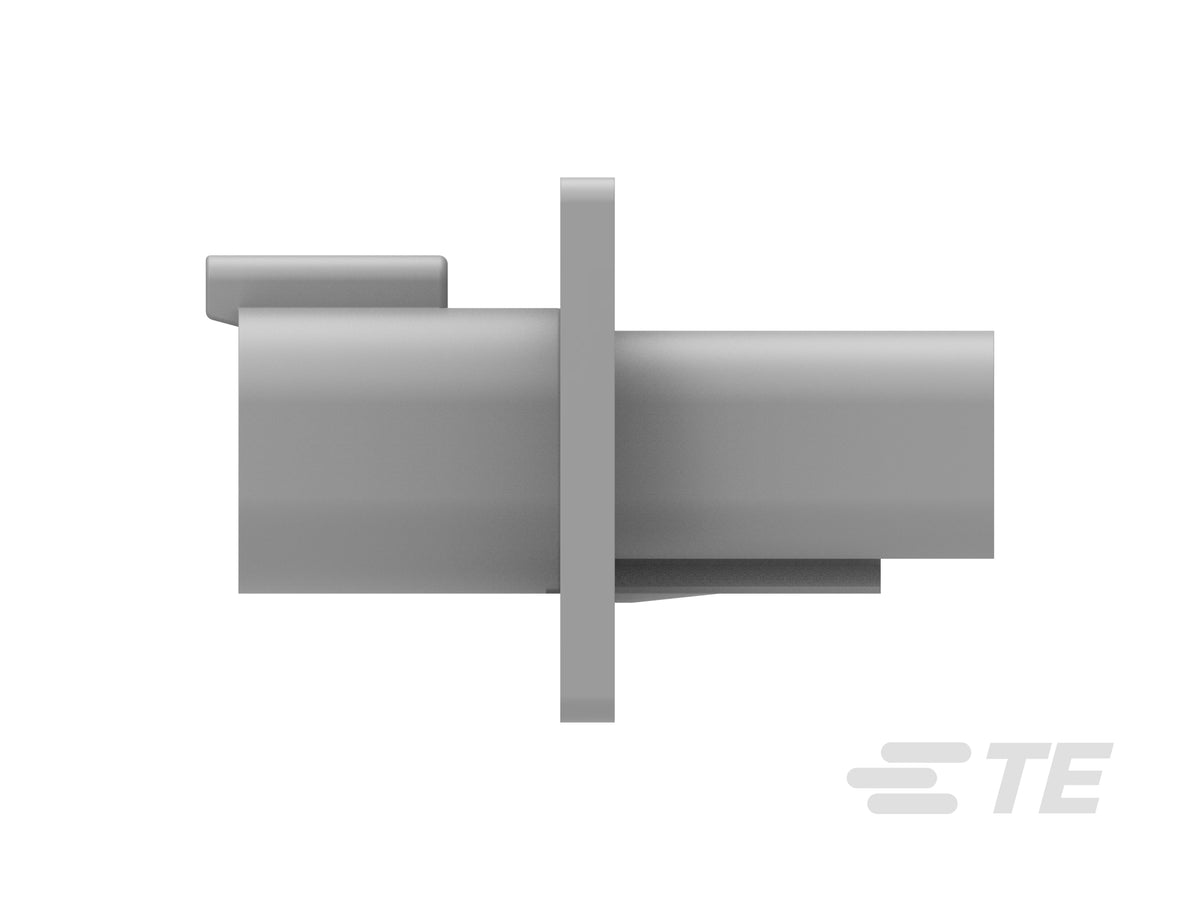

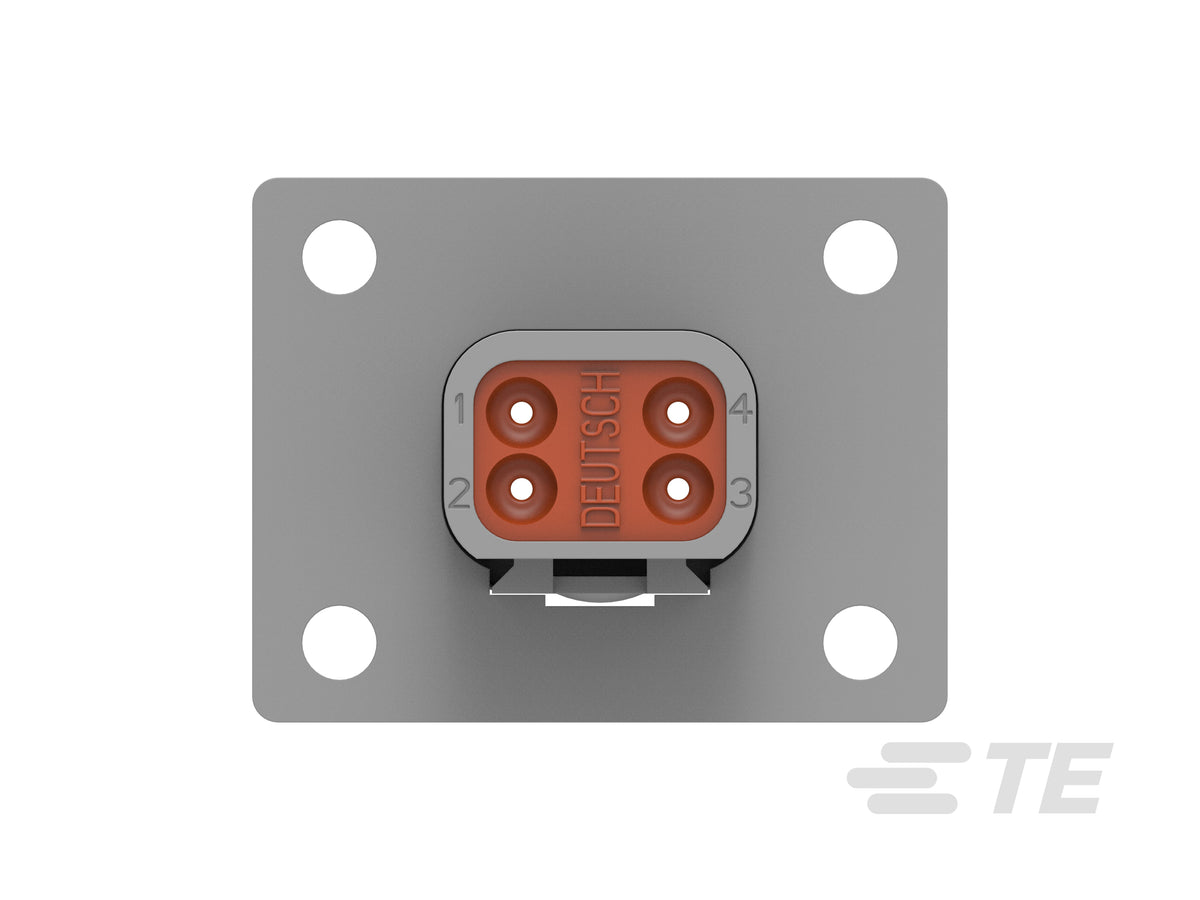

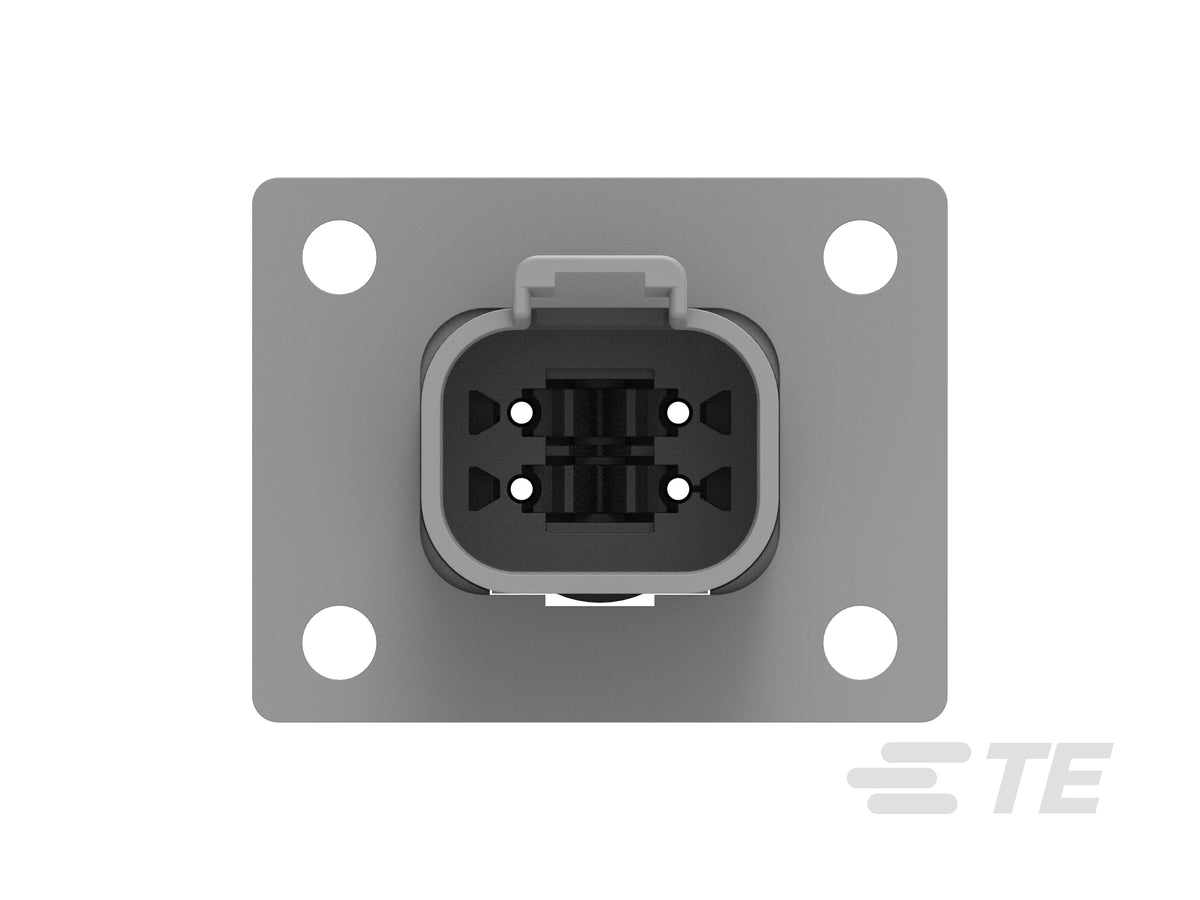

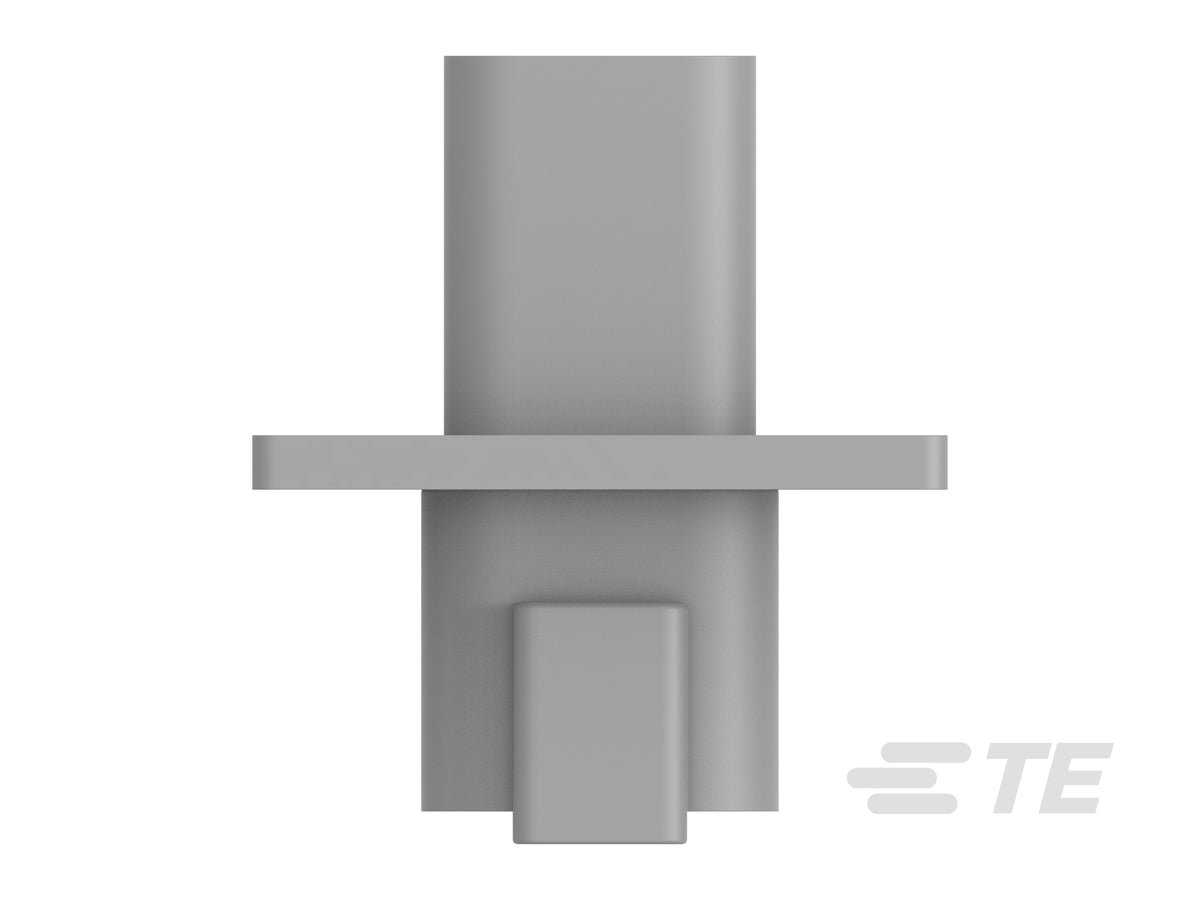

DT04-4P-L012 Deutsch DT 4-Way Welded-Flange Receptacle - Pin, N-Seal
DT04-4P-L012 Deutsch DT 4-Way Welded-Flange Receptacle - Pin, N-Seal is a 4-position DEUTSCH DT panel-mount receptacle housing for Size 16 pin contacts, configured with the L012 welded flange.
The receptacle is rated up to 13 A per contact and 250 V AC/DC and provides IP68/IP6K9K environmental protection when assembled correctly. The welded-flange configuration is intended for fixed mounting where the connector interface passes through a panel or enclosure.
Choose DT04-4P-L012 when a 4-way DT pin receptacle is required with the L012 welded-flange panel-mount configuration rather than the standard free-hanging housing.
Typical applications include off-highway equipment, commercial vehicles, marine systems, motorsport and industrial machinery where vibration, dust and moisture resistance are important.
- Series: DEUTSCH DT
- Connector: Receptacle
- Positions: 4
- Contact type: Pin
- Contact size: Size 16
- Mounting: Panel mount
- Modification: Welded flange (L012)
- Seal: N-Seal
- Maximum contact current: 13 A
- Operating voltage: 250 V AC/DC
- IP rating: IP68 / IP6K9K
Dimensions
- Connector Height: 31.75 mm (1.25 in)
- Product Length: 45.92 mm (1.808 in)
- Product Width: 40.51 mm (1.595 in)
- Compatible Insulation Diameter: 2.23 to 3.68 mm (0.088 to 0.145 in)
- Row-to-Row Spacing: 9.12 mm (0.359 in)
Need help matching contacts, wedgelocks or compatible housings? Speak to our team and we'll help you select the correct Deutsch parts.
Quantity price breaks
DT04-4P-L012 Deutsch DT 4-Way Welded-Flange Receptacle - Pin, N-Seal
Technical Documentation
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Welded Flange |
| Number of positions | 4 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.25 in |
| Product length | 1.808 in |
| Product width | 1.595 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .176 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
