Deutsch | SKU:
DT06-2S

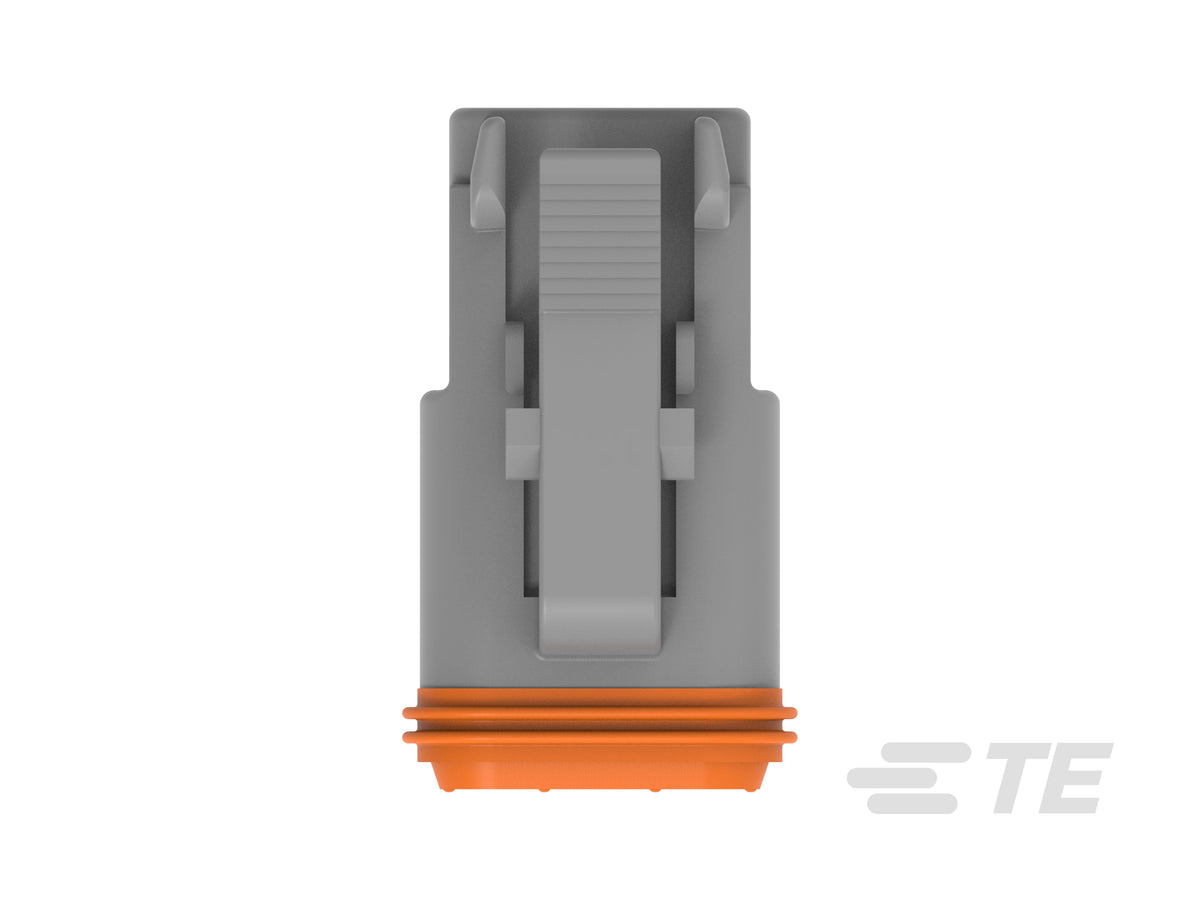

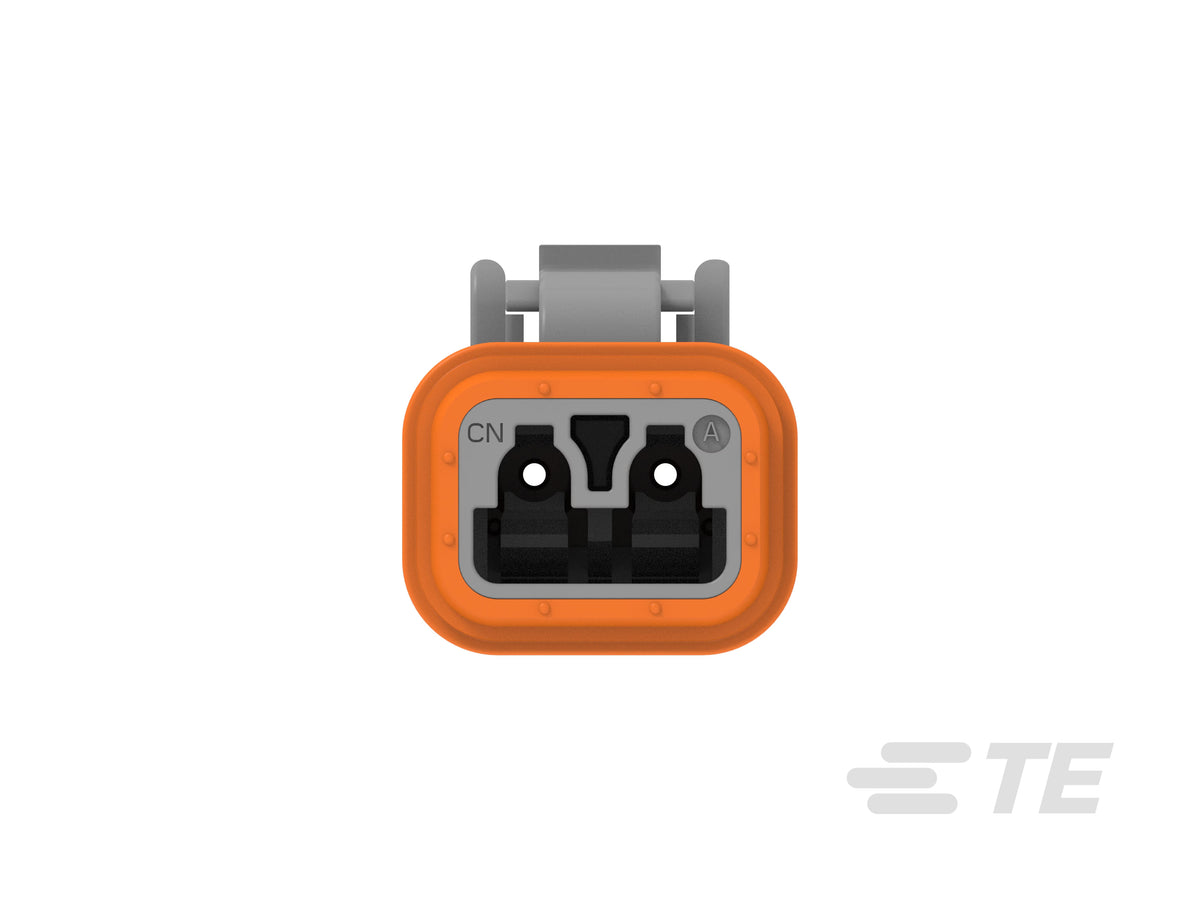

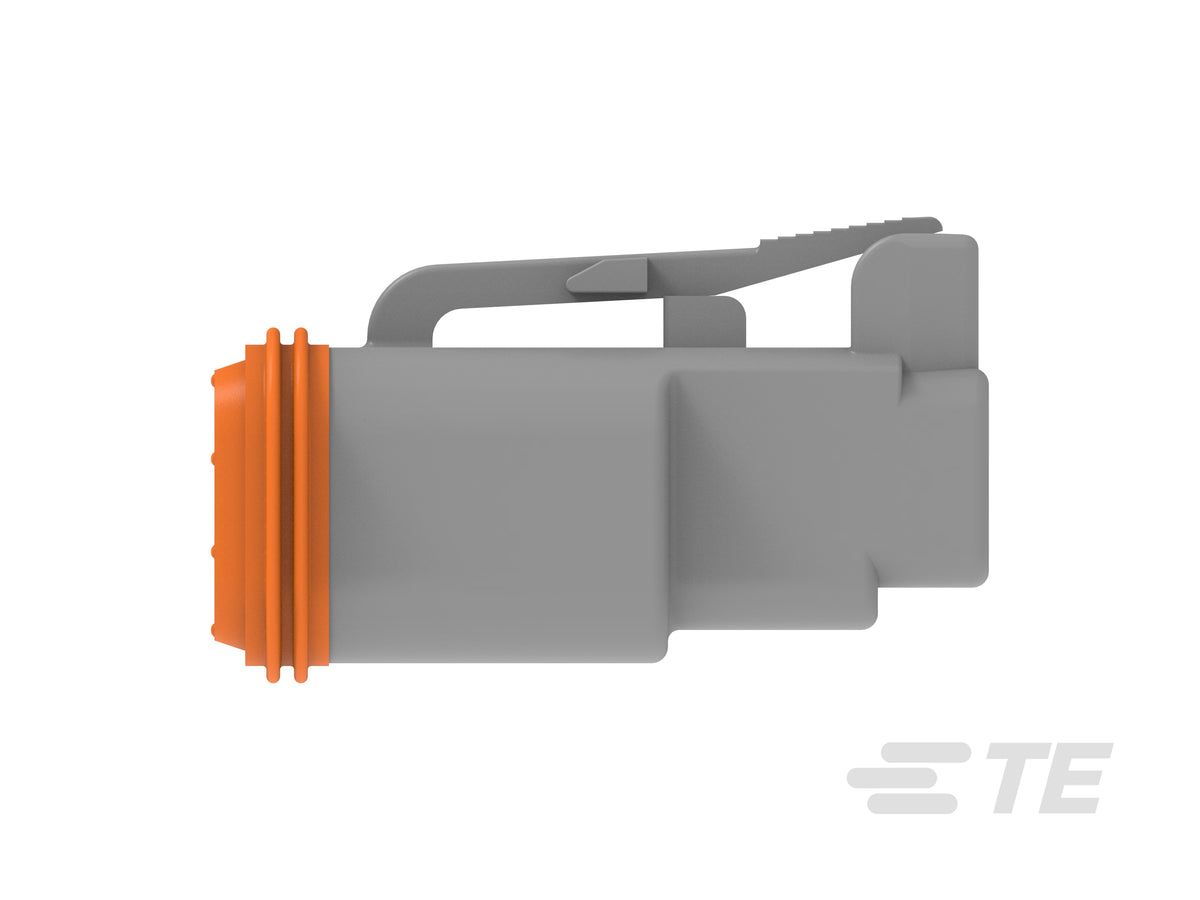

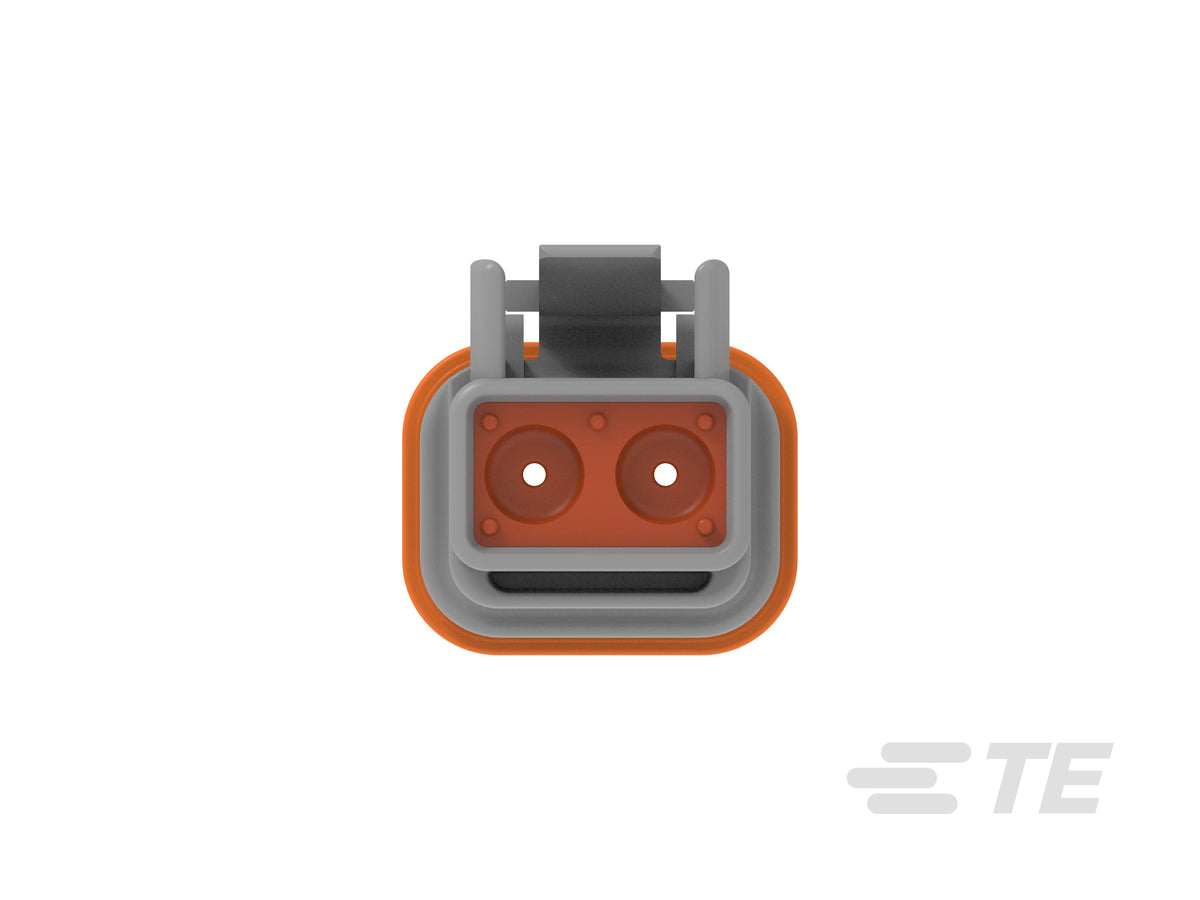

DT06-2S Deutsch DT 2-Way Plug Housing - Sockets, N-Seal
DT06-2S Deutsch DT 2-Way Plug Housing is a gray, sealed wire-to-wire housing for two Size 16 socket contacts in the standard N-seal configuration.
The free-hanging housing is rated to 250 V and up to 13 A per contact, with terminal position assurance, IP68/IP6K9K protection and a -55 to 125°C operating range.
Choose DT06-2S when a standard 2-position DT socket plug is required, rather than an E-seal, enhanced-seal-retention or other modified DT06-2S variant.
- Series: DEUTSCH DT
- Connector: Plug housing
- Positions: 2
- Contact type: Socket
- Contact size: Size 16
- Seal: N-Seal
- Mounting: Free-hanging (in-line)
- Terminal position assurance: Yes
- Operating voltage: 250 V
- Max contact current: 13 A
- IP rating: IP68 / IP6K9K
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$0.83/each
50+16% off
$0.70/each$0.83
100+20% off
$0.66/each$0.83
500+24% off
$0.63/each$0.83
1000+28% off
$0.60/each$0.83
5000+31% off
$0.57/each$0.83
DT06-2S Deutsch DT 2-Way Plug Housing - Sockets, N-Seal
Regular price
$0.83
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .087 – .144 in |
| Connector height | .621 in |
| Product length | 1.118 in |
| Product width | .591 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .215 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1800 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
