Deutsch | SKU:
W4S

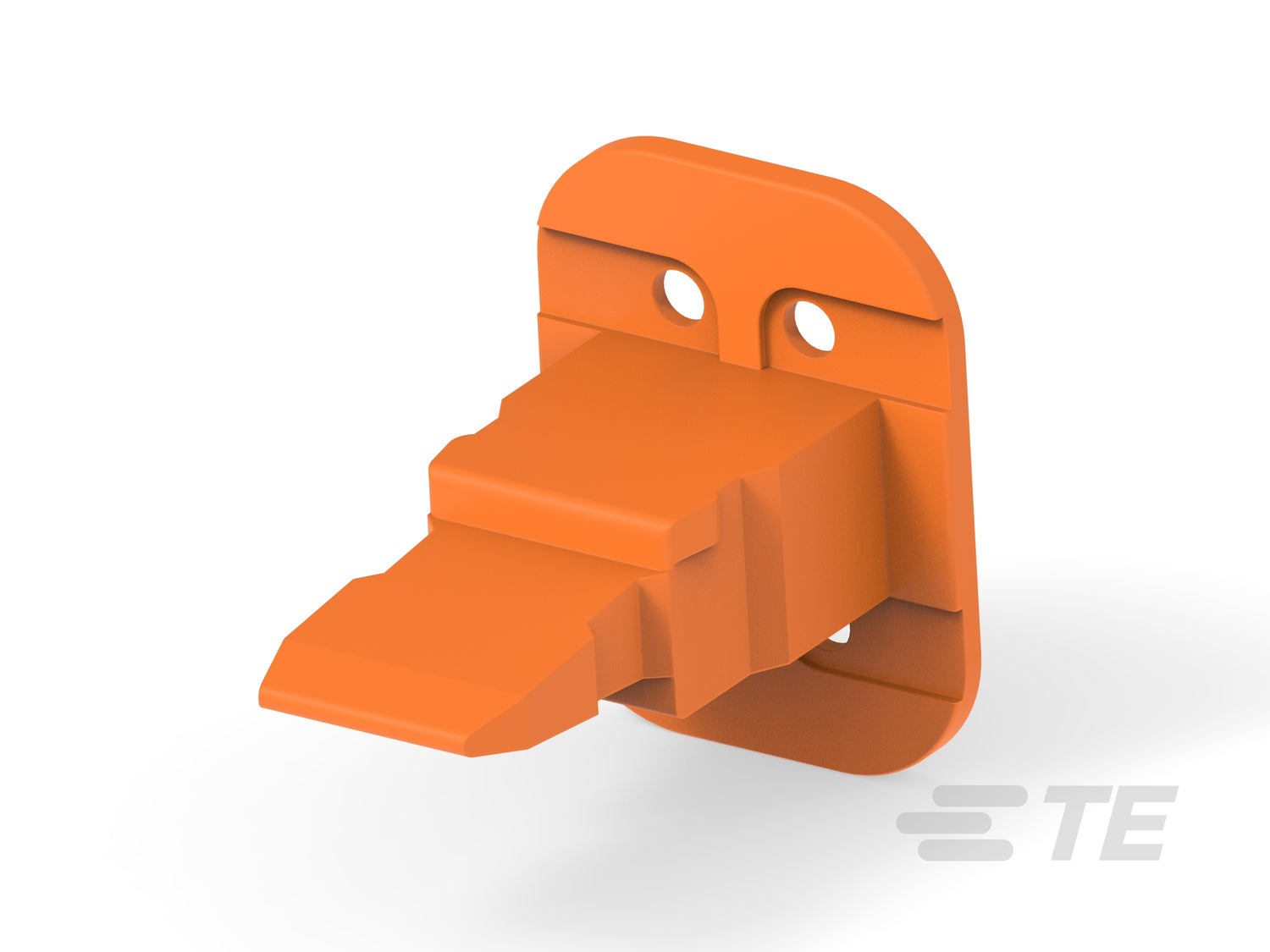

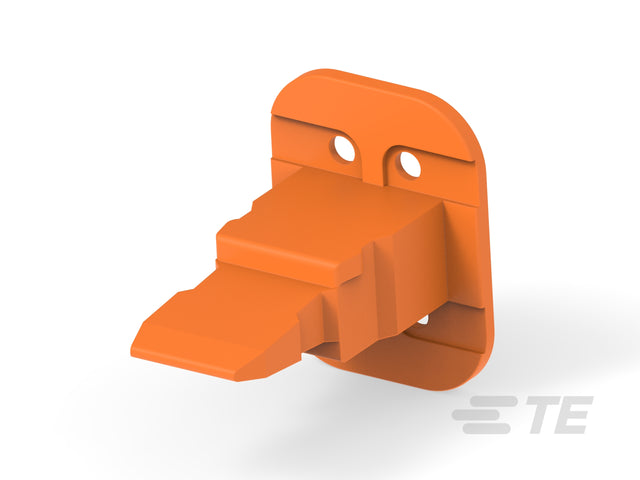

W4S Deutsch DT 4-Way Socket-Side Wedgelock
W4S is a DEUTSCH DT 4-position orange wedgelock used as the secondary lock at the mating face of standard 4-way DT plug housings.
The PBT lock helps confirm contact alignment and retention after terminals are installed and is designed specifically for standard DT Series plug housings.
Choose W4S for the standard 4-way DT plug configuration; use W4S-P012 instead where the mating housing uses the enhanced seal-retention variant.
Specifications
- Series: DEUTSCH DT
- Accessory: Wedgelock / secondary lock
- Positions: 4
- For use with: DT Series plug housings
- Color: Orange
- Material: PBT
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$0.21/each
50+5% off
$0.20/each$0.21
100+10% off
$0.19/each$0.21
500+33% off
$0.14/each$0.21
1000+38% off
$0.13/each$0.21
5000+52% off
$0.10/each$0.21
W4S Deutsch DT 4-Way Socket-Side Wedgelock
Regular price
$0.21
Unit price
Unavailable
Product Specifications
| Primary product color | Orange |
| Primary product material | PBT |
| Number of positions | 4 |
| Ul flammability rating | UL 94HB |
| Packaging method | Box |
| Packaging quantity | 5000 |
| Connector contact retention ac | Secondary Lock |
| Sealable | No |
| Operating temperature range | -67 – 257 °F |
| Serviceable | Yes |
