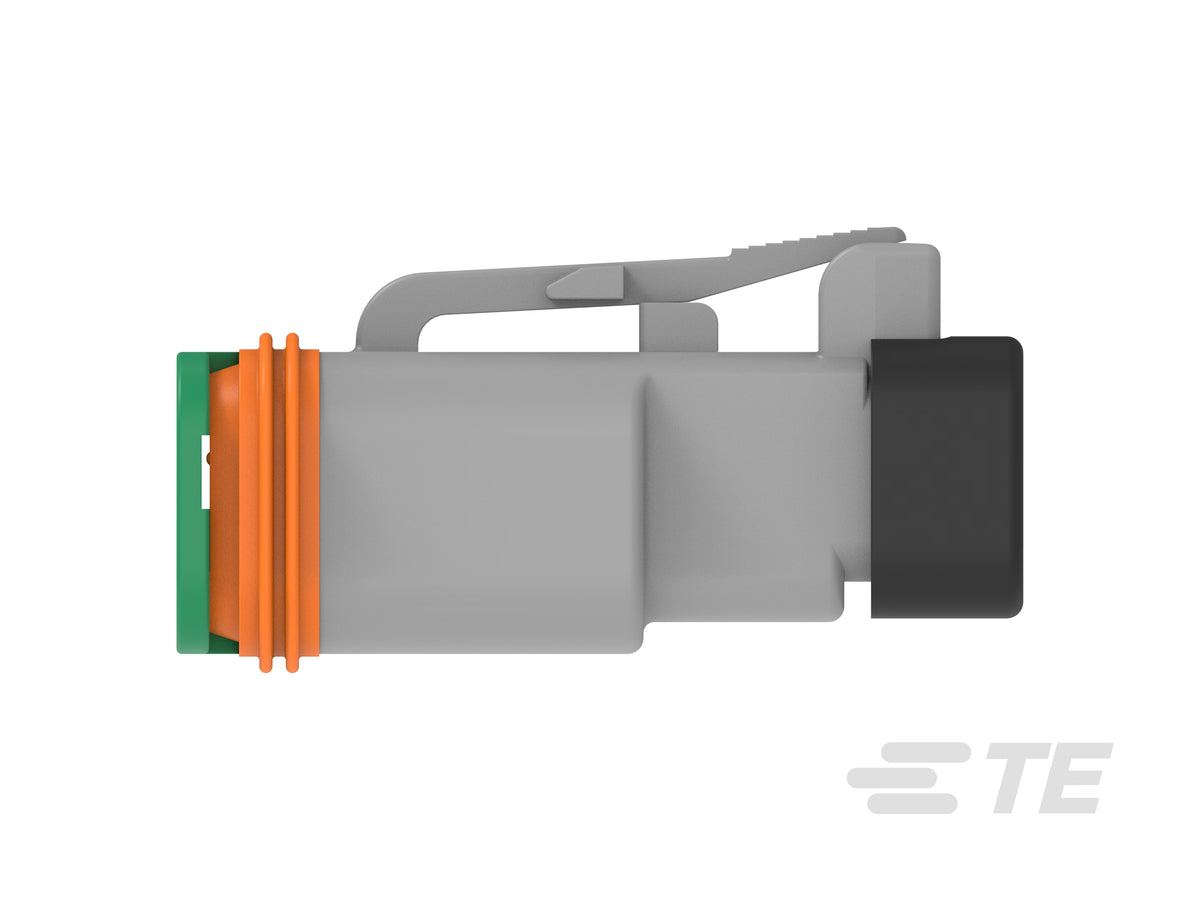

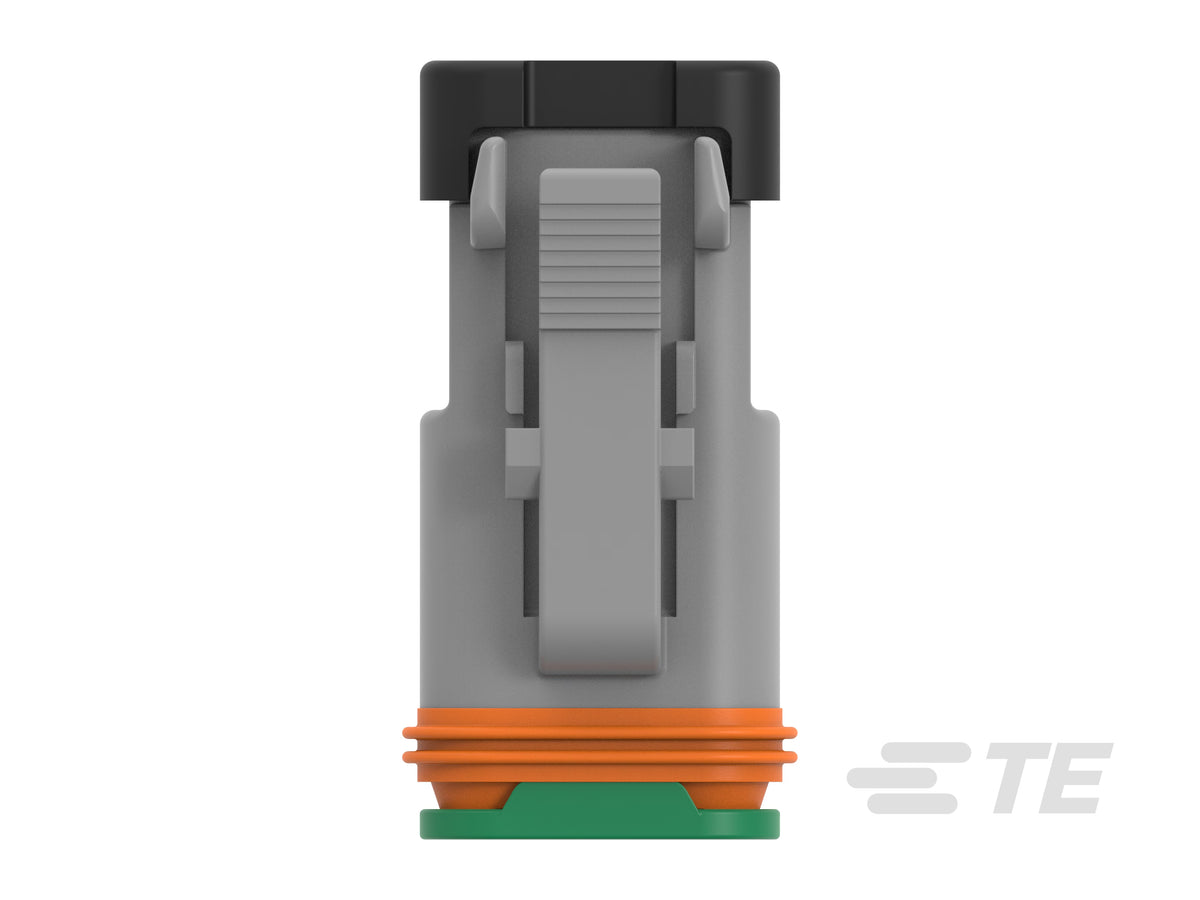

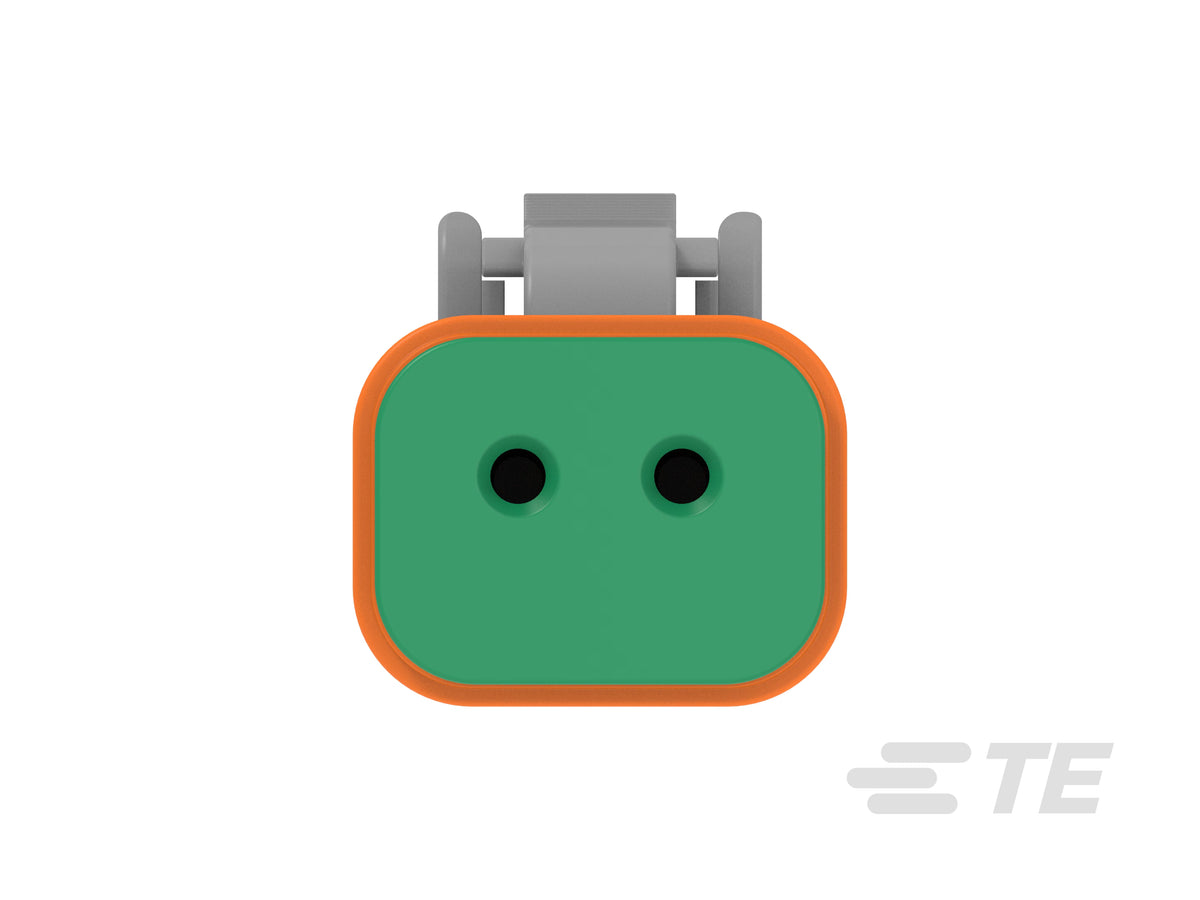

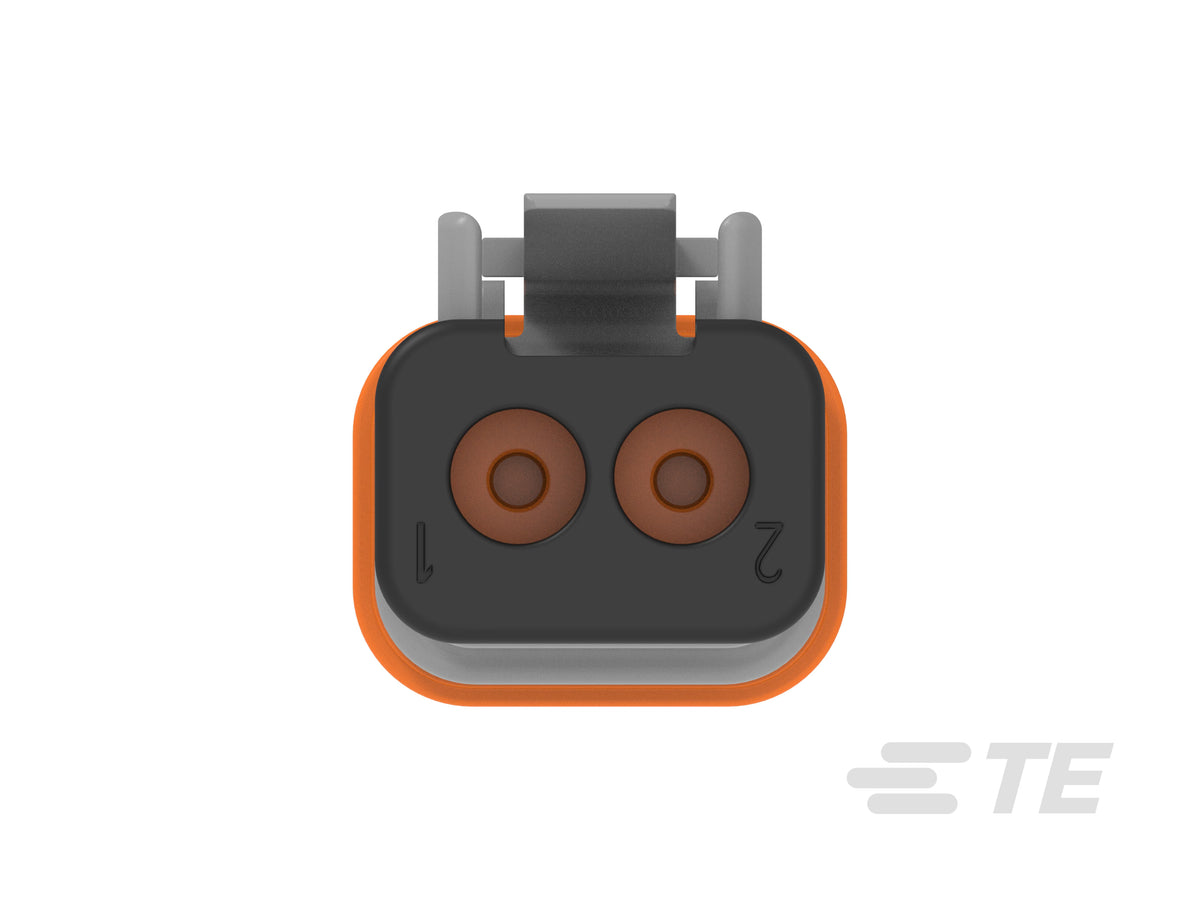

DT06-2S-C017 Deutsch DT 2-Way Plug Housing - Socket, Solid Rear Grommet & End Cap is a gray 2-position DEUTSCH DT plug housing for Size 16 socket contacts, built in the C017 blocked-cavity configuration with a solid rear grommet and end cap.
The housing uses the standard DT 2-way mating interface but is intended for a blocked configuration rather than a normal open-cavity wire-entry plug. It supports up to 13 A per contact and 250 VDC, with IP68/IP6K9K environmental protection when correctly assembled.
Choose DT06-2S-C017 when the harness or equipment design specifically calls for the C017 blocked DT interface. Do not select it where active wire-entry cavities are required.
Typical applications include heavy-duty vehicle, agricultural, construction and industrial harness systems requiring a sealed blocked connector interface or closure point.
-
Series: DEUTSCH DT
-
Connector: Plug housing
-
Positions: 2
-
Contact type: Socket
-
Contact size: Size 16
-
Color: Gray
-
Modification: C017 solid rear grommet and end cap
-
Mounting: Free-hanging / cable mount
-
Contact current rating: Up to 13 A
-
Operating voltage: 250 VDC
-
IP rating: IP68 / IP6K9K
-
Operating temperature: -55 to 125°C (-67 to 257°F)
-
Compatible With Agency/Standards Products: SAE J2030
Dimensions
-
Connector Height: 15.77 mm (0.621 in)
-
Product Length: 32.46 mm (1.278 in)
-
Product Width: 15.01 mm (0.591 in)
-
Centerline Pitch: 5.46 mm (0.215 in)
