Deutsch | SKU:
M902-2053

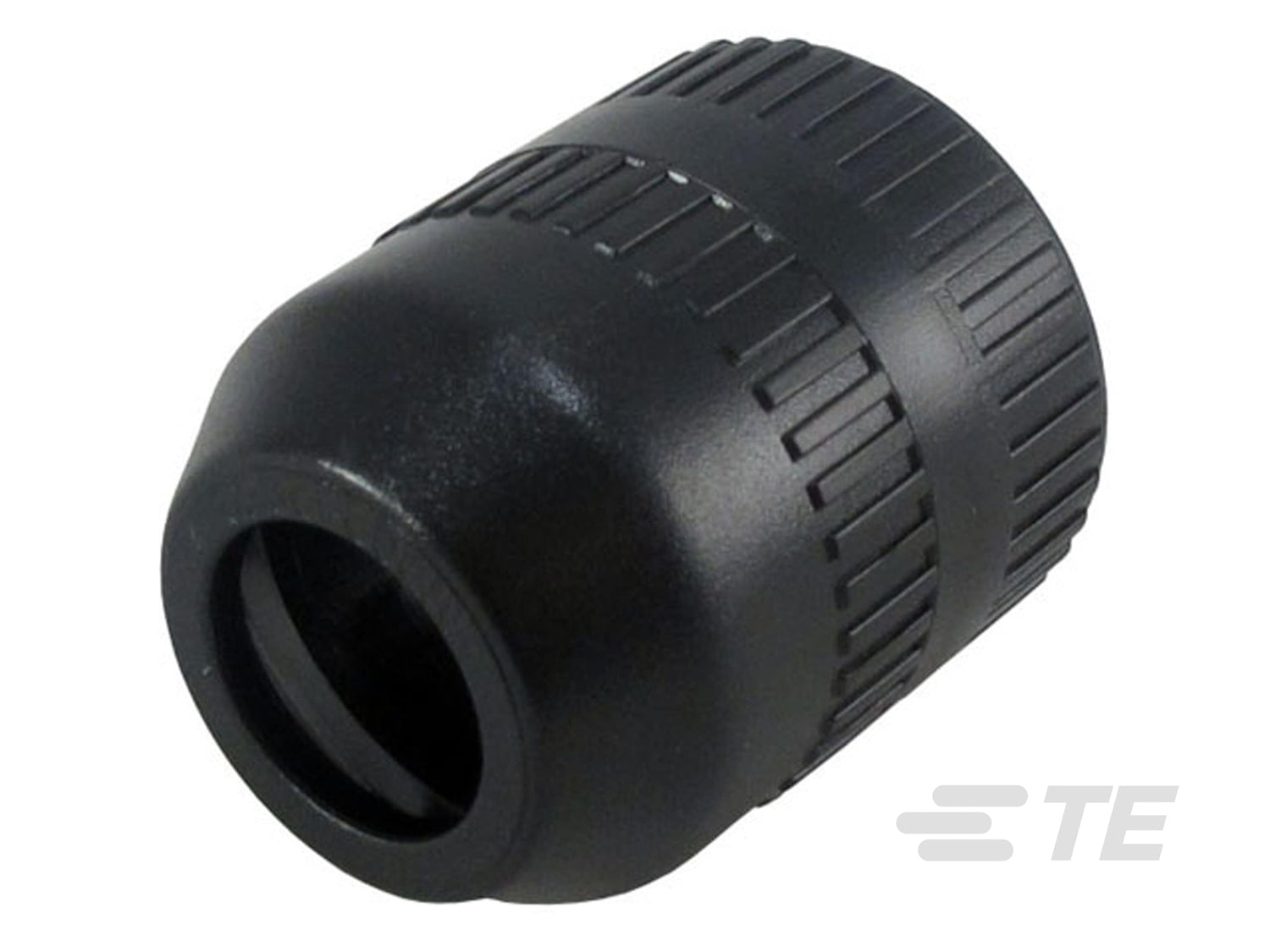

M902-2053 Deutsch HD10 Compression Nut - 0.430"-0.570" Cable Range
M902-2053 Deutsch HD10/HDP20 Compression Nut is a black compression nut for shell sizes 6, 9 and 24, sized for 0.430-0.570 in cable.
It is used with HD10/HDP20 rear-interface assemblies with a straight 180° cable exit and matches M902-2163, M902-2193 and M902-2243 backshell configurations.
Choose M902-2053 when the connector and cable OD require the 0.430-0.570 in range; use M902-2054 for larger 0.570-0.710 in cable.
Specifications
- Series: DEUTSCH HD10 / HDP20
- Accessory: Compression nut
- Shell sizes: 6, 9 and 24
- Cable range: 0.430-0.570 in
- Cable exit: 180° / straight
- Material: PBT / PC
- Color: Black
- Operating temperature: -40 to 134°C
Quantity price breaks
1+
$2.21/each
50+27% off
$1.62/each$2.21
100+30% off
$1.54/each$2.21
500+41% off
$1.30/each$2.21
M902-2053 Deutsch HD10 Compression Nut - 0.430"-0.570" Ca...
Regular price
$2.21
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Primary product material | PBT |
| Number of positions | 47 |
| Compatible cable diameter rang | 0 – .57 in |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Packaging method | Box |
| Connector backshell product ty | Backshell |
| Sealable | No |
| Operating temperature max | 273 °F |
| Operating temperature range | -40 – 273 °F |
| Serviceable | Yes |
