Deutsch | SKU:
DT06-2S

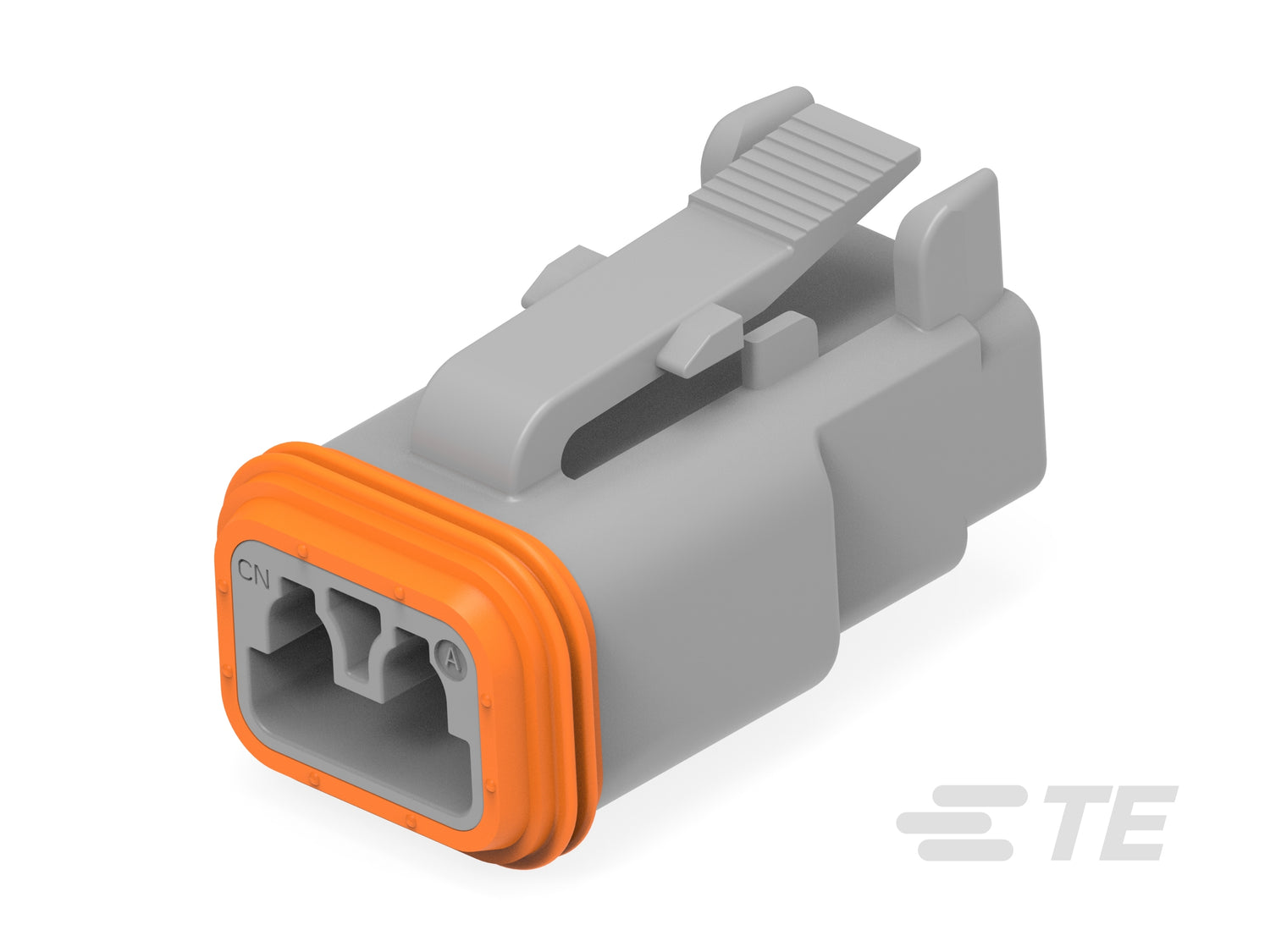

DT06-2S - DT Series
DT06-2S is a DEUTSCH DT connector built for reliable performance in demanding environments.
Used across heavy duty vehicles and exposed harness runs where durability matters. A straightforward solution when you need consistent performance without compromise.
Quantity price breaks
1+
$0.98/each
50+5% off
$0.93/each$0.98
100+9% off
$0.89/each$0.98
500+18% off
$0.80/each$0.98
1000+22% off
$0.76/each$0.98
5000+31% off
$0.68/each$0.98
DT06-2S - DT Series
Regular price
$0.98
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .087 – .144 in |
| Connector height | .621 in |
| Product length | 1.118 in |
| Product width | .591 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .215 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1800 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
