Technical Guide
Deutsch connector backshells are accessories fitted at the cable-entry side of compatible connector assemblies. Depending on the part, they can help support cable routing, provide mechanical protection around the rear of the connector and organize the transition from the housing into a wiring harness or protective tubing.
The correct backshell depends on the connector family, exact housing or shell size, cable range and required cable-exit direction. Straight and right-angle versions can also change how the harness leaves the connector.
This guide explains when to use a backshell, how to choose one, how DT backshells differ from HD10 and other circular-family accessories, and which compatibility checks matter before ordering.
Quick Recommendation
Choose a backshell from the connector outward. First identify the exact connector family and housing, then check the compatible backshell, cable range and cable-exit direction.
Do not choose a backshell only because the cable diameter appears suitable. A part that fits the cable still needs to be designed for the connector or shell configuration being used.
If you already know the required part number or connector system, browse Deutsch connector backshells.
What Is a Deutsch Connector Backshell?
A backshell is fitted at the rear, or cable-entry side, of a compatible connector assembly. Its exact function depends on the product design, but backshells are commonly used to guide and protect the cable transition leaving the connector.
Some designs are associated with cable-management or protective-tubing systems, while others provide a more defined straight or angled cable exit.
| Requirement | How a Backshell Can Help |
|---|---|
| Cable routing | Provides a defined direction for the harness leaving the connector. |
| Rear-of-connector protection | Provides additional mechanical coverage around the cable-entry area. |
| Harness organization | Helps manage the transition between the connector and bundled wiring or tubing. |
| Installation packaging | A straight or angled cable exit may suit the available installation space better. |
When Should You Use a Connector Backshell?
A backshell is worth considering when the cable exit from the connector needs additional management or protection, especially where harness routing, movement or available space makes the rear of the connector important.
Common situations include:
- Harnesses routed through crowded machinery or vehicle installations.
- Connections where a controlled cable-exit direction makes routing easier.
- Circular connector assemblies that use dedicated rear accessories.
- Harnesses transitioning into conduit or protective tubing where supported by the selected backshell design.
- Serviceable wiring where protecting the connector-to-harness transition is desirable.
A backshell is not automatically required for every Deutsch connector. Check the connector system, installation and available compatible accessories.
How to Choose a Deutsch Connector Backshell
| Check | What to Confirm | Why It Matters |
|---|---|---|
| Connector family | DT, HD10, HDP or another supported connector system. | Backshells are not universal across connector families. |
| Housing / shell | The exact connector configuration supported by the backshell. | A family name alone may not provide enough compatibility information. |
| Plug / receptacle side | Whether the backshell is intended for the housing side being used. | Some accessories are housing-side specific. |
| Cable range | The supported cable diameter or cable-entry range where specified. | The backshell must suit the harness entering the connector. |
| Exit direction | Straight or right-angle configuration. | Changes harness routing and installation clearance. |
| Exact part number | Any suffix, size or configuration in the product listing. | Avoids assuming similar-looking backshells are interchangeable. |

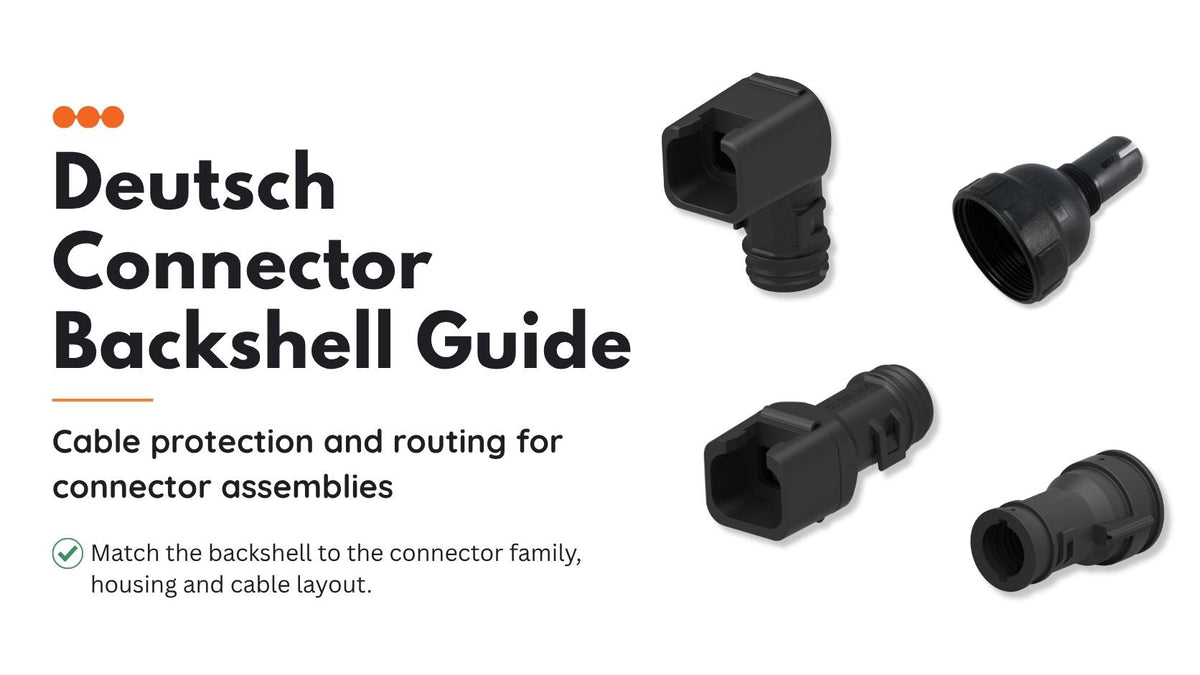

Straight vs Right-Angle Connector Backshells
Straight and right-angle backshells solve different harness-routing problems. Neither is automatically better; the correct choice depends on available clearance and the direction the harness needs to travel.
| Configuration | Best Starting Use | Example |
|---|---|---|
| Straight | Harness can continue directly behind the connector. | 1011-235-0405 DT 4-way plug straight backshell. |
| Right angle | Harness needs to turn shortly after leaving the connector or rear clearance is constrained. | 1011-236-0405 DT 4-way plug right-angle backshell. |
These two catalog parts provide a useful example because both are associated with DT 4-way plug applications but route the harness differently. :contentReference[oaicite:10]{index=10}
Deutsch DT Connector Backshells
DT-family backshells can be selected for specific plug or receptacle configurations and cavity counts. The current catalog includes straight and right-angle options for several DT housing configurations. :contentReference[oaicite:11]{index=11}
| Part Number | Connector Application | Exit |
|---|---|---|
| 1011-235-0405 | DT 4-way plug | Straight |
| 1011-236-0405 | DT 4-way plug | Right angle |
| 1011-237-0405 | DT 4-way receptacle | Straight |
| 1011-241-0605 | DT 6-way receptacle | Straight |
| 1011-240-0605 | DT 6-way plug | Right angle |
Match the exact housing role and position count rather than choosing a backshell merely because it belongs to the DT family.
HD10 and Other Circular Connector Backshells
Backshells are also widely represented in the site's circular connector accessory range. The Backshells collection includes multiple M902 parts associated with HD10 assemblies, as well as 2428-series products for other heavy-duty circular connector applications. :contentReference[oaicite:12]{index=12}
For example, M902-2191 is identified as an HD10 size 9 backshell, while the site's product data lists several M902 variants with different supported cable ranges. :contentReference[oaicite:13]{index=13}
With these connector systems, pay particular attention to the required shell or connector size and the supported cable range.
For the connector-family overview, see HD, HD10 & HD30 Connectors Explained.
Why Cable Range Matters
Some backshell ranges are available in multiple versions to suit different cable diameters. That means two backshells designed for the same connector size can still differ in the cable range they are intended to accommodate.
| Part | Connector Association | Listed Cable Range |
|---|---|---|
| M902-2191 | HD10 size 9 backshell | 0.187"-0.300" |
| M902-2192 | HD10 size 9 backshell | 0.300"-0.430" |
| M902-2194 | HD10 size 9 backshell | 0.570"-0.710" |
These catalog examples show why “fits HD10 size 9” is not enough information by itself: the cable entering the assembly also needs to suit the selected version. :contentReference[oaicite:14]{index=14}
Mistakes We See
Choosing by connector family only
A family such as DT or HD10 can contain multiple housing sizes and backshell configurations. Check the exact connector and backshell part numbers.
Ignoring plug vs receptacle compatibility
DT backshell examples in the catalog can be specific to plug or receptacle housings.
Choosing the wrong cable range
Similar backshells may support different cable diameters. Confirm the selected variant against the actual harness.
Using a straight backshell where cable clearance is limited
Review the direction the harness must leave the connector before committing to a straight or right-angle design.
Treating a backshell as universal strain relief
Backshell construction and function vary. Use the exact product information to understand what a particular backshell or accessory is designed to provide.
FAQs
What does a Deutsch connector backshell do?
A backshell is fitted at the cable-entry side of a compatible connector assembly and can help with cable routing, rear-of-connector protection and harness organization, depending on the backshell design.
Do all Deutsch connectors need a backshell?
No. Whether a backshell is appropriate depends on the connector system, installation and cable-management requirements.
How do I know which backshell fits my Deutsch connector?
Start with the exact connector family and housing part number, then confirm the compatible backshell, plug or receptacle side, shell or cavity size, cable range and required exit direction.
Should I use a straight or right-angle backshell?
Use the configuration that best suits harness routing and installation clearance. Straight backshells allow the cable to continue behind the connector, while right-angle designs can help where the harness needs to change direction close to the connector.
Are Deutsch backshells universal?
No. Backshells are designed for specific connector families, housings, shell sizes or cable-entry configurations. Confirm compatibility using the exact part numbers.
Why are there several backshells for the same connector size?
Different versions can support different cable ranges, exit directions or connector configurations. Check the individual product specification before ordering.
Final Recommendation
Select a Deutsch backshell by identifying the connector first, then matching the exact housing or shell size, cable range and required routing direction.
Browse Deutsch connector backshells when you know the configuration you need, and use the relevant DT, HD10 or HD Series pages to confirm the connector family before selecting its rear accessories.
