Deutsch | SKU:
0462-210-1231

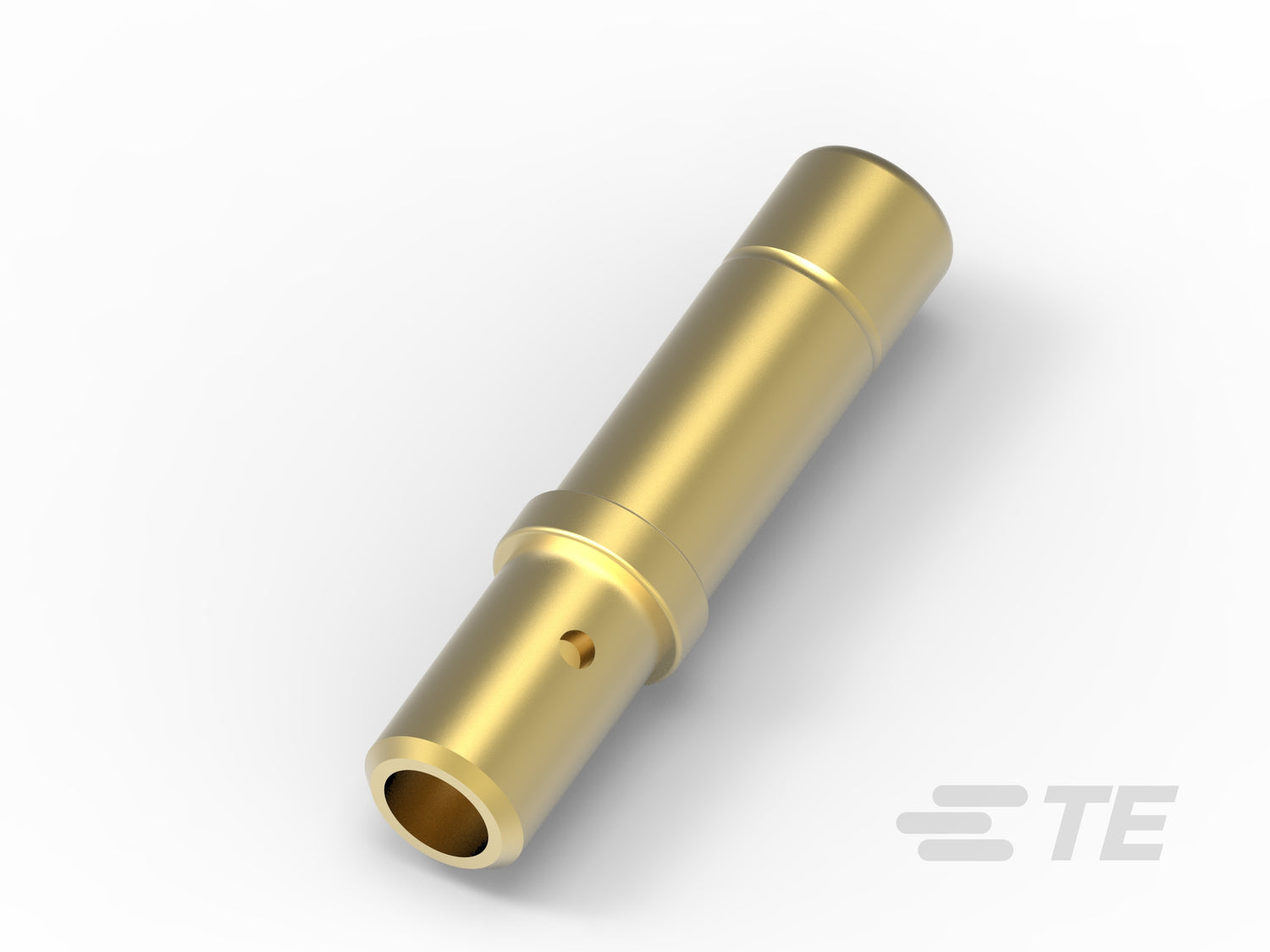

0462-210-1231 - Contacts and Terminals
0462-210-1231 is a genuine Deutsch connector configured as a Deutsch connector component. When a loom has to survive real world abuse, this part earns its keep.
- Temperature range: -67 – 257 °F
- Termination: Crimp
- Series: Deutsch Connector Component
- Wire size: 12 – 14 AWG
Where it fits best: industrial equipment, heavy duty looms, field repairs.
It suits exposed harness runs where a positive lock matters. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$3.02/each
50+5% off
$2.87/each$3.02
100+10% off
$2.73/each$3.02
500+19% off
$2.46/each$3.02
1000+23% off
$2.33/each$3.02
5000+30% off
$2.10/each$3.02
0462-210-1231 - Contacts and Terminals
Regular price
$3.02
Unit price
Unavailable
Product Specifications
| Contact fabrication | Solid |
| Contact size | Size 12 |
| Crimp type | Indent Crimp |
| Interface plating | Palladium Nickel (PdNi) |
| Mating pin diameter | .094 in |
| Terminal type | Socket |
| Typical current rating | 25 A |
| Wire contact termination area | Gold |
| Wire size | 12 – 14 AWG |
| Wire size search | 3 mm² |
| Compatible with wire base mate | Copper |
| Packaging method | Crate |
| Packaging quantity | 1250 |
| Primary locking feature | Integrated in Housing |
| Receptacle style | 180° |
| Sealable | No |
| Product terminates to | Wire |
| Termination method to wire cab | Crimp |
| Insulation option | Partially Insulated |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Customer preferred contact | Yes |
| Terminal transmits | 25 – 40 A (Power) |
