Deutsch | SKU:
0460-220-1231

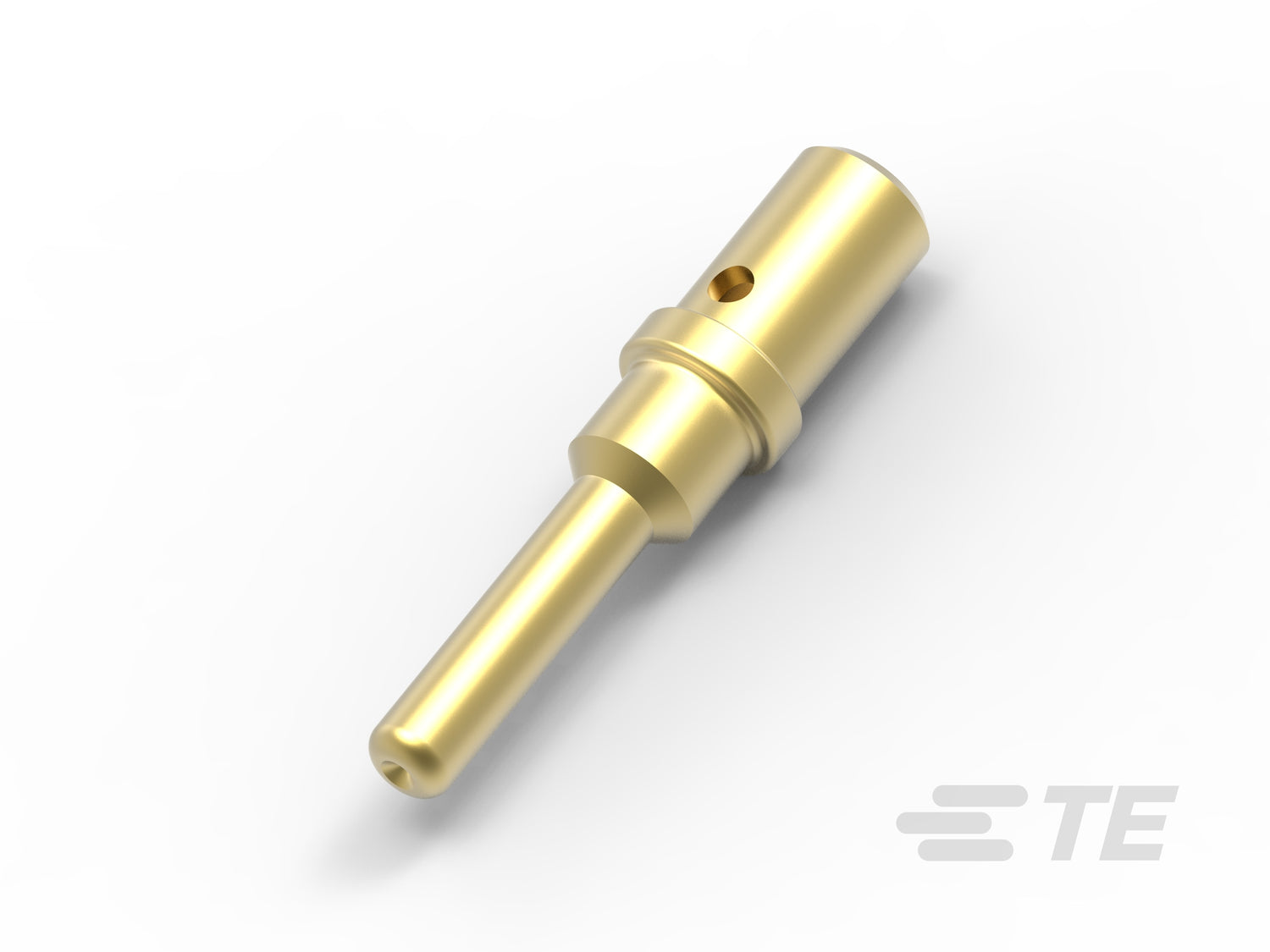

0460-220-1231 - Contacts and Terminals
The Deutsch 0460-220-1231 is a connector component built for harsh automotive and industrial electrical environments, helping to deliver dependable fit and function in demanding installations.
It’s a smart choice for time-poor builders and maintenance teams who want confidence in compatibility, durable fit and long-term reliability. Supplied as a genuine Deutsch component, shipped from the US.
- Supports cleaner harness builds and easier servicing
- Helps reduce rework caused by ingress and intermittent faults
- Genuine Deutsch quality as a benchmark for dependable field performance
Quantity price breaks
1+
$1.74/each
50+5% off
$1.66/each$1.74
100+10% off
$1.57/each$1.74
500+18% off
$1.42/each$1.74
1000+25% off
$1.31/each$1.74
0460-220-1231 - Contacts and Terminals
Regular price
$1.74
Unit price
Unavailable
Product Specifications
| Contact fabrication | Solid |
| Contact size | Size 12 |
| Crimp type | Indent Crimp |
| Interface plating | Palladium Nickel (PdNi) |
| Mating pin diameter | .094 in |
| Terminal type | Pin |
| Typical current rating | 25 A |
| Wire contact termination area | Gold |
| Wire size | 12 – 14 AWG |
| Wire size search | 3 mm² |
| Compatible with wire base mate | Copper |
| Packaging method | Carrier |
| Packaging quantity | 1250 |
| Primary locking feature | Integrated in Housing |
| Receptacle style | 180° |
| Sealable | No |
| Product terminates to | Wire |
| Termination method to wire cab | Crimp |
| Insulation option | Uninsulated |
| Operating temperature max | 302 °F |
| Operating temperature range | -67 – 302 °F |
| Customer preferred contact | Yes |
| Terminal transmits | 25 – 40 A (Power) |
