DT15-2P

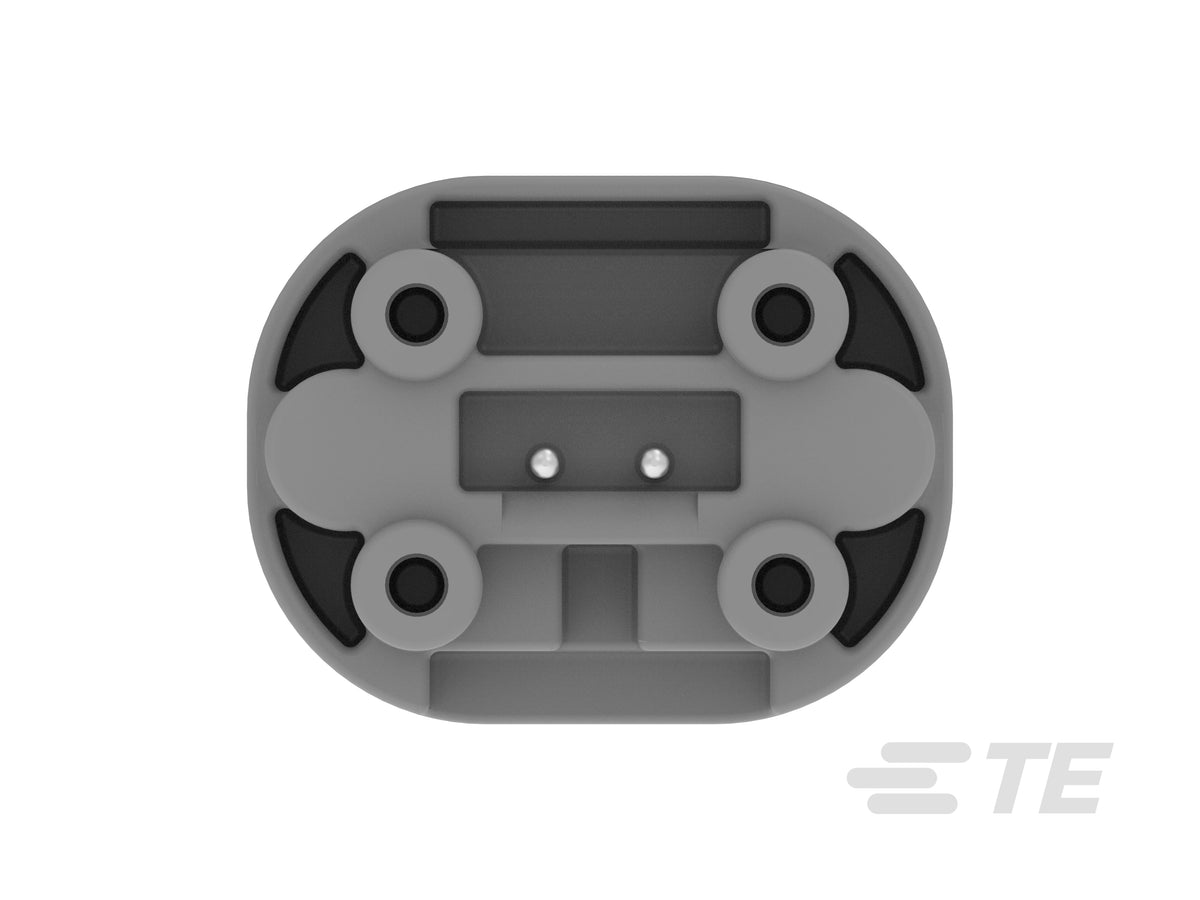

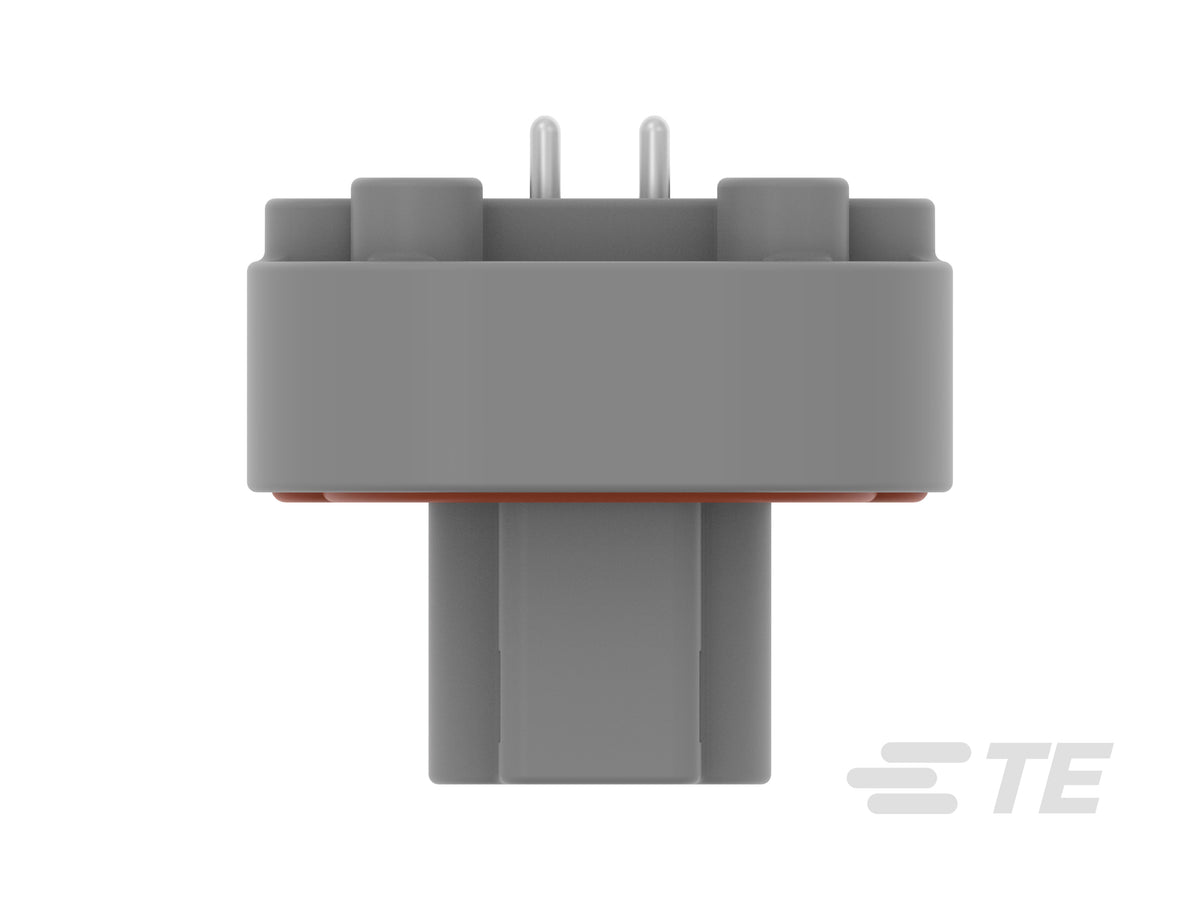

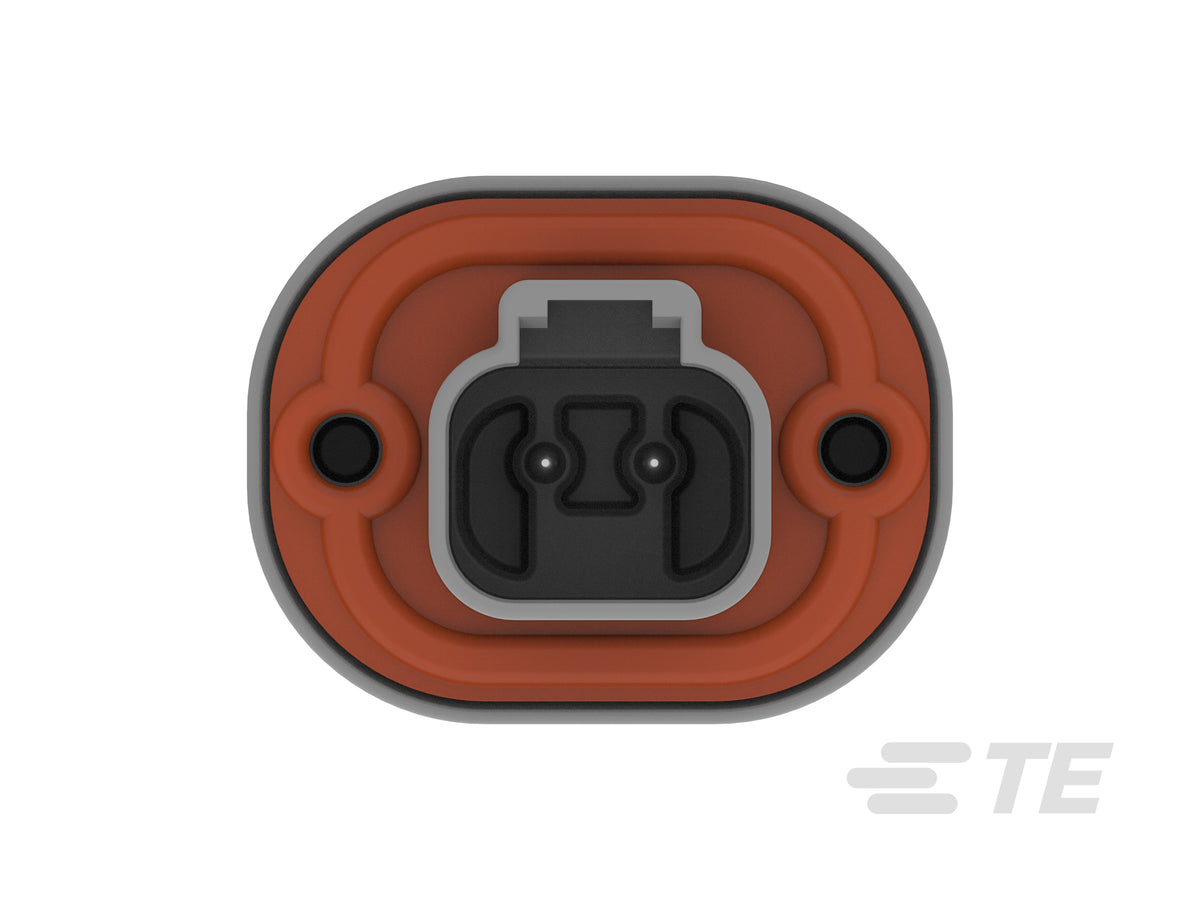

DT15-2P Deutsch DT 2-Way PCB Header - Vertical Pins
DT15-2P Deutsch DT 2-Way PCB Header is a sealed wire-to-board connector with two vertical Size 16 pin interfaces, through-hole solder termination and a gray fully shrouded housing.
The two-position header is rated up to 13 A per contact and 250 V, with nickel-plated mating surfaces and a 5.46 mm pitch. It provides a compact DT interface for bringing a sealed harness connection directly onto a PCB.
Choose DT15-2P when the design requires a 2-way vertical DT PCB interface with straight through-hole pins rather than a cable-mounted receptacle or right-angle header.
- Series: DEUTSCH DT
- Connector: PCB header
- Positions: 2
- Contact type: Pin
- PCB orientation: Vertical
- PCB termination: Through-hole solder
- Contact current rating: Up to 13 A
- Voltage rating: 250 V
- Contact plating: Nickel
- Pitch: 5.46 mm
- Colour: Gray
Dimensions
- Profile Height from PCB: 27.43 mm (1.08 in)
- Connector Length: 36.07 mm (1.42 in)
- PCB Thickness (Recommended): 0.78 to 2.36 mm (0.031 to 0.093 in)
- Connector Width: 35.31 mm (1.39 in)
Quantity price breaks
1+
$6.35/each
50+5% off
$6.05/each$6.35
100+9% off
$5.76/each$6.35
DT15-2P Deutsch DT 2-Way PCB Header - Vertical Pins
Regular price
$6.35
Unit price
Unavailable
Product Specifications
| Primary product color | Gray |
| Number of positions | 2 |
| Number of rows | 1 |
| Number of sections | 1 |
| Number of signal positions | 2 |
| Pcb mount orientation | Vertical |
| Contact current rating max | 13 A |
| Contact mating area plating ma | Nickel (Ni) |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Connector length | 1.42 in |
| Connector width | 1.39 in |
| Pcb thickness recommended | .031 – .093 in |
| Profile height from pcb | 1.08 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Voltage rating max | 250 VDC |
| Centerline pitch | .215 in |
| Ip rating | Not Tested |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | Without |
| Mating alignment type | Not Keyed |
| Mating retention type | Locking Interface |
| Mounting holes | With |
| Panel mount feature | With |
| Pcb mount alignment | Without |
| Pcb mount retention | With |
| Pcb mount retention type | Mounting Screw |
| Circuit application | Power & Signal |
| Shielded | No |
| Packaging method | Box |
| Packaging quantity | 200 |
| Connector contact terminates t | Wire & Cable |
| Connector product type | Connector Assembly |
| Connector shape | Rectangular |
| Connector system | Wire-to-Board |
| Header type | Fully Shrouded |
| Mixed hybrid header | No |
| Sealable | Yes |
| Termination method to pcb | Through Hole - Solder |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Interface number | DT04-2P |
