Deutsch | SKU:
DT15-2P

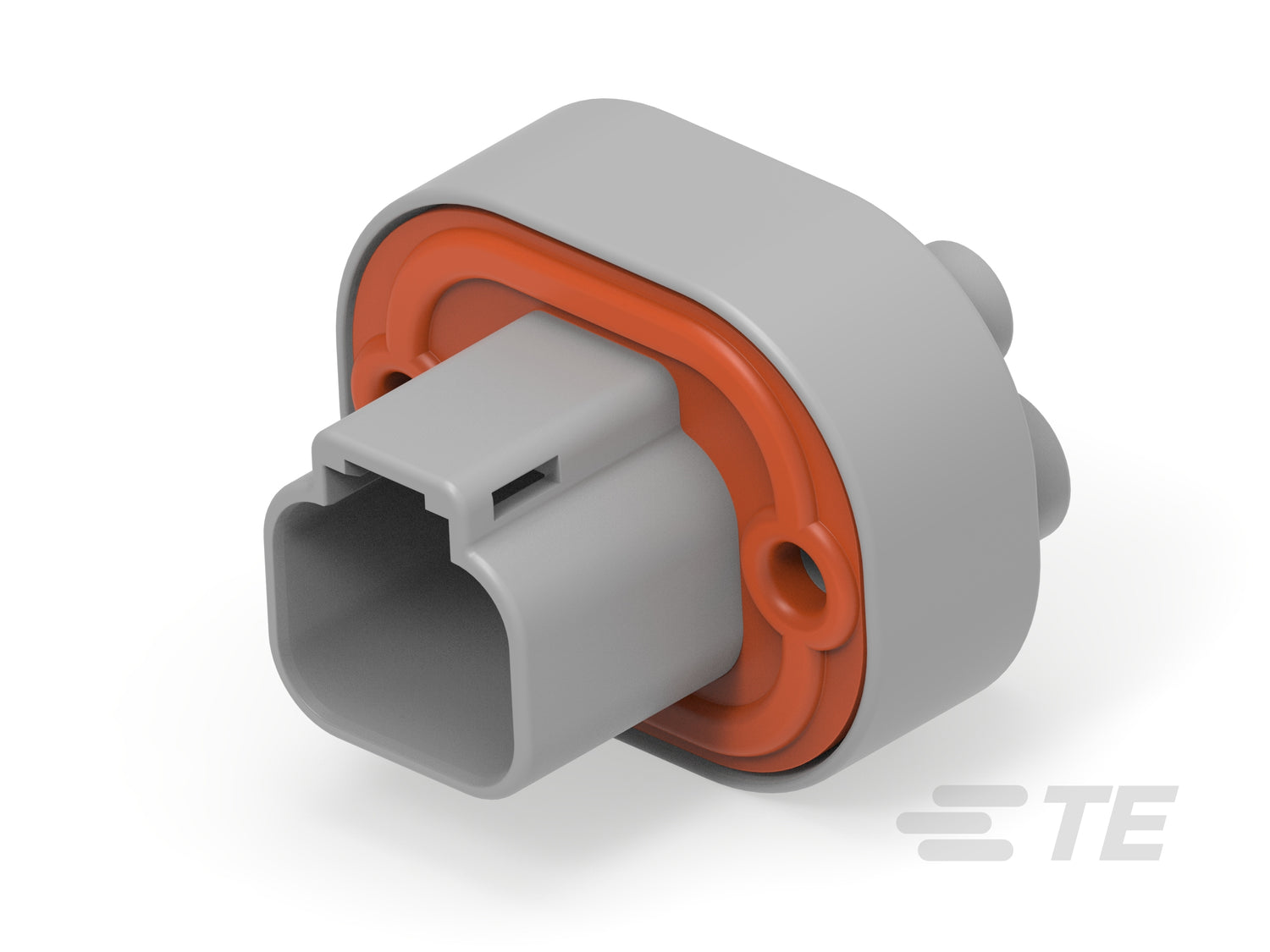

DT15-2P - DT Series
The Deutsch DT15-2P is a connector component built for harsh automotive and industrial electrical environments, helping to support reliable assembly and long-term connector performance.
It’s a smart choice for time-poor builders and maintenance teams who want confidence in compatibility, durable fit and long-term reliability. Genuine Deutsch part, stocked and shipped from the US.
- Supports cleaner harness builds and easier servicing
- Keeps installs dependable in high-vibration environments
- Genuine Deutsch quality as a benchmark for dependable field performance
Quantity price breaks
1+
$7.75/each
50+10% off
$6.97/each$7.75
100+19% off
$6.28/each$7.75
DT15-2P - DT Series
Regular price
$7.75
Unit price
Unavailable
Product Specifications
| Primary product color | Gray |
| Number of positions | 2 |
| Number of rows | 1 |
| Number of sections | 1 |
| Number of signal positions | 2 |
| Pcb mount orientation | Vertical |
| Contact current rating max | 13 A |
| Contact mating area plating ma | Nickel (Ni) |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Connector length | 1.42 in |
| Connector width | 1.39 in |
| Pcb thickness recommended | .031 – .093 in |
| Profile height from pcb | 1.08 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Voltage rating max | 250 VDC |
| Centerline pitch | .215 in |
| Ip rating | Not Tested |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | Without |
| Mating alignment type | Not Keyed |
| Mating retention type | Locking Interface |
| Mounting holes | With |
| Panel mount feature | With |
| Pcb mount alignment | Without |
| Pcb mount retention | With |
| Pcb mount retention type | Mounting Screw |
| Circuit application | Power & Signal |
| Shielded | No |
| Packaging method | Box |
| Packaging quantity | 200 |
| Connector contact terminates t | Wire & Cable |
| Connector product type | Connector Assembly |
| Connector shape | Rectangular |
| Connector system | Wire-to-Board |
| Header type | Fully Shrouded |
| Mixed hybrid header | No |
| Sealable | Yes |
| Termination method to pcb | Through Hole - Solder |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Interface number | DT04-2P |
