2428-008-2405 Deutsch HDP20 Size 24 Backshell – Straight

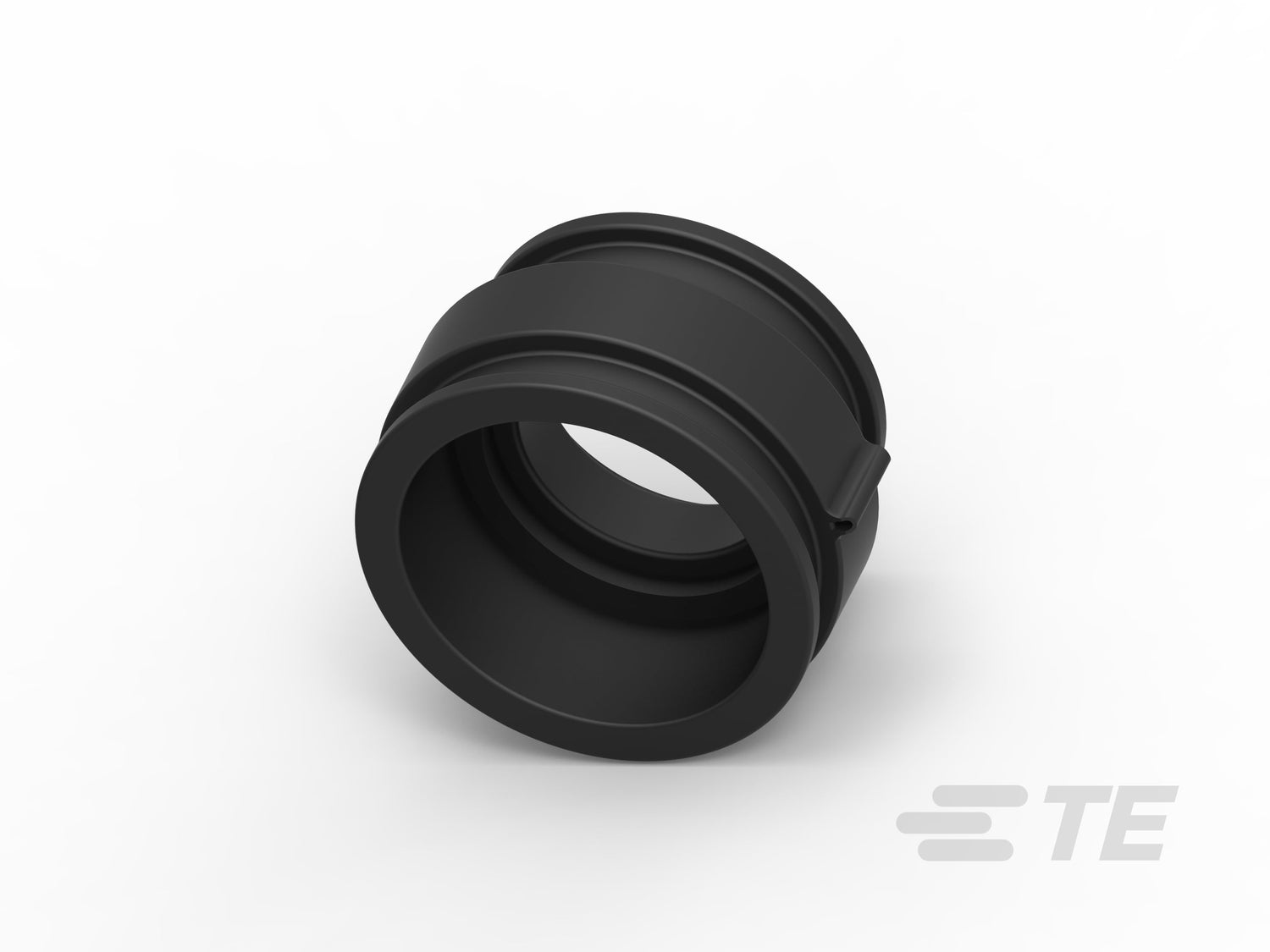

2428-008-2405 Deutsch HDP20 Size 24 Straight Backshell is a black plastic rear cover with a 180° cable exit for Size 24 HDP20 connectors using the L017 rear-interface configuration.
It is sized for NW25.4 conduit and provides a protected straight cable-routing interface, with -55 to 125°C operating capability.
Choose 2428-008-2405 when the harness requires a Size 24 HDP20 L017 backshell with straight cable exit and NW25.4 conduit compatibility rather than a right-angle version.
Specifications
- Series: DEUTSCH HDP20
- Accessory: Backshell
- Shell size: 24
- Cable exit: 180° / straight
- Rear interface: L017
- Conduit size: NW25.4
- Color: Black
- Material: Plastic
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$4.91/each
50+36% off
$3.12/each$4.91
100+38% off
$3.04/each$4.91
500+41% off
$2.92/each$4.91
1000+41% off
$2.90/each$4.91
5000+41% off
$2.88/each$4.91
2428-008-2405 Deutsch HDP20 Size 24 Backshell – Straight
Regular price
$4.91
Unit price
Unavailable
Technical Documentation
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Primary product material | Plastic |
| Number of positions | 1 |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Strain relief | Without |
| Packaging method | Package |
| Protection strain relief acces | Backshell |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
