Deutsch | SKU:
2428-015-1805

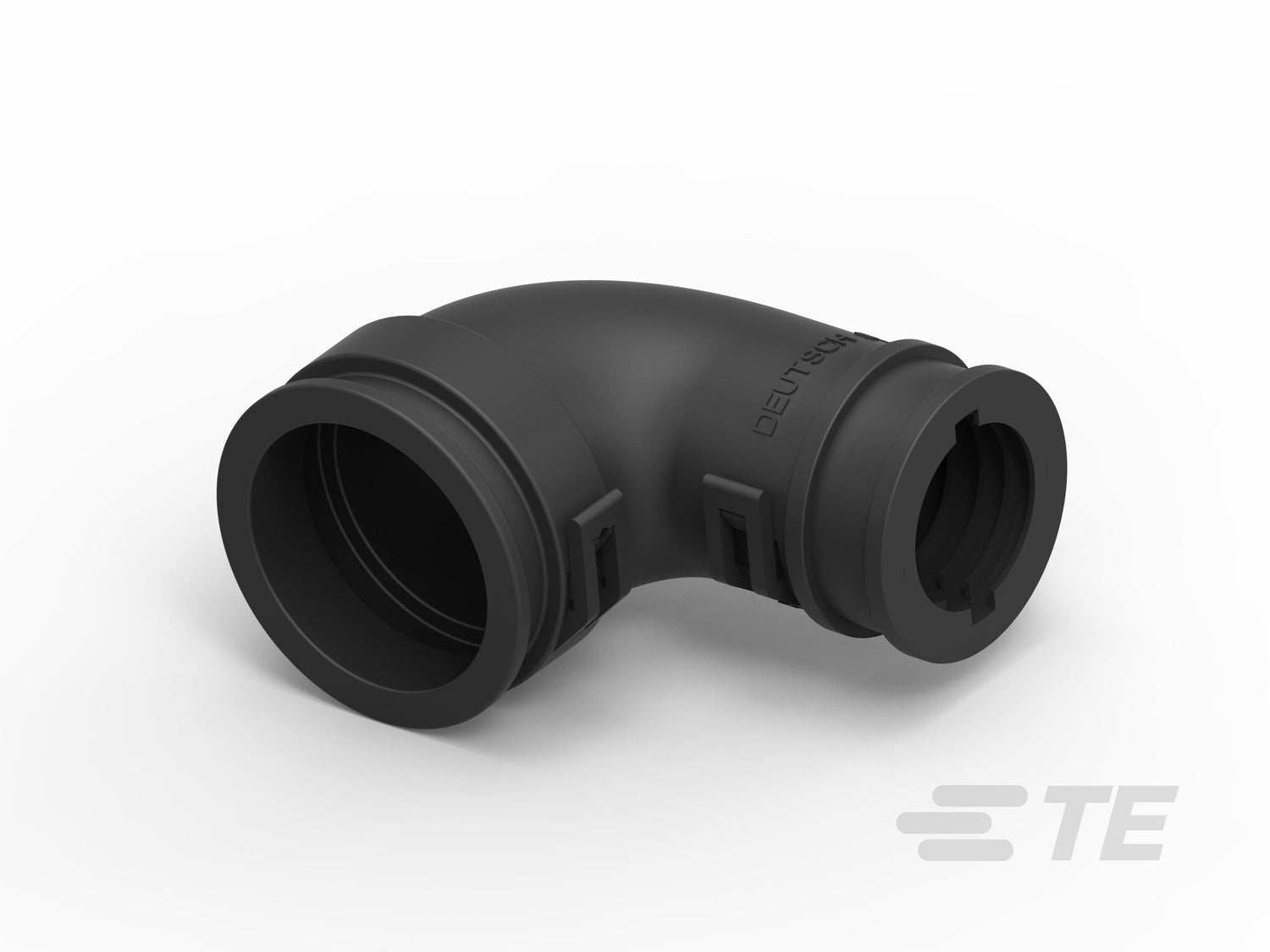

2428-015-1805 Deutsch HDP20 Size 18 Backshell – Right Angle
2428-015-1805 Deutsch HDP20 Size 18 Right-Angle Backshell is a black plastic rear cover with a 90° cable exit for Size 18 HDP20 connectors using the L017 rear-interface configuration.
It supports NW13, NW17 and NW19 conduit sizes, giving harness designers a right-angle cable-routing option for tighter installation envelopes.
Choose 2428-015-1805 when the connector is Size 18, uses the L017 interface and requires a 90° exit for NW13/17/19 conduit.
Specifications
- Series: DEUTSCH HDP20
- Accessory: Backshell
- Shell size: 18
- Cable exit: 90° / right angle
- Rear interface: L017
- Conduit sizes: NW13 / NW17 / NW19
- Color: Black
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$2.07/each
50+5% off
$1.97/each$2.07
100+9% off
$1.88/each$2.07
500+14% off
$1.79/each$2.07
476 in stock — lead time on request for 500+
2428-015-1805 Deutsch HDP20 Size 18 Backshell – Right Angle
Regular price
$2.07
Unit price
Unavailable
Product Specifications
| Cable exit angle | 90 ° |
| Primary product color | Black |
| Primary product material | Plastic |
| Number of positions | 1 |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Strain relief | Without |
| Packaging method | Box |
| Protection strain relief acces | Backshell |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
