Deutsch HDP20 Heavy-Duty Off-Road Connector Repair Kit – 21 Way

The Deutsch HDP20 Heavy-Duty Off-Road Connector Repair Kit provides a complete 21-way connector setup with additional contacts and service tooling for demanding vehicle, machinery and equipment wiring.

Built around a 21-way HDP20 receptacle and mating plug configuration using size 12 and size 16 contacts, the kit is suited to technicians working on larger harness connections where multiple power and control circuits need to pass through a single serviceable connector.

Best for:

• Off-road vehicle wiring
• Agricultural machinery
• Construction and plant equipment
• Commercial truck electrical systems
• Multi-circuit chassis harnesses
• Heavy-duty workshop and field repairs

Instead of trying to cover the entire HD range, this kit focuses on one useful 21-way HDP20 configuration and supplies a generous assortment of both contact sizes used by the housing.

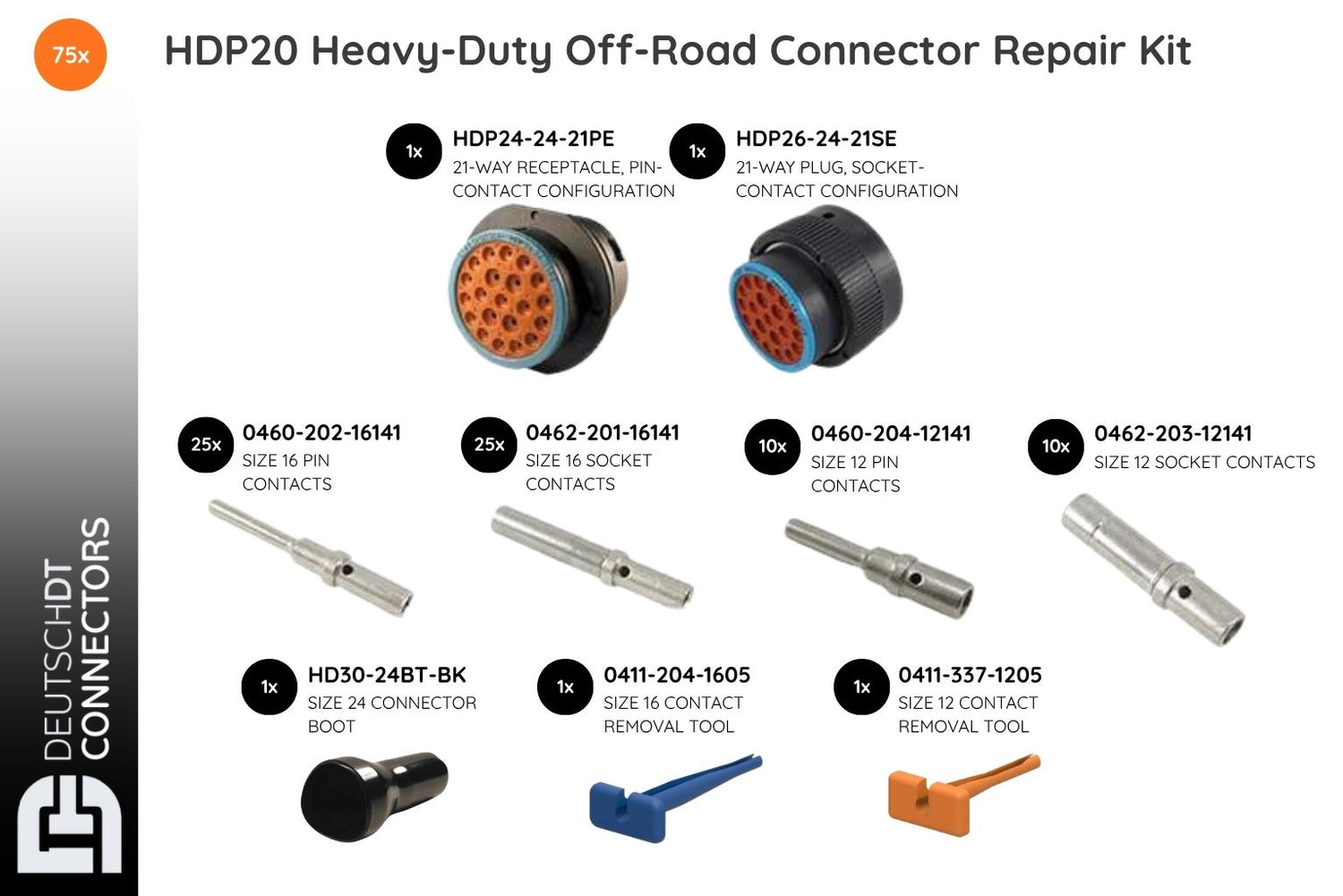

Deutsch HDP20 Heavy-Duty Off-Road Connector Repair Kit Contents

Connector Housings

• 1 x HDP24-24-21PE – 21-way receptacle, pin-contact configuration
• 1 x HDP26-24-21SE – 21-way plug, socket-contact configuration

Size 16 Contacts

• 25 x 0460-202-16141 – Size 16 pin contacts
• 25 x 0462-201-16141 – Size 16 socket contacts

Size 12 Contacts

• 10 x 0460-204-12141 – Size 12 pin contacts
• 10 x 0462-203-12141 – Size 12 socket contacts

Boot

• 1 x HD30-24BT-BK – Size 24 connector boot

Service Tools

• 1 x 0411-204-1605 – Size 16 contact removal tool
• 1 x 0411-337-1205 – Size 12 contact removal tool
