Deutsch | SKU:
DRC12-70PC

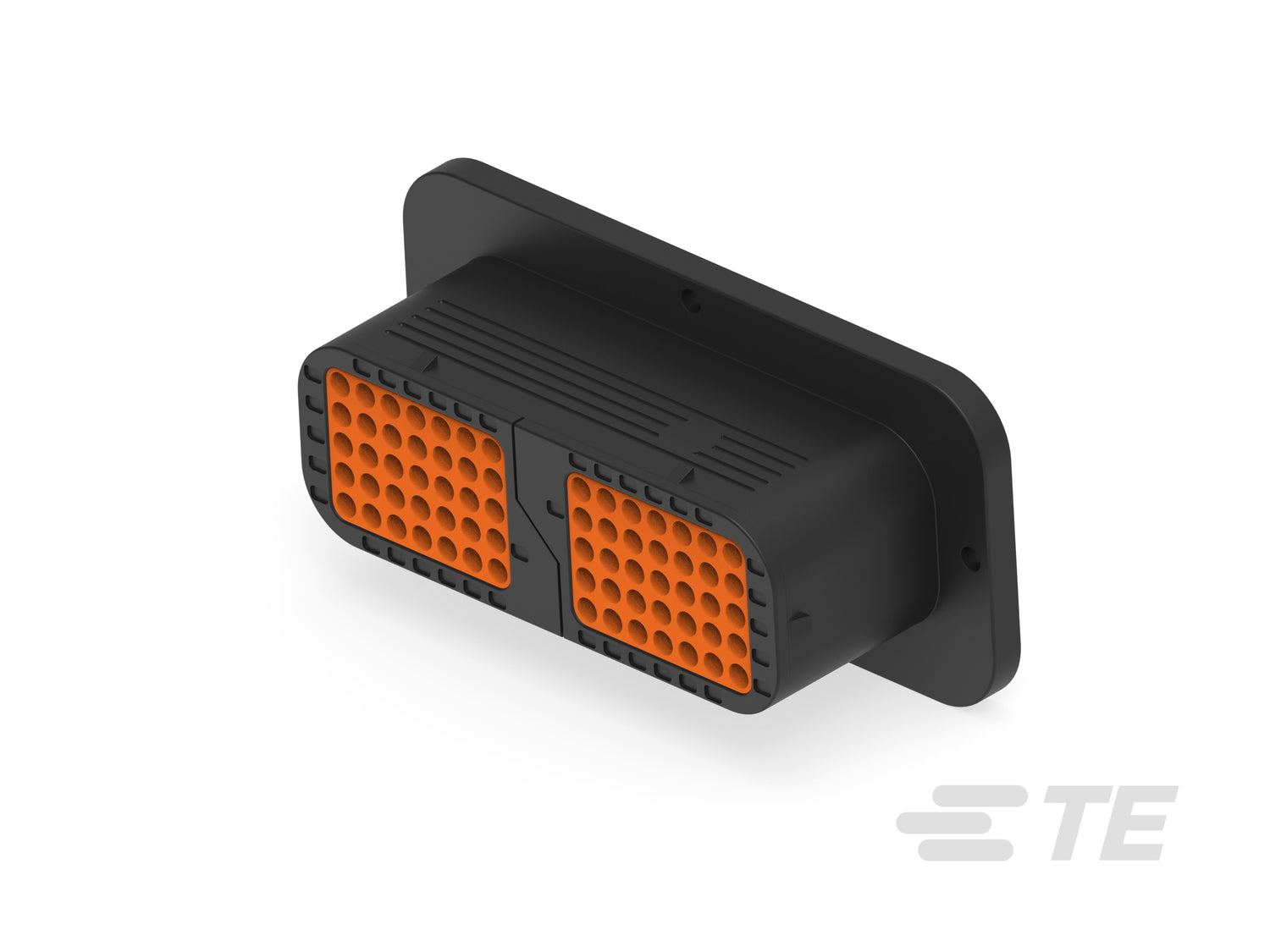

DRC12-70PC Deutsch DRC 70-Way Receptacle Housing - Pin, Key C
DRC12-70PC is a DEUTSCH DRC 70-way receptacle housing for pin contacts, configured with Key C.
The multi-circuit sealed housing is suited to vehicle and equipment harnesses, with Key C identifying the required mating configuration for accurate connector selection and service replacement.
Use DRC12-70PC where the required configuration is a DEUTSCH DRC 70-position pin receptacle with Key C.
- Series: DEUTSCH DRC
- Connector: Receptacle
- Positions: 70
- Contact type: Pin
- Key: C
Quantity price breaks
1+
$47.30/each
50+6% off
$44.68/each$47.30
20 in stock — lead time on request for 50+
100+10% off
$42.55/each$47.30
20 in stock — lead time on request for 100+
DRC12-70PC Deutsch DRC 70-Way Receptacle Housing - Pin, Key C
Regular price
$47.30
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | C |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector seal code | N Seal |
| Number of positions | 70 |
| Number of rows | 5 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Connector height | 2.32 in |
| Product length | 1.757 in |
| Product width | 4.993 in |
| Row to row spacing | .216 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .216 in |
| Housing material | PPS GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 20mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 21 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
