Deutsch | SKU:
DT04-12PA-B016

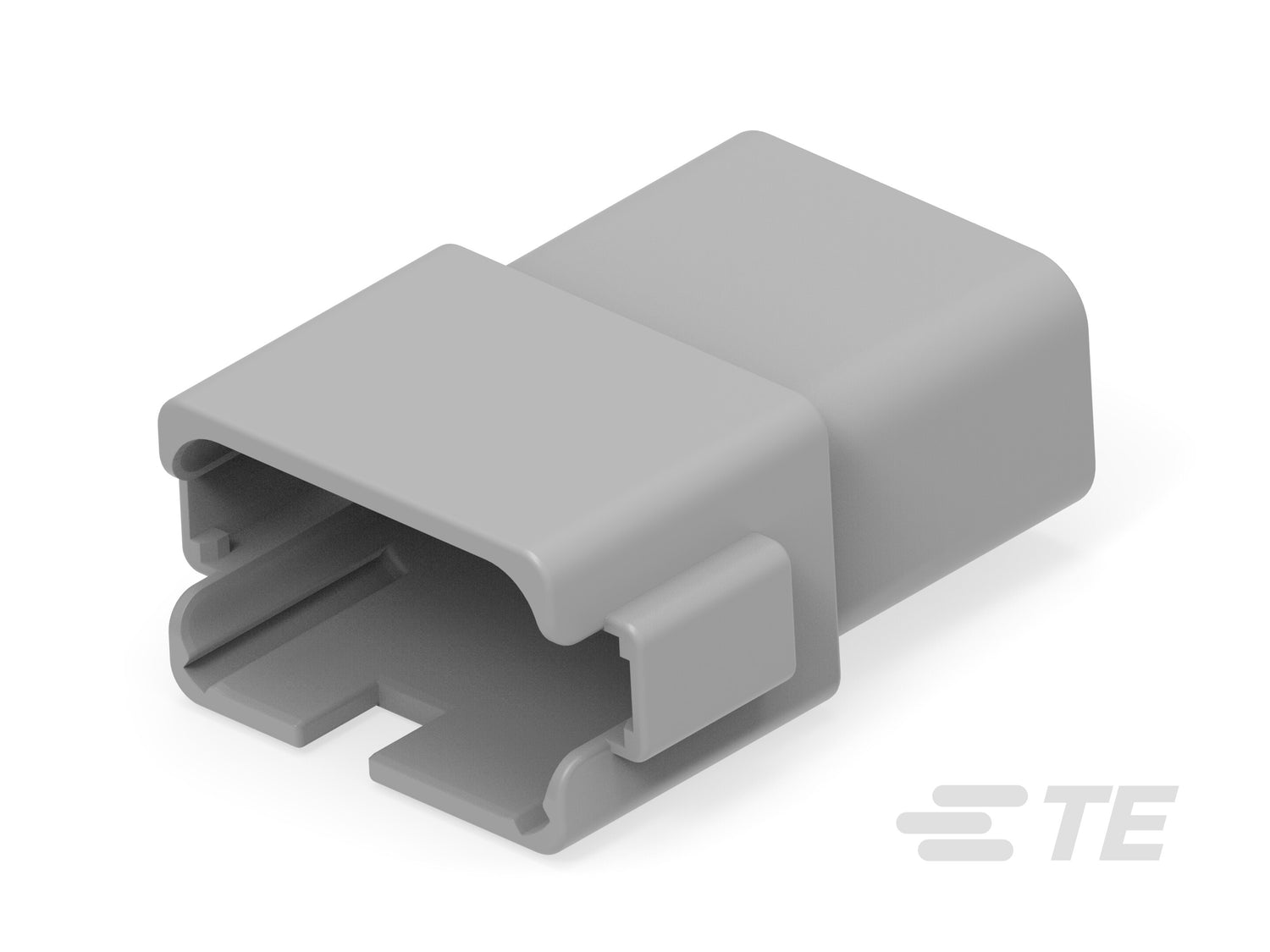

DT04-12PA-B016 - DT Series
DT04-12PA-B016 is a genuine Deutsch Deutsch DT series 12-way receptacle connector housing designed for dependable performance in harsh environment wiring looms.
Primary colour: Gray. Operating temperature range: -67 – 257 °F.
Key features
- 12-way configuration
- Colour: Gray
- UL flammability rating: 12mm Flame Test per Standard UL-94
- Operating temperature: -67 – 257 °F
- Compliance: EU RoHS Compliant
- Compliance: EU ELV Compliant
- Contact size: Size 16
Specifications
| Series | DEUTSCH DT |
|---|---|
| Connector type | Wire & Cable |
| Positions | 12 |
| Contact size | Size 16 |
| Contact type | Pin |
| Operating temperature | -67 – 257 °F |
| Primary colour | Gray |
| UL flammability | 12mm Flame Test per Standard UL-94 |
| Terminal position assurance | Yes |
| Connector position assurance | No |
| RoHS | EU RoHS Compliant |
| ELV | EU ELV Compliant |
Typical applications include off-highway equipment, commercial vehicles, marine systems, motorsport, and industrial machinery where vibration, dust and moisture resistance matter.
Technical documents
- DT Series Connector System
- 12 WAY RECEPTACLE, STANDARD SEAL EXTRA THIN SEAL, SHORT AND LONG CAP, DT SERIES
- 3D PDF
Need help matching contacts, wedgelocks or compatible housings? Speak to our team and we’ll help you select the correct Deutsch DT parts.
Quantity price breaks
1+
$4.70/each
50+5% off
$4.47/each$4.70
100+10% off
$4.24/each$4.70
500+19% off
$3.82/each$4.70
1000+25% off
$3.53/each$4.70
DT04-12PA-B016 - DT Series
Regular price
$4.70
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Number of positions | 12 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | .876 in |
| Product length | 1.993 in |
| Product width | 1.597 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 250 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
