Deutsch | SKU:
DT04-12PA-CE03

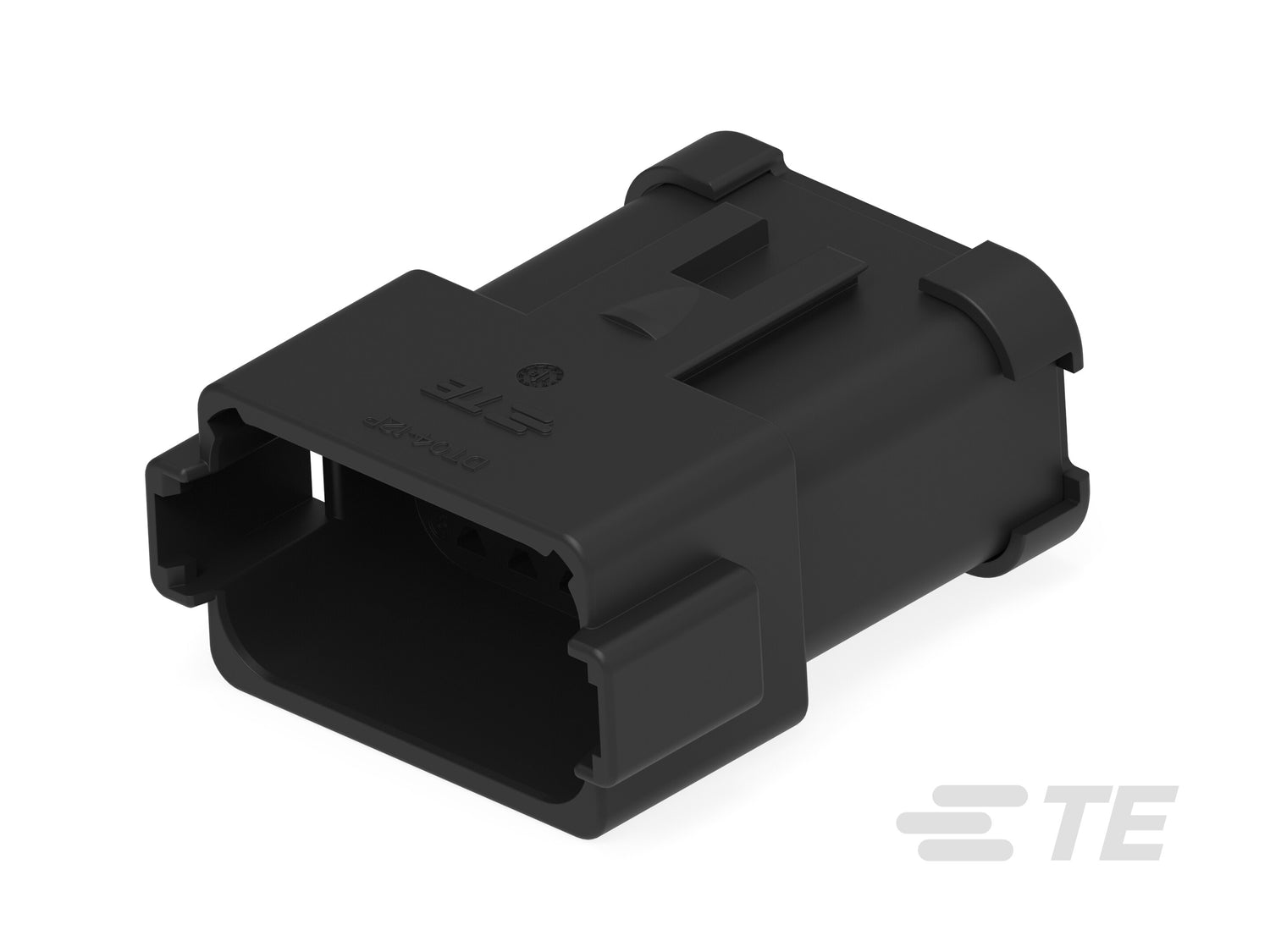

DT04-12PA-CE03 Deutsch DT 12-Way Receptacle Housing - Pin, Key A
DT04-12PA-CE03 is a DEUTSCH DT 12-way receptacle housing for pin contacts, configured with Key A.
The sealed housing suits vehicle and equipment harnesses, while Key A helps distinguish the required mating configuration and reduce connector selection errors during assembly or service.
Use DT04-12PA-CE03 where the required configuration is a DEUTSCH DT 12-position pin receptacle with Key A.
- Series: DEUTSCH DT
- Connector: Receptacle
- Positions: 12
- Contact type: Pin
- Key: A
- Modification: CE03
Quantity price breaks
1+
$6.54/each
50+5% off
$6.23/each$6.54
100+9% off
$5.93/each$6.54
DT04-12PA-CE03 Deutsch DT 12-Way Receptacle Housing - Pin, Key A
Regular price
$6.54
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | End Cap |
| Connector seal code | E Seal |
| Number of positions | 12 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | .876 in |
| Product length | 1.858 in |
| Product width | 1.597 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 250 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
