Deutsch | SKU:
DT04-12PD-BL04

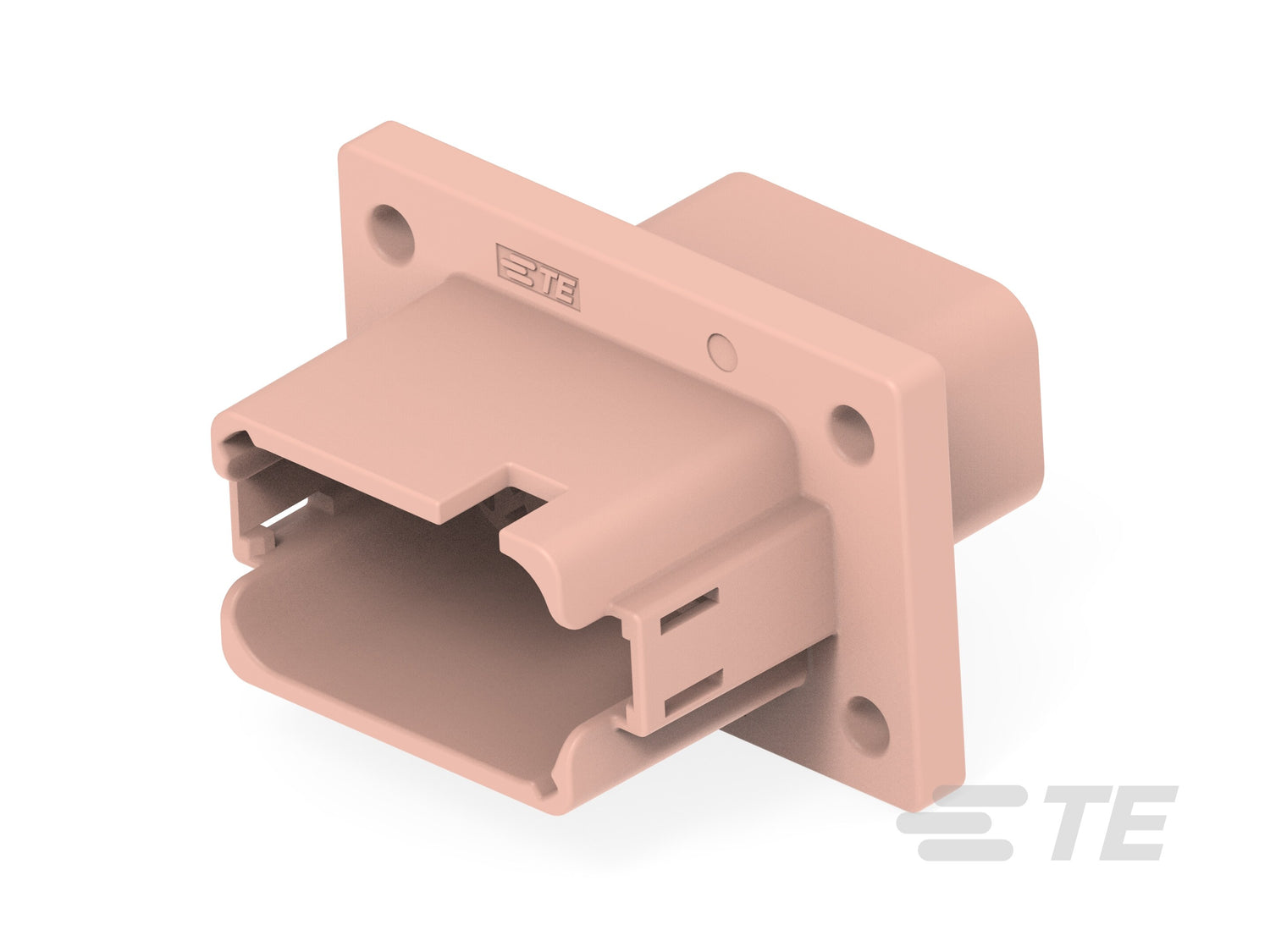

DT04-12PD-BL04 - DT Series
DT04-12PD-BL04 is a genuine Deutsch connector configured as DEUTSCH DT, 12 way, keying D, brown. Designed for harsh environments, it keeps connections stable and protected.
- Colour: Brown
- Positions: 12
- Housing material: PA GF
- Series: DEUTSCH DT
- Temperature range: -67 – 257 °F
- Keying code: D
- IP rating: IP6K9K
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It is engineered for consistent mating and long term durability. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$14.07/each
50+10% off
$12.66/each$14.07
100+19% off
$11.40/each$14.07
DT04-12PD-BL04 - DT Series
Regular price
$14.07
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | D |
| Primary product color | Brown |
| Blank cavity position | 0 |
| Connector modification | Welded Flange |
| Number of positions | 12 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.4 in |
| Product length | 1.993 in |
| Product width | 2.17 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 170 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
