Deutsch | SKU:
DT04-2P-C015

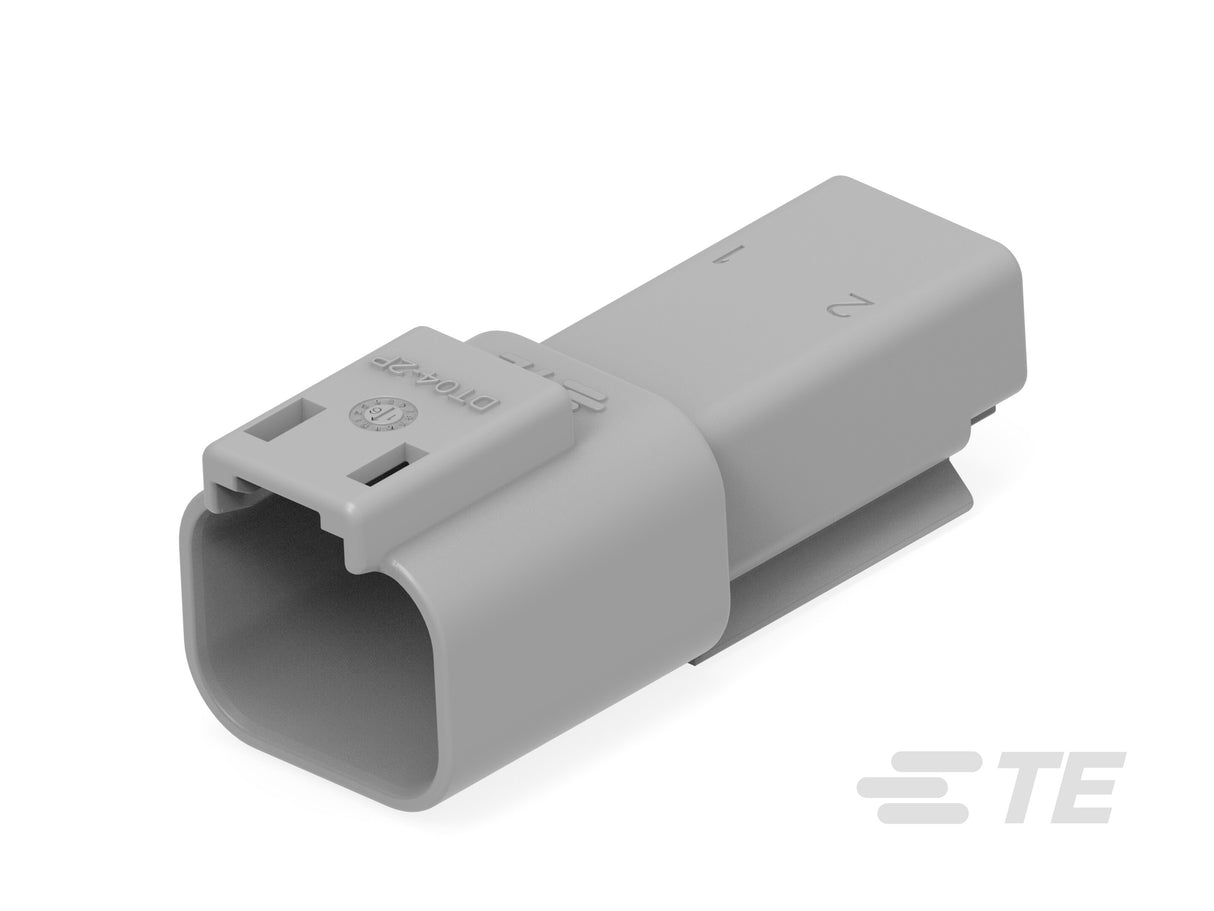

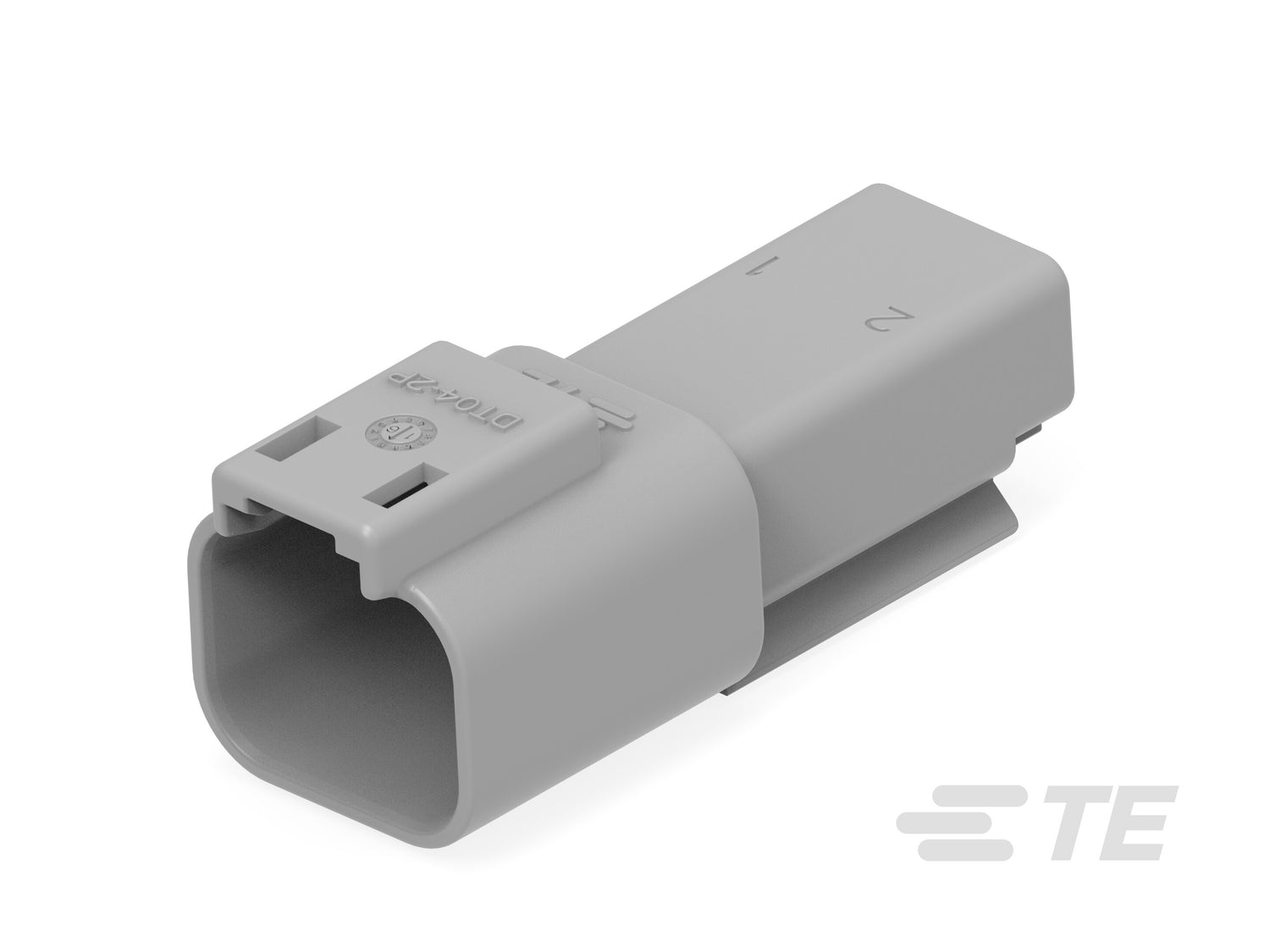

DT04-2P-C015 - DT Series
DT04-2P-C015 is a genuine Deutsch Deutsch DT series 2-way receptacle connector housing designed for dependable performance in harsh environment wiring looms.
Primary colour: Gray. Operating temperature range: -67 – 257 °F.
Key features
- 2-way configuration
- Colour: Gray
- UL flammability rating: 12mm Flame Test per Standard UL-94
- Operating temperature: -67 – 257 °F
- Compliance: EU RoHS Compliant
- Compliance: EU ELV Compliant
- Contact size: Size 16
Specifications
| Series | DEUTSCH DT |
|---|---|
| Connector type | Wire & Cable |
| Positions | 2 |
| Contact size | Size 16 |
| Contact type | Pin |
| Operating temperature | -67 – 257 °F |
| Primary colour | Gray |
| UL flammability | 12mm Flame Test per Standard UL-94 |
| Terminal position assurance | Yes |
| Connector position assurance | No |
| RoHS | EU RoHS Compliant |
| ELV | EU ELV Compliant |
Typical applications include off-highway equipment, commercial vehicles, marine systems, motorsport, and industrial machinery where vibration, dust and moisture resistance matter.
Technical documents
Need help matching contacts, wedgelocks or compatible housings? Speak to our team and we’ll help you select the correct Deutsch DT parts.
Quantity price breaks
1+
$0.83/each
50+5% off
$0.79/each$0.83
100+10% off
$0.75/each$0.83
500+18% off
$0.68/each$0.83
1000+24% off
$0.63/each$0.83
DT04-2P-C015 - DT Series
Regular price
$0.83
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector seal code | E Seal |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | .67 in |
| Product length | 1.708 in |
| Product width | .675 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .215 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1000 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
