Deutsch | SKU:
DT04-2P-N006
Sold out

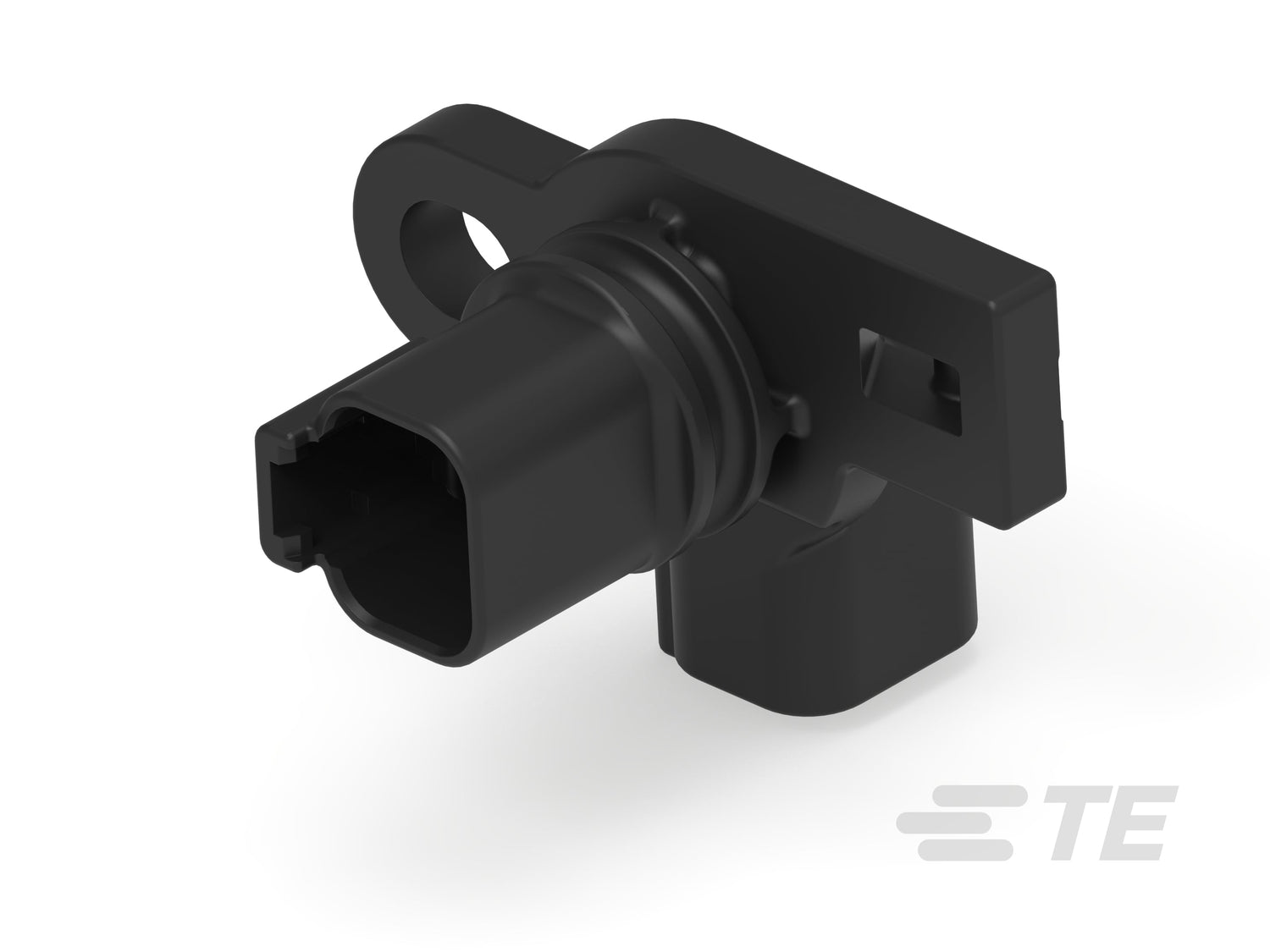

DT04-2P-N006 Deutsch DT 2-Way Receptacle Housing – Bussed Connector
DT04-2P-N006 is a genuine Deutsch connector from the DEUTSCH DT range, built in a 2 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH DT
- Positions: 2
- Ingress protection: IP6K9K
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$17.52/each
Lead time on request
50+5% off
$16.69/each$17.52
Lead time on request
100+9% off
$15.90/each$17.52
Lead time on request
500+14% off
$15.14/each$17.52
Lead time on request
1000+18% off
$14.42/each$17.52
Lead time on request
Product Specifications
| Cable exit angle | 90 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Connector height | 1.915 in |
| Product length | 1.635 in |
| Product width | 2.25 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .215 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | Not Tested |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 200 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | No |
