Deutsch | SKU:
DT04-3P-C017

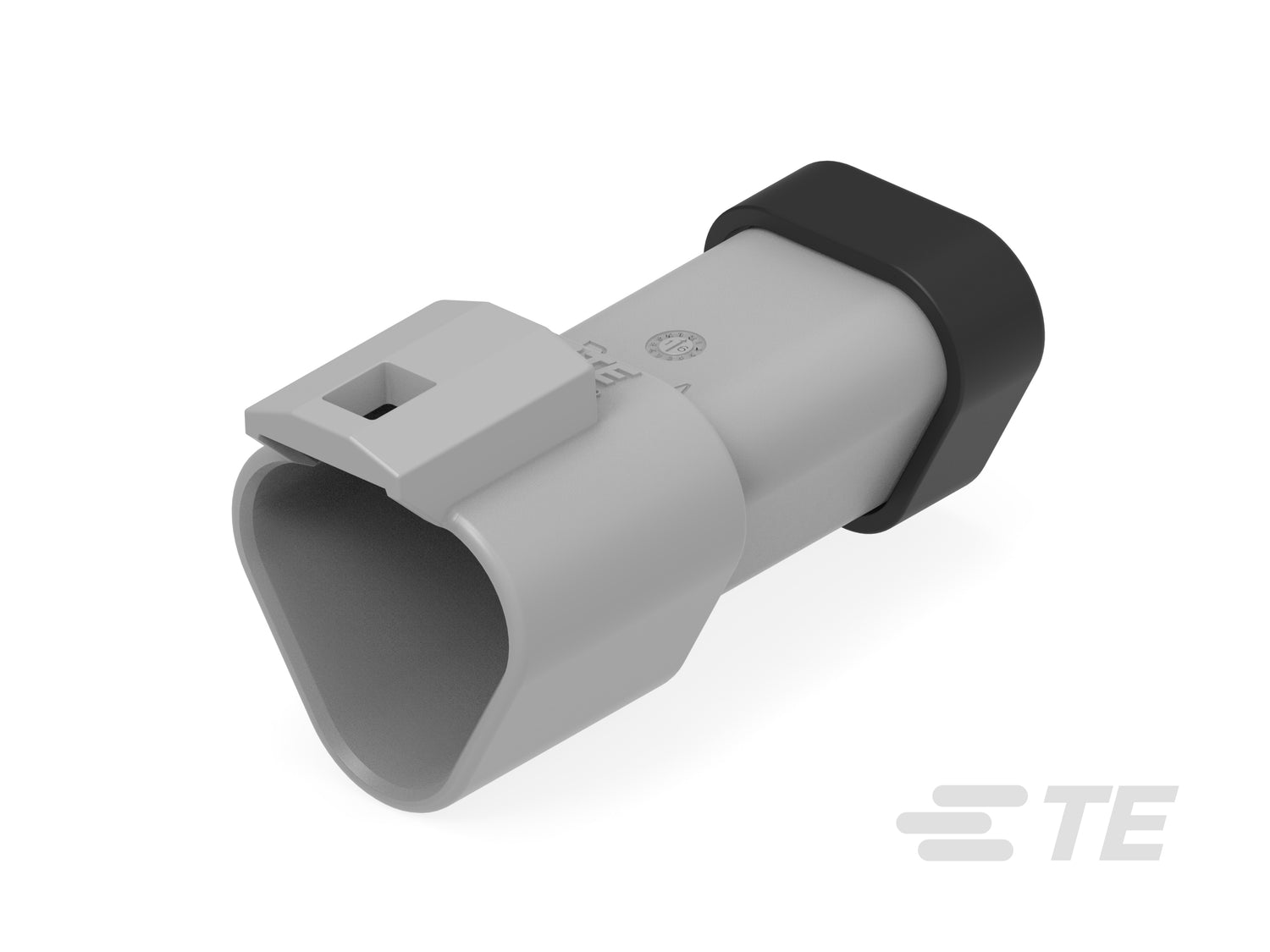

DT04-3P-C017 - DT Series
DT04-3P-C017 is a genuine Deutsch connector from the DEUTSCH DT range, built in a 3 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH DT
- Positions: 3
- Ingress protection: IP6K9K
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$2.02/each
50+5% off
$1.92/each$2.02
100+10% off
$1.82/each$2.02
500+19% off
$1.64/each$2.02
1000+25% off
$1.52/each$2.02
DT04-3P-C017 - DT Series
Regular price
$2.02
Unit price
Unavailable
Product Specifications
| Primary product color | Gray |
| Blank cavity position | 3 |
| Connector modification | Solid Rear Grommet, End Cap |
| Number of positions | 3 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Connector height | .973 in |
| Product length | 1.758 in |
| Product width | .832 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .341 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 800 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Triangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | No |
