Deutsch | SKU:
DT04-3P-CL03

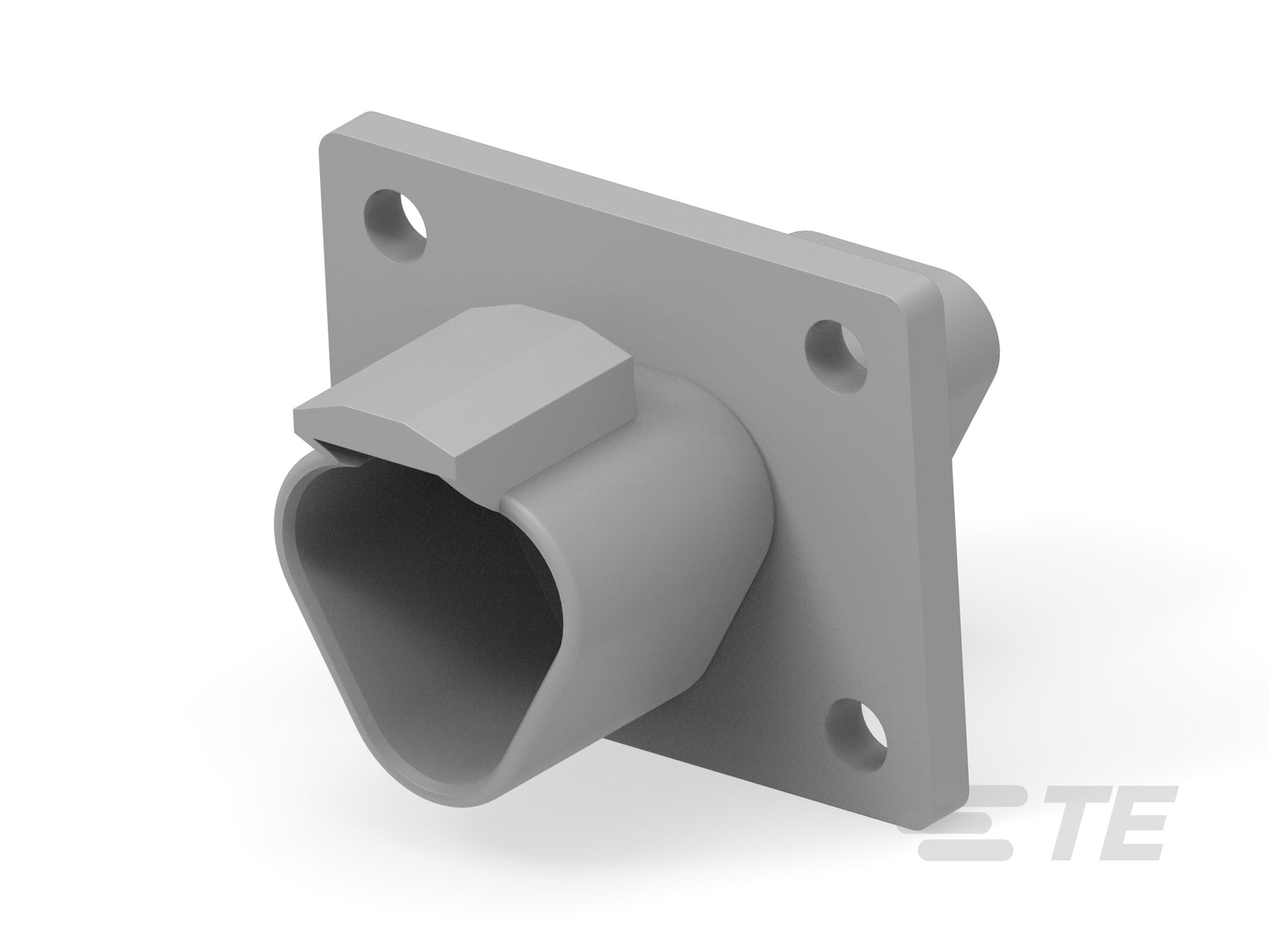

DT04-3P-CL03 Deutsch DT 3-Way Receptacle Housing – Welded Flange, E-Seal
DT04-3P-CL03 is a DEUTSCH DT 3-way receptacle housing for pin contacts, configured with E-seal and welded flange.
The sealed housing suits vehicle and equipment harnesses where cavity count, contact orientation and housing configuration must match the mating connector and wiring design.
Use DT04-3P-CL03 where the required configuration is a DEUTSCH DT 3-position pin receptacle with E-seal and welded flange.
- Series: DEUTSCH DT
- Connector: Receptacle
- Positions: 3
- Contact type: Pin
- Seal: E-Seal
- Features: Welded Flange
- Modification: CL03
Quantity price breaks
1+
$7.42/each
50+3% off
$7.21/each$7.42
100+6% off
$6.97/each$7.42
DT04-3P-CL03 Deutsch DT 3-Way Receptacle Housing – Welded Flange, E...
Regular price
$7.42
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Welded Flange |
| Connector seal code | E Seal |
| Number of positions | 3 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .062 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.24 in |
| Product length | 1.6 in |
| Product width | 1.67 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF15 |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Triangular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
