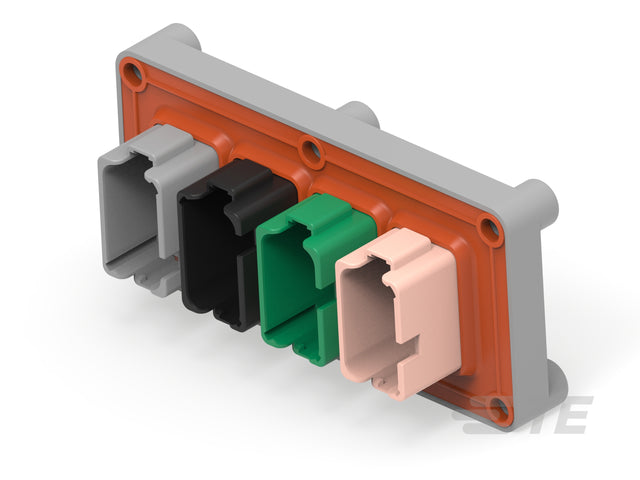

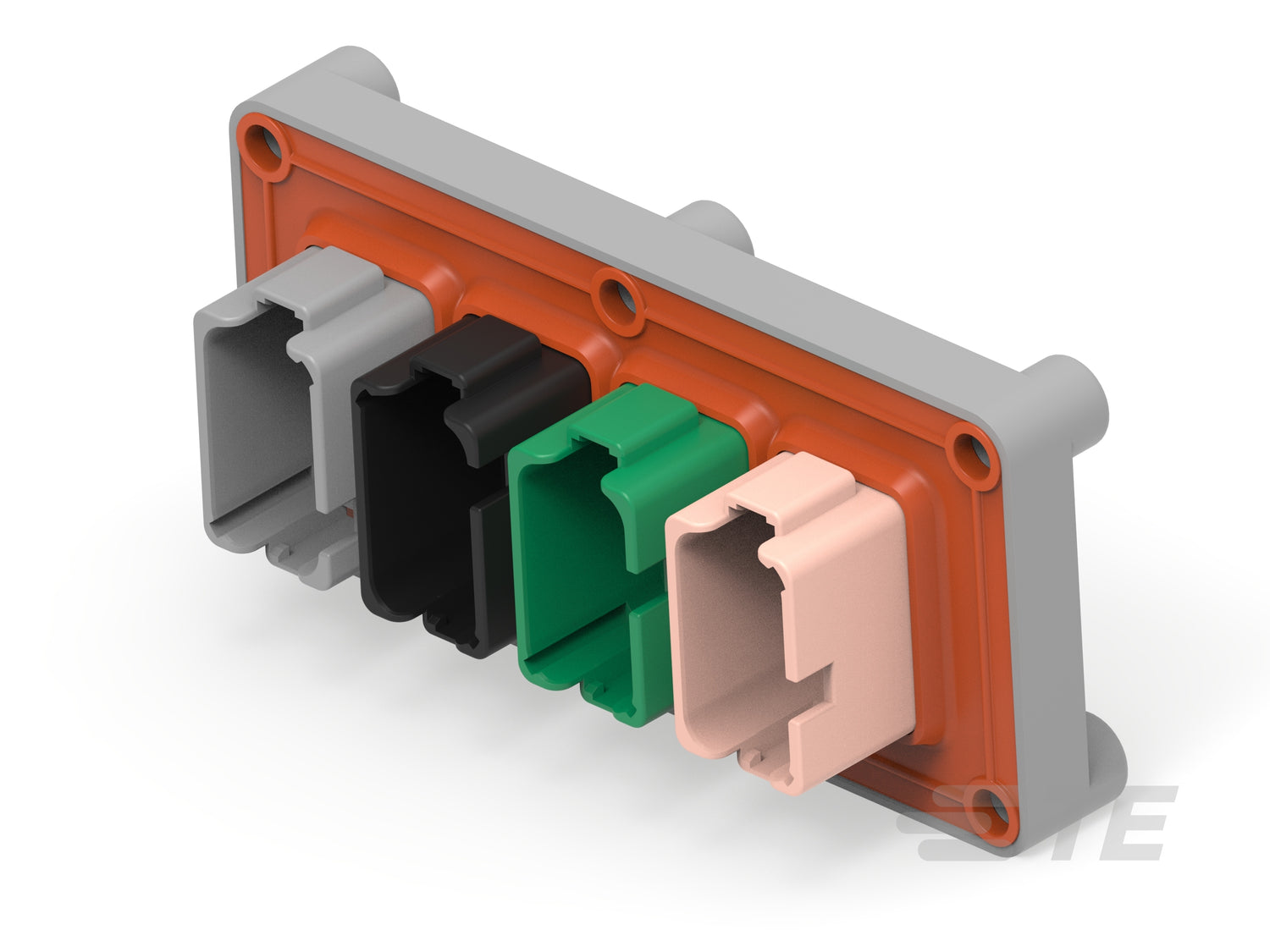

DT04-48P-B016 Deutsch DT 48-Way Receptacle Housing – Bussed (4 x 12-Pin)
DT04-48P-B016 is a DEUTSCH DT 48-position flange-mount receptacle housing for Size 16 pin contacts, with a gray sealed body and N-seal configuration.
The panel-mount, wire-to-wire housing includes terminal position assurance, supports up to 13 A per contact and provides IP68/IP6K9K protection when correctly assembled.
Choose DT04-48P-B016 when the design requires the large 48-way DT receptacle with flange mounting and male terminals; it is not interchangeable with the smaller standard DT cavity-count housings.
Specifications
- Series: DEUTSCH DT
- Connector: Flange-mount receptacle housing
- Positions: 48
- Contact type: Pin
- Contact size: Size 16
- Seal: N-Seal
- Mounting: Panel mount / flange
- Color: Gray
- IP rating: IP68 / IP6K9K
Quantity price breaks
16 in stock — lead time on request for 50+
16 in stock — lead time on request for 100+
DT04-48P-B016 Deutsch DT 48-Way Receptacle Housing – Bussed (4 x 12...
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Number of positions | 48 |
| Number of rows | 8 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.993 in |
| Product length | 5.35 in |
| Product width | 2.54 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .359 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | Without |
| Mating alignment type | Not Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 60 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
