Deutsch | SKU:
DT04-4P-E008

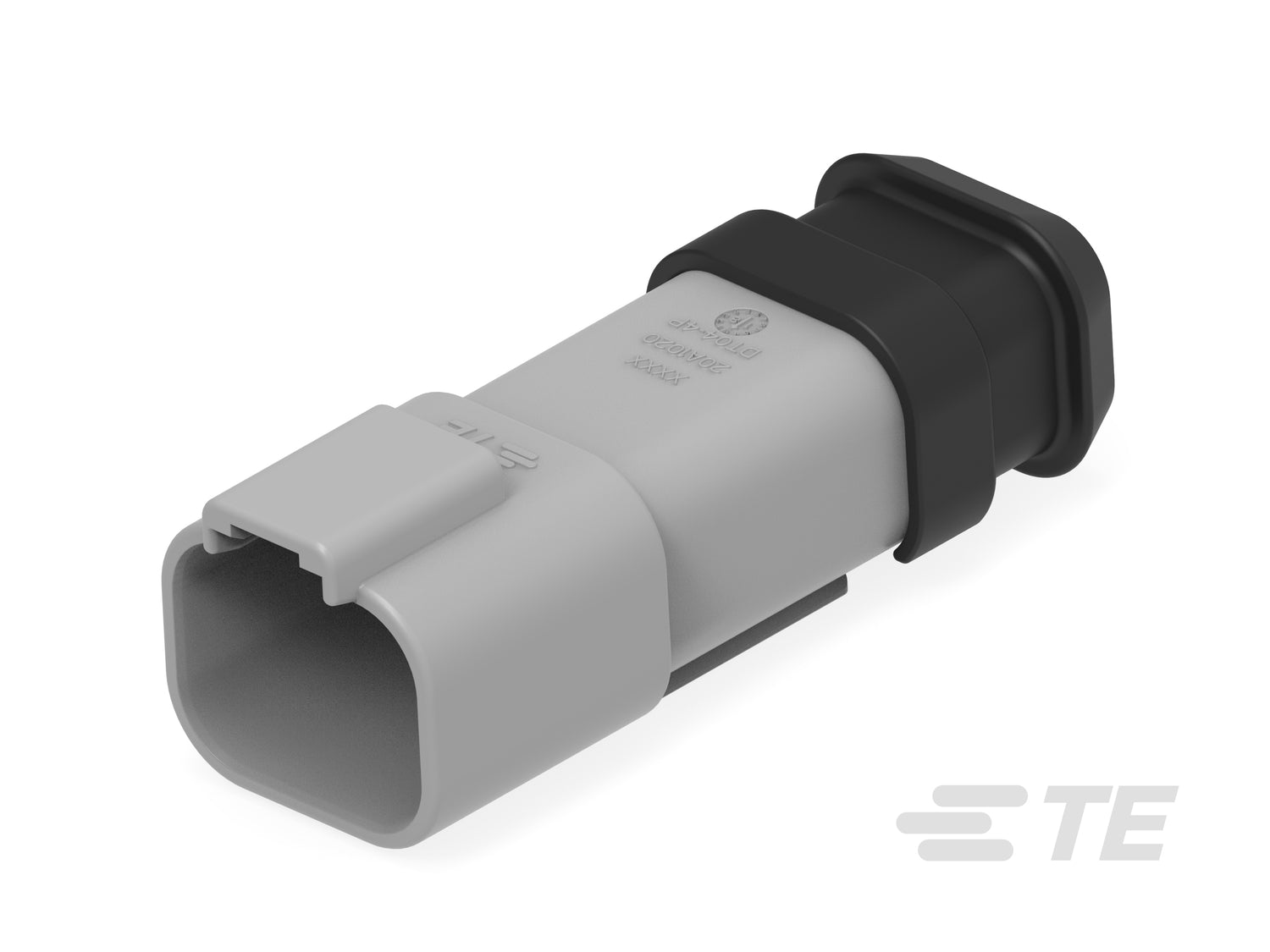

DT04-4P-E008 - DT Series
DT04-4P-E008 is a DEUTSCH DT connector built for reliable performance in demanding environments.
Used across heavy duty vehicles and exposed harness runs where durability matters. A straightforward solution when you need consistent performance without compromise.
Quantity price breaks
1+
$6.46/each
50+5% off
$6.14/each$6.46
100+10% off
$5.83/each$6.46
500+19% off
$5.25/each$6.46
DT04-4P-E008 - DT Series
Regular price
$6.46
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Shrink Boot Adapter |
| Number of positions | 4 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | .776 in |
| Product length | 2.296 in |
| Product width | .82 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .176 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
