Deutsch | SKU:
DT04-4P-LE11
Sold out

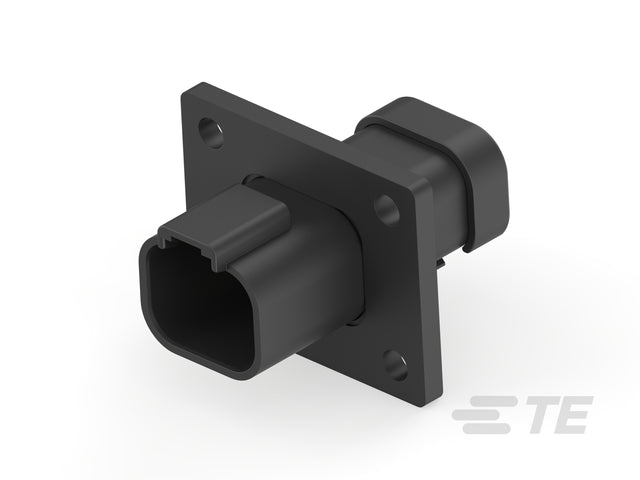

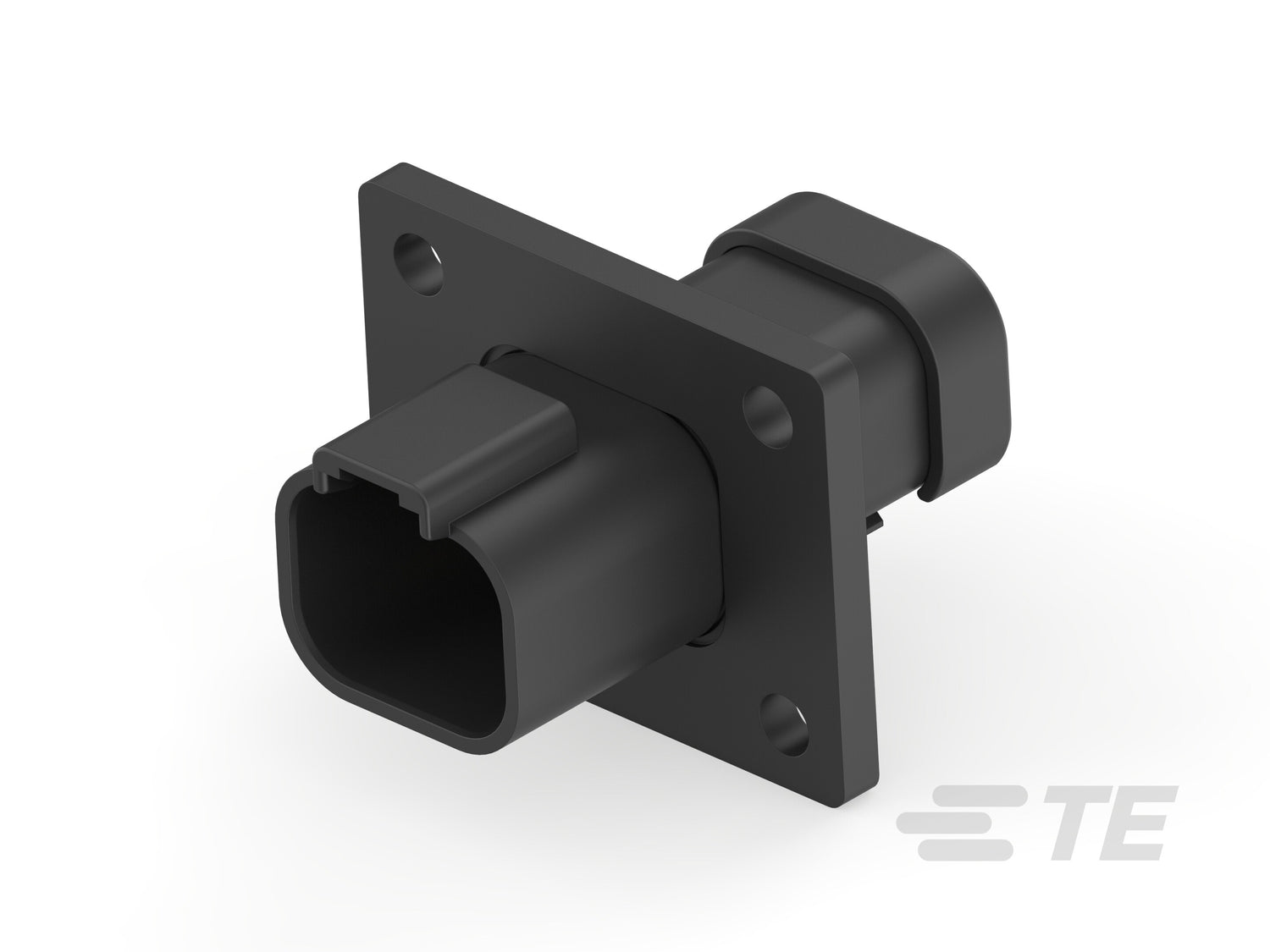

DT04-4P-LE11 Deutsch DT 4-Way Receptacle Housing – Sealed Flange, E-Seal, Shrink Boot Adapter
DT04-4P-LE11 is a genuine Deutsch connector from the DEUTSCH DT range, built in a 4 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH DT
- Positions: 4
- Ingress protection: IP6K9K
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$11.36/each
Lead time on request
50+1% off
$11.29/each$11.36
Lead time on request
100+5% off
$10.75/each$11.36
Lead time on request
Technical Documentation
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Welded Flange, End Cap |
| Number of positions | 4 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.25 in |
| Product length | 1.868 in |
| Product width | 1.595 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .176 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
