DT04-6P-CL09

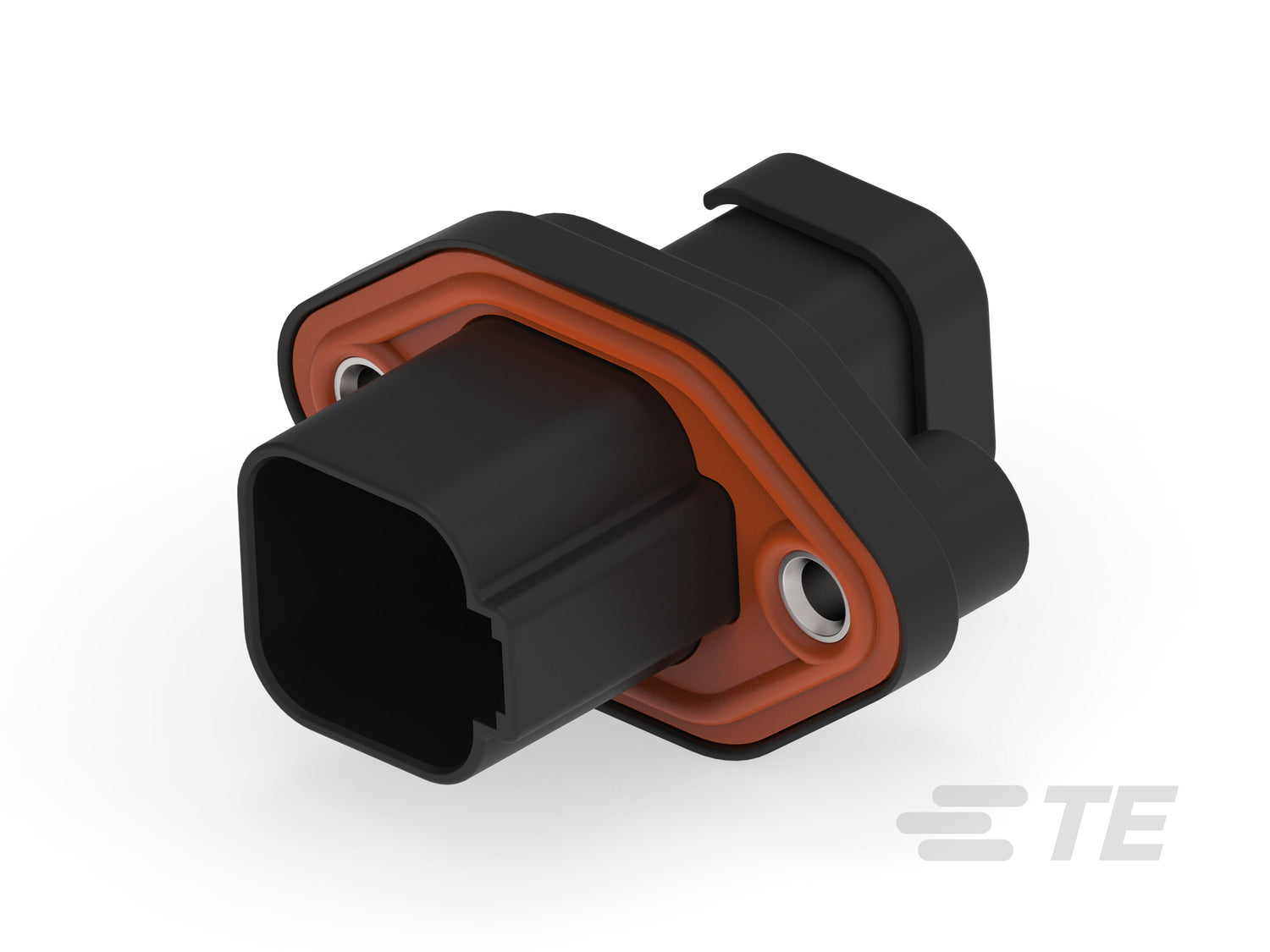

DT04-6P-CL09 Deutsch DT 6-Way Flange Receptacle - Pins, Sealed End Cap
DT04-6P-CL09 Deutsch DT 6-Way Flange Receptacle is a black sealed panel-mount housing for six Size 16 pin contacts, with a sealed flange and end-cap configuration.
The two-row receptacle supports 12/24/48 V vehicle architectures and sealed wire-to-wire connections, with a reduced-wire-seal product drawing for the CL09 configuration.
Choose DT04-6P-CL09 when the installation requires a six-way DT pin receptacle with panel flange and sealed end cap, rather than the standard free-hanging receptacle housing.
Specifications
- Series: DEUTSCH DT
- Connector: Flange receptacle housing
- Positions: 6
- Contact type: Pin
- Contact size: Size 16
- Mounting: Panel / flange mount
- Modification: Sealed flange, end cap
- Color: Black
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$21.01/each
50+5% off
$20.01/each$21.01
100+9% off
$19.05/each$21.01
DT04-6P-CL09 Deutsch DT 6-Way Flange Receptacle - Pins, Sealed End Cap
Regular price
$21.01
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Sealed Flange, End Cap |
| Number of positions | 6 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 2.155 in |
| Product length | 1.868 in |
| Product width | 1.22 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .15 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 200 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
