Deutsch | SKU:
DT04-6P-E003

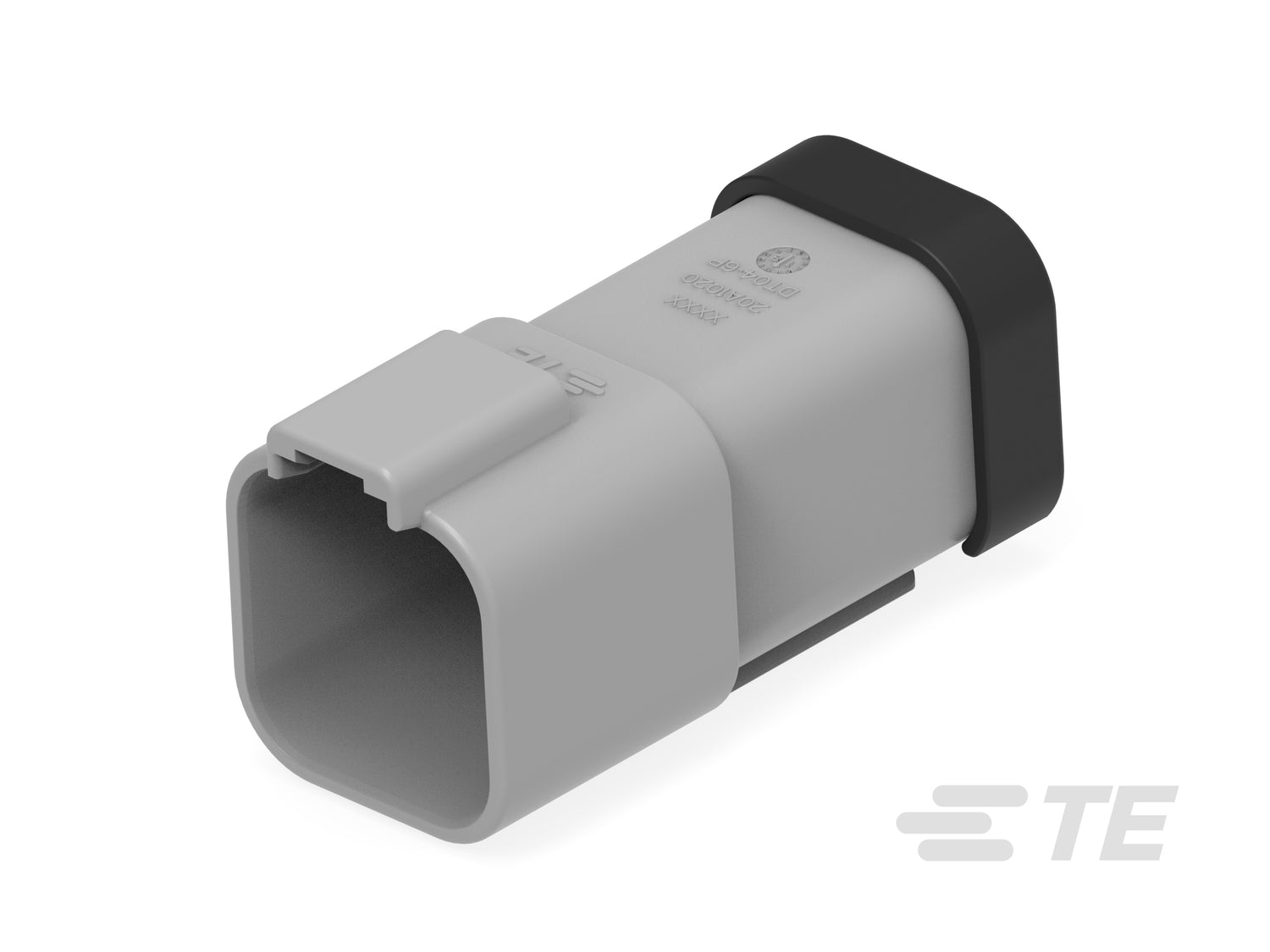

DT04-6P-E003 Deutsch DT 6-Way Receptacle Housing – Gray
DT04-6P-E003 is a DEUTSCH DT 6-way receptacle housing for pin contacts.
The sealed housing suits vehicle and equipment harnesses where cavity count, contact orientation and housing configuration must match the mating connector and wiring design.
Use DT04-6P-E003 where the required configuration is a DEUTSCH DT 6-position pin receptacle.
- Series: DEUTSCH DT
- Connector: Receptacle
- Positions: 6
- Contact type: Pin
- Modification: E003
Quantity price breaks
1+
$3.42/each
50+27% off
$2.49/each$3.42
100+31% off
$2.37/each$3.42
DT04-6P-E003 Deutsch DT 6-Way Receptacle Housing – Gray
Regular price
$3.42
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | End Cap |
| Number of positions | 6 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | .951 in |
| Product length | 1.868 in |
| Product width | .82 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .15 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
